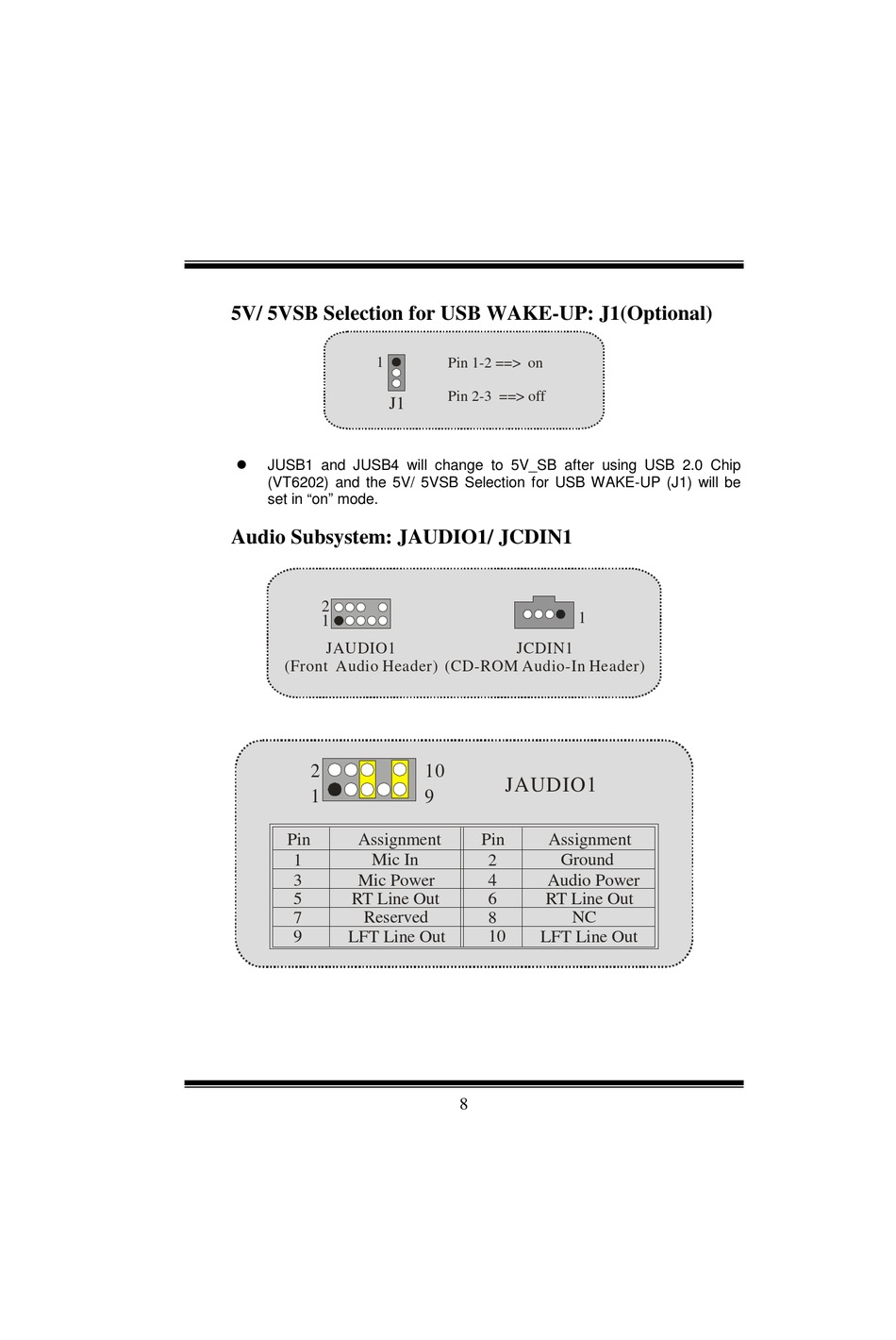

5V/ 5VSB Selection for USB WAKE-UP: J1(Optional)
1
J1
#
JUSB1 and JUSB4 will change to 5V_SB after using USB 2.0 Chip
(VT6202) and the 5V/ 5VSB Selection for USB WAKE-UP (J1) will be
set in "on" mode.
Audio Subsystem: JAUDIO1/ JCDIN1
2
1
JAUDIO1
(Front Audio Header)
2
2
1
Pin Assignment
Mic In
1
3 Mic Power
5 RT Line Out
Reserved
7
9 LFT Line Out
Pin 1-2 ==> on
Pin 2-3 ==> off
1
JCDIN1
(CD-ROM Audio-In Header)
10
JAUDIO1
9
Pin Assignment
Ground
2
4 Audio Power
6 RT Line Out
NC
8
10 LFT Line Out
8
