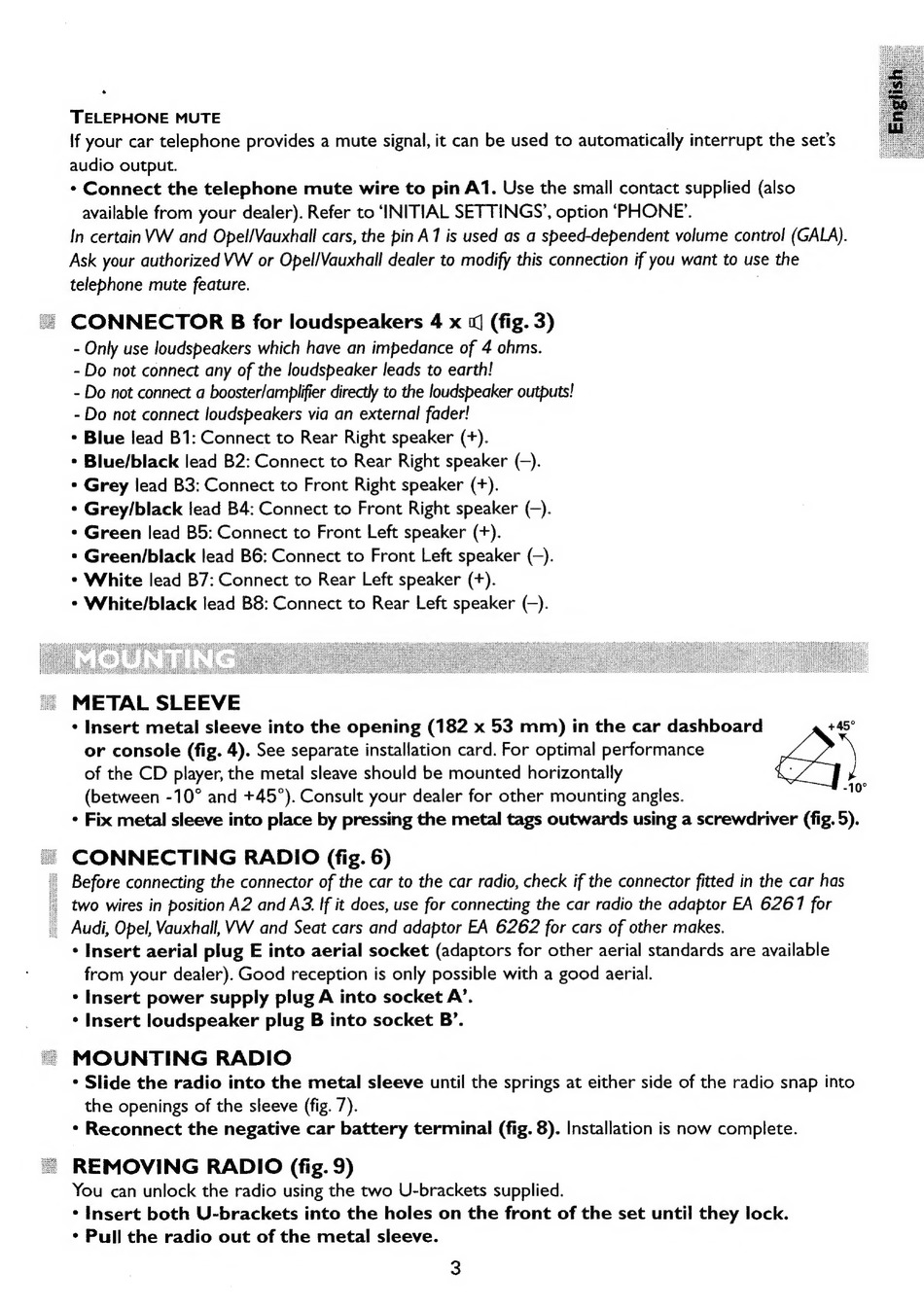

TELEPHONE MUTE
If your car telephone provides a mute signal, it can be used to automatically interrupt the set's
audio output.
* Connect the telephone mute wire to pin A1. Use the small contact supplied (also
available from your dealer). Refer to 'INITIAL SETTINGS', option 'PHONE'.
In certain VW and Opel/Vauxhall cars, the pin A7 is used as a speed-dependent volume control (GALA).
Ask your authorized VW or Opel/Vauxhall dealer to modify this connection if you want to use the
telephone mute feature.
CONNECTOR B for loudspeakers 4 x (fig. 3)
- Only use loudspeakers which have an impedance of 4 ohms.
- Do not connect any of the loudspeaker leads to earth!
- Do not connect a booster/amplifier directly to the loudspeaker outputs!
- Do not connect loudspeakers via an external fader!
* Blue lead B1: Connect to Rear Right speaker (+).
* Blue/black lead B2: Connect to Rear Right speaker (-).
* Grey lead B3: Connect to Front Right speaker (+).
* Grey/black lead B4: Connect to Front Right speaker (—).
* Green lead B5: Connect to Front Left speaker (+).
* Green/black lead B6: Connect to Front Left speaker (—).
* White lead B7: Connect to Rear Left speaker (+).
* White/black lead B8: Connect to Rear Left speaker (—).
METAL SLEEVE
* Insert metal sleeve into the opening (182 x 53 mm) in the car dashboard +45°
or console (fig. 4). See separate installation card. For optimal performance
of the CD player, the metal sleave should be mounted horizontally
(between -10° and +45°). Consult your dealer for other mounting angles.
* Fix metal sleeve into place by pressing the metal tags outwards using a screwdriver (fig. 5).
CONNECTING RADIO (fig. 6)
Before connecting the connector of the car to the car radio, check if the connector fitted in the car has
two wires in position A2 and A3. If it does, use for connecting the car radio the adaptor EA 6267 for
Audi, Opel, Vauxhall, WW and Seat cars and adaptor EA 6262 for cars of other makes.
* Insert aerial plug E into aerial socket (adaptors for other aerial standards are available
from your dealer). Good reception is only possible with a good aerial.
* Insert power supply plug A into socket A'.
* Insert loudspeaker plug B into socket B'.
MOUNTING RADIO
* Slide the radio into the metal sleeve until the springs at either side of the radio snap into
the openings of the sleeve (fig. 7).
* Reconnect the negative car battery terminal (fig. 8). Installation is now complete.
REMOVING RADIO (fig. 9)
You can unlock the radio using the two U-brackets supplied.
* Insert both U-brackets into the holes on the front of the set until they lock.
* Pull the radio out of the metal sleeve.
3
-10°
