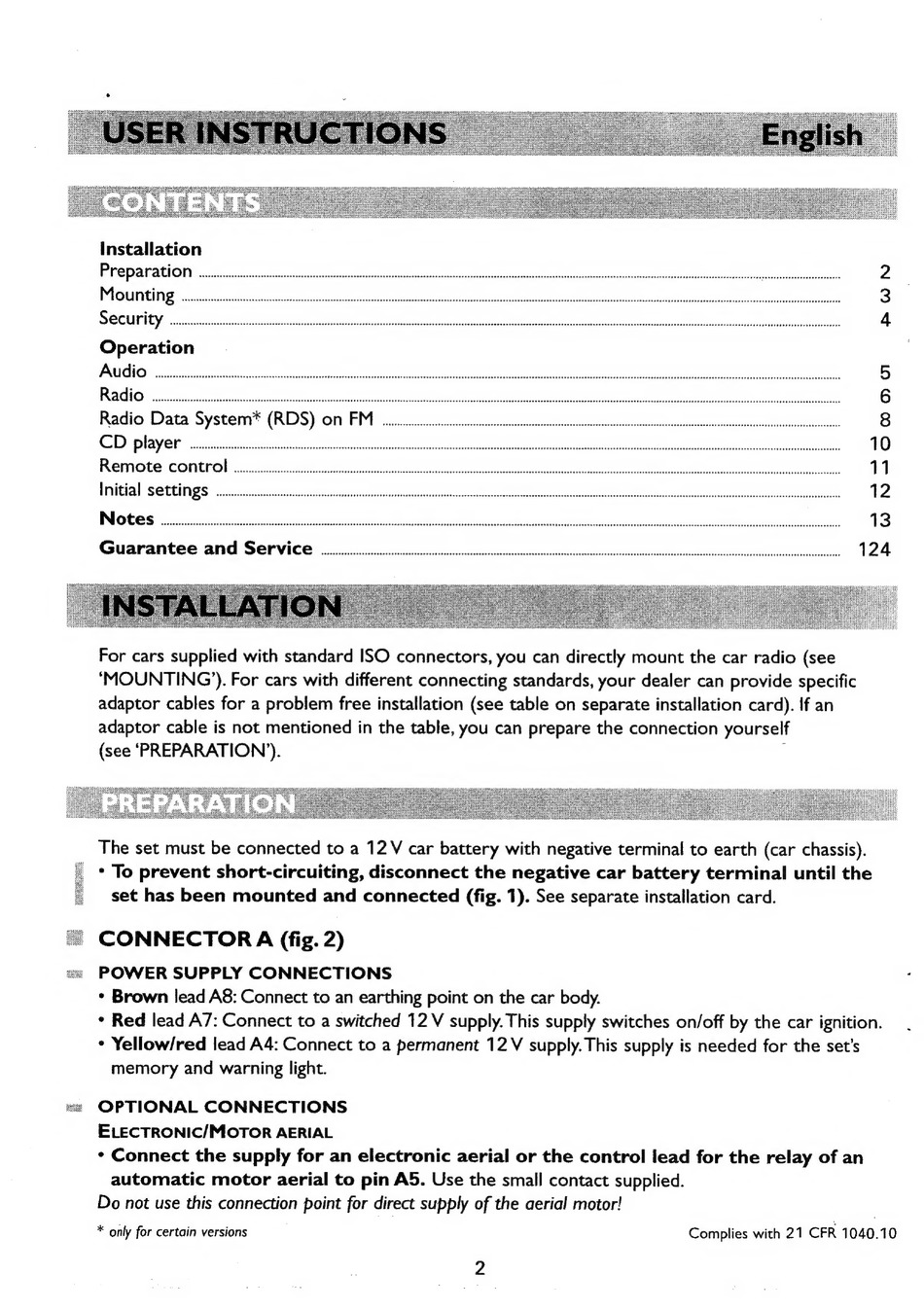

Philips RC609 RDS Bedienungsanleitung Seite 2

Installation
PGP aWatl OF srt ceteiecattsi neat enue ac aaetr ea dat tal Senate etl iia at ial eae le Ae aunts Eeeicecahes 2
[id C0150 | <1 3) So Rese on ae a es OTS CPOE RC LRt DAS on ev RE Ne eee TEE err 3
SSG Ucn IN ce aR he a a at a tent tte at 4
Operation
PCN shi ca cesta aN San Na eee ae eal teh allasadant nal 5
FRU seca ht ett ne Seca tc te Sitch Sy 6
Radio Data System (RDS) On FM u u smsnsetnnustnnnsnnnnnsstnnnneenteunnsninnnnentnnetnnsnnniiinneineeeete 8
OD Bay Si sas oes ros Rin ectcetecth cheat cee aoe Pats ee ea Stace resh mite aT Tat ce ha liawiauantaas 10
FREI TE COPECO isc arene atten sicaead dec mash etasSinlionc nora stasbashite ty all ne adh eah BRED ae ccc lye tao 11
DIUM L ea) SS ENS cane areas acetate clams chicas ae eat eae sntes 12
For cars supplied with standard ISO connectors, you can directly mount the car radio (see
'MOUNTING'). For cars with different connecting standards, your dealer can provide specific
adaptor cables for a problem free installation (see table on separate installation card). If an
adaptor cable is not mentioned in the table, you can prepare the connection yourself
(see 'PREPARATION'). :
The set must be connected to a 12 V car battery with negative terminal to earth (car chassis).
* To prevent short-circuiting, disconnect the negative car battery terminal until the
set has been mounted and connected (fig. 1). See separate installation card.
CONNECTOR A (fig. 2)
POWER SUPPLY CONNECTIONS
* Brown lead A8: Connect to an earthing point on the car body.
* Red lead A7: Connect to a switched 12 V supply. This supply switches on/off by the car ignition.
* Yellow/red lead A4: Connect to a permanent 12 V supply. This supply is needed for the set's
memory and warning light.
OPTIONAL CONNECTIONS
ELECTRONIC/MOTOR AERIAL
* Connect the supply for an electronic aerial or the control lead for the relay of an
automatic motor aerial to pin A5. Use the small contact supplied.
Do not use this connection point for direct supply of the aerial motor!
* only for certain versions Complies with 21 CFR 1040.10
