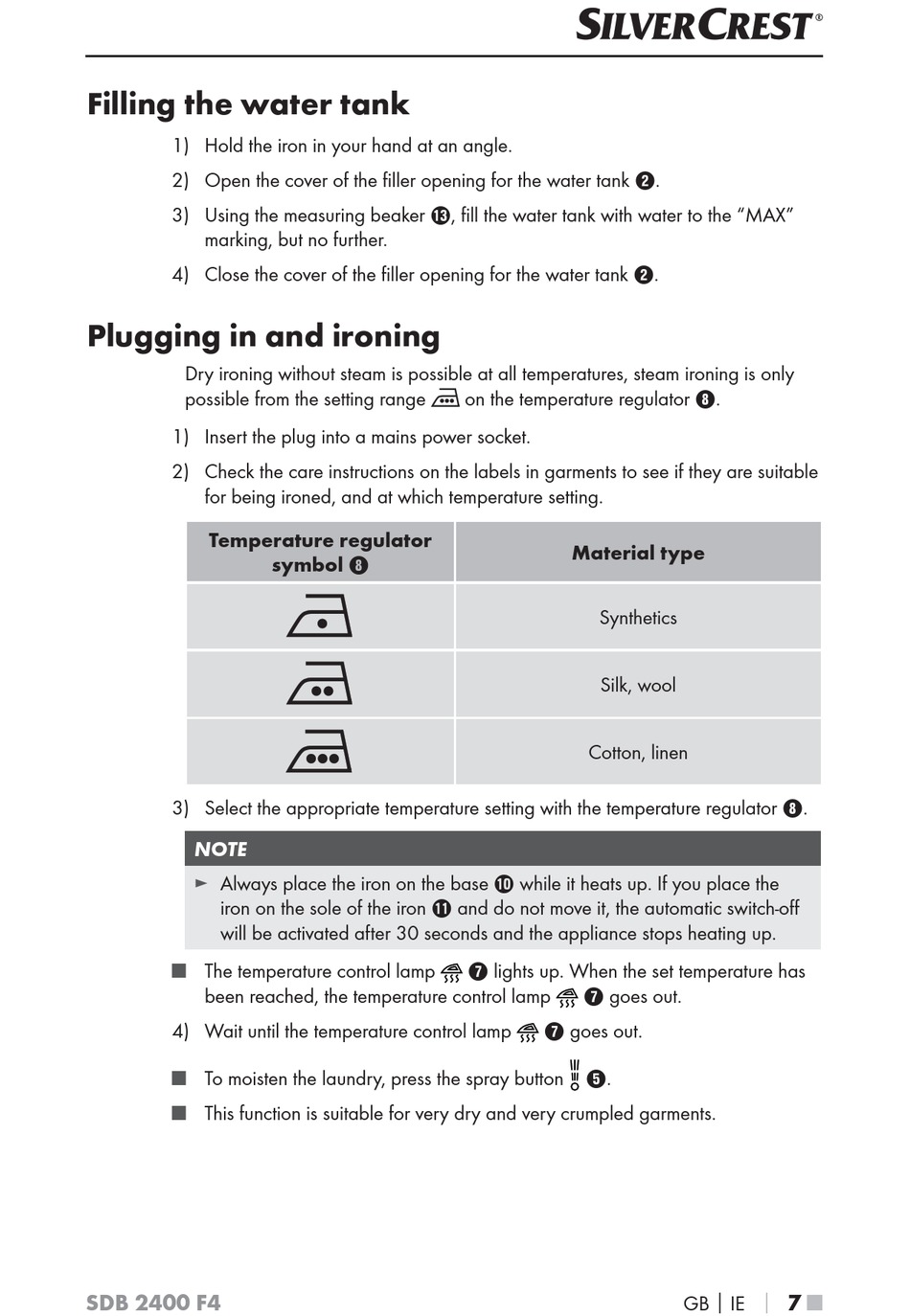

Silvercrest SDB 2400 F4 Kurzanleitung Seite 10

Filling the water tank
1) Hold the iron in your hand at an angle.
2) Open the cover of the filler opening for the water tank 2.
3) Using the measuring beaker e, fill the water tank with water to the "MAX"
marking, but no further.
4) Close the cover of the filler opening for the water tank 2.
Plugging in and ironing
Dry ironing without steam is possible at all temperatures, steam ironing is only
possible from the setting range
1) Insert the plug into a mains power socket.
2) Check the care instructions on the labels in garments to see if they are suitable
for being ironed, and at which temperature setting.
Temperature regulator
3) Select the appropriate temperature setting with the temperature regulator 8.
NOTE
Always place the iron on the base 0 while it heats up. If you place the
►
iron on the sole of the iron q and do not move it, the automatic switch-off
will be activated after 30 seconds and the appliance stops heating up.
■ The temperature control lamp
been reached, the temperature control lamp
4) Wait until the temperature control lamp
■ To moisten the laundry, press the spray button
■ This function is suitable for very dry and very crumpled garments.
SDB 2400 F4
symbol 8
on the temperature regulator 8.
Material type
Synthetics
Silk, wool
Cotton, linen
7 lights up. When the set temperature has
7 goes out.
7 goes out.
5.
GB │ IE │
7 ■
