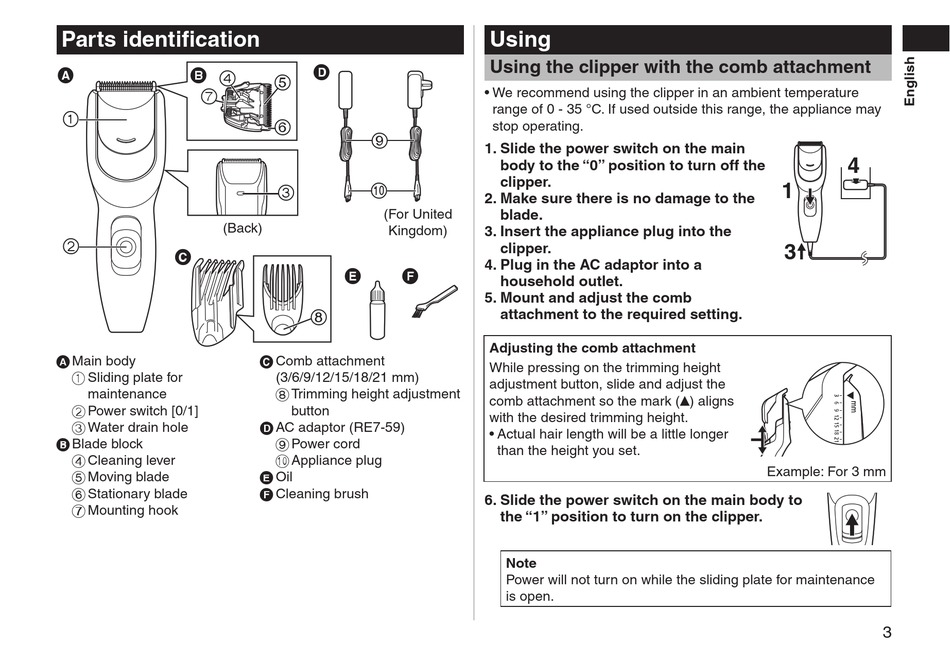

Parts identification
(Back)
A Main body
1 Sliding plate for
maintenance
2 Power switch [0/1]
3 Water drain hole
B Blade block
4 Cleaning lever
5 Moving blade
6 Stationary blade
7 Mounting hook
(For United
Kingdom)
C Comb attachment
(/6/9/12/15/18/21 mm)
8 Trimming height adjustment
button
D AC adaptor (RE7‑59)
9 Power cord
: Appliance plug
E Oil
F Cleaning brush
Using
Using the clipper with the comb attachment
• We recommend using the clipper in an ambient temperature
range of 0 ‑ 5 °C. If used outside this range, the appliance may
stop operating.
1. Slide the power switch on the main
body to the "0" position to turn off the
clipper.
2. Make sure there is no damage to the
blade.
3. Insert the appliance plug into the
clipper.
4. Plug in the AC adaptor into a
household outlet.
5. Mount and adjust the comb
attachment to the required setting.
Adjusting the comb attachment
While pressing on the trimming height
adjustment button, slide and adjust the
comb attachment so the mark ( ) aligns
with the desired trimming height.
• Actual hair length will be a little longer
than the height you set.
6. Slide the power switch on the main body to
the "1" position to turn on the clipper.
Note
Power will not turn on while the sliding plate for maintenance
is open.
4
1
3
Example: For  mm
