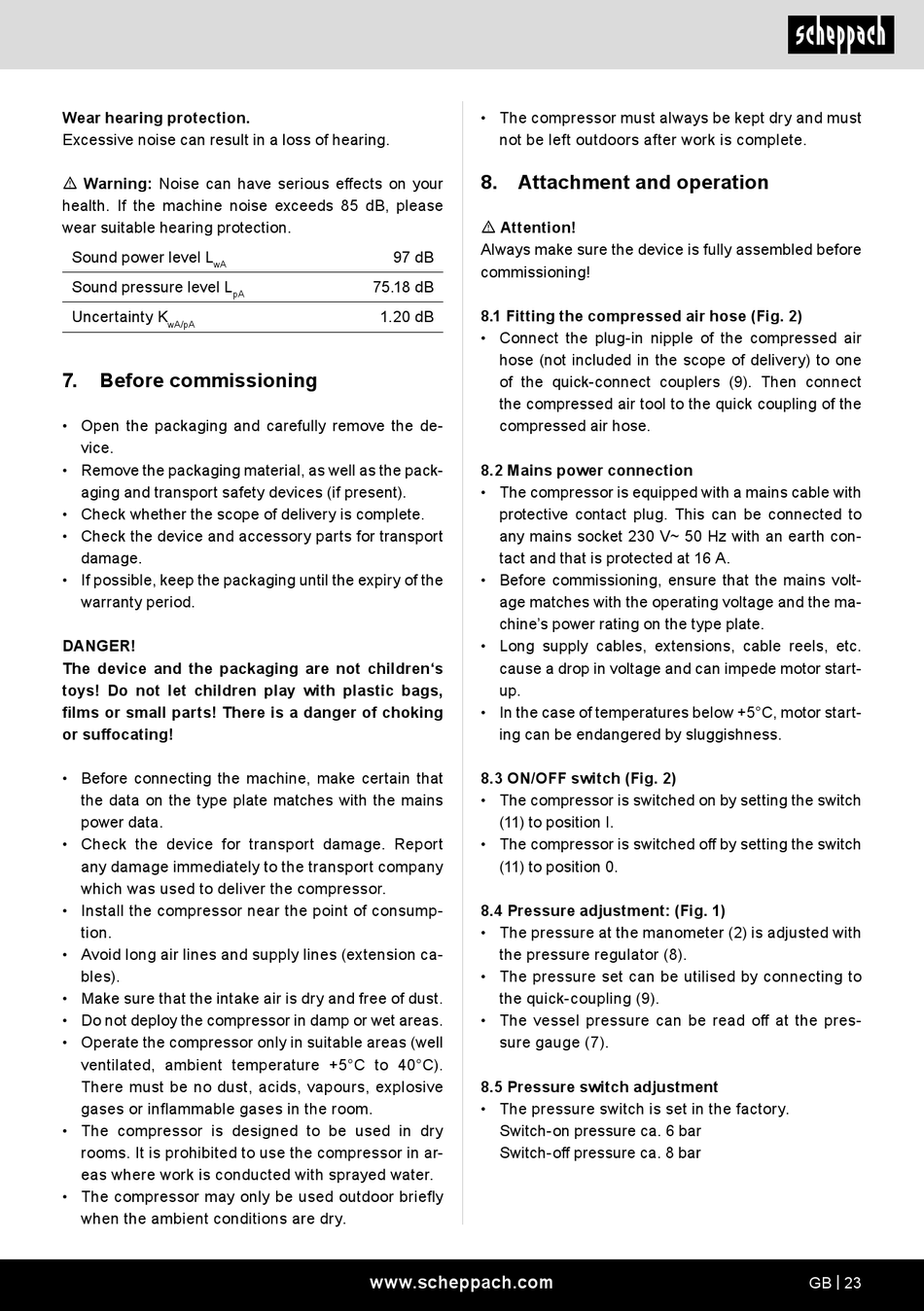

Scheppach HC10-Twin Originalbetriebsanleitung Seite 23

Wear hearing protection.
Excessive noise can result in a loss of hearing.
m Warning: Noise can have serious effects on your
health. If the machine noise exceeds 85 dB, please
wear suitable hearing protection.
Sound power level L
wA
Sound pressure level L
pA
Uncertainty K
wA/pA
7. Before commissioning
• Open the packaging and carefully remove the de-
vice.
• Remove the packaging material, as well as the pack-
aging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport
damage.
• If possible, keep the packaging until the expiry of the
warranty period.
DANGER!
The device and the packaging are not children's
toys! Do not let children play with plastic bags,
films or small parts! There is a danger of choking
or suffocating!
• Before connecting the machine, make certain that
the data on the type plate matches with the mains
power data.
• Check the device for transport damage. Report
any damage immediately to the transport company
which was used to deliver the compressor.
• Install the compressor near the point of consump-
tion.
• Avoid long air lines and supply lines (extension ca-
bles).
• Make sure that the intake air is dry and free of dust.
• Do not deploy the compressor in damp or wet areas.
• Operate the compressor only in suitable areas (well
ventilated, ambient temperature +5°C to 40°C).
There must be no dust, acids, vapours, explosive
gases or inflammable gases in the room.
• The compressor is designed to be used in dry
rooms. It is prohibited to use the compressor in ar-
eas where work is conducted with sprayed water.
• The compressor may only be used outdoor briefly
when the ambient conditions are dry.
• The compressor must always be kept dry and must
not be left outdoors after work is complete.
8. Attachment and operation
m Attention!
Always make sure the device is fully assembled before
97 dB
commissioning!
75.18 dB
8.1 Fitting the compressed air hose (Fig. 2)
1.20 dB
• Connect the plug-in nipple of the compressed air
hose (not included in the scope of delivery) to one
of the quick-connect couplers (9). Then connect
the compressed air tool to the quick coupling of the
compressed air hose.
8.2 Mains power connection
• The compressor is equipped with a mains cable with
protective contact plug. This can be connected to
any mains socket 230 V~ 50 Hz with an earth con-
tact and that is protected at 16 A.
• Before commissioning, ensure that the mains volt-
age matches with the operating voltage and the ma-
chine's power rating on the type plate.
• Long supply cables, extensions, cable reels, etc.
cause a drop in voltage and can impede motor start-
up.
• In the case of temperatures below +5°C, motor start-
ing can be endangered by sluggishness.
8.3 ON/OFF switch (Fig. 2)
• The compressor is switched on by setting the switch
(11) to position I.
• The compressor is switched off by setting the switch
(11) to position 0.
8.4 Pressure adjustment: (Fig. 1)
• The pressure at the manometer (2) is adjusted with
the pressure regulator (8).
• The pressure set can be utilised by connecting to
the quick-coupling (9).
• The vessel pressure can be read off at the pres-
sure gauge (7).
8.5 Pressure switch adjustment
• The pressure switch is set in the factory.
Switch-on pressure ca. 6 bar
Switch-off pressure ca. 8 bar
