cause burns (comply with a safety distance of 0.5 m).
Ensure a sufficient ventilation of the device, maintain a free zone of 0.2 m around the device and never cover the
ventilation openings.
Never place the device on an unstable underground. Ensure that it does not fall down and cause injury.
The operating position of the device is horizontal so that the tank cannot spill when filling and in operation.
The device must be set up out of normal reach. If the fog machine is operated in an elevated location, make
sure no one can enter the space beneath it (danger of slipping and injury through hot fog liquid and its residues).
During installation or service work, the area below the place of setup must be cordoned off.
The setup area must be designed in such a way that it can support the tenfold rated load for at least one hour
without being deformed permanently.
All statutory regulations applicable in the respective country must be observed when setting up the device.
During mounting, all the relevant regulations (in particular BGV C1, formerly VGB 70 and EN 60598-2-17) must
be observed.
Set up the fog machine under observation of the above safety notes.
Loosen the two knurled screws at the fog outlet and align the fog exit as desired.
Tighten the two knurled screws again.
10 Electric connection
10.1 DMX Connection
You can operate a maximum of 32 devices in a DMX chain without overloading the controller. The maximum total
length of the DMX chain should not exceed 500 m.
Use of XLR microphone cables may cause interferences in the DMX signal transmission. In this case, use special
DMX high-frequency cables.
Only connect the device to a DMX controller with a DMX-512 protocol.
Connection of a DMX controller
1
Connect the DMX IN DMX input to the DMX controller output.
Use a screened XLR cable for this. The controller must have a free control channel.
Connect the DMX OUT output to the DMX IN input of the subsequent device. If the fog machine is the last or only

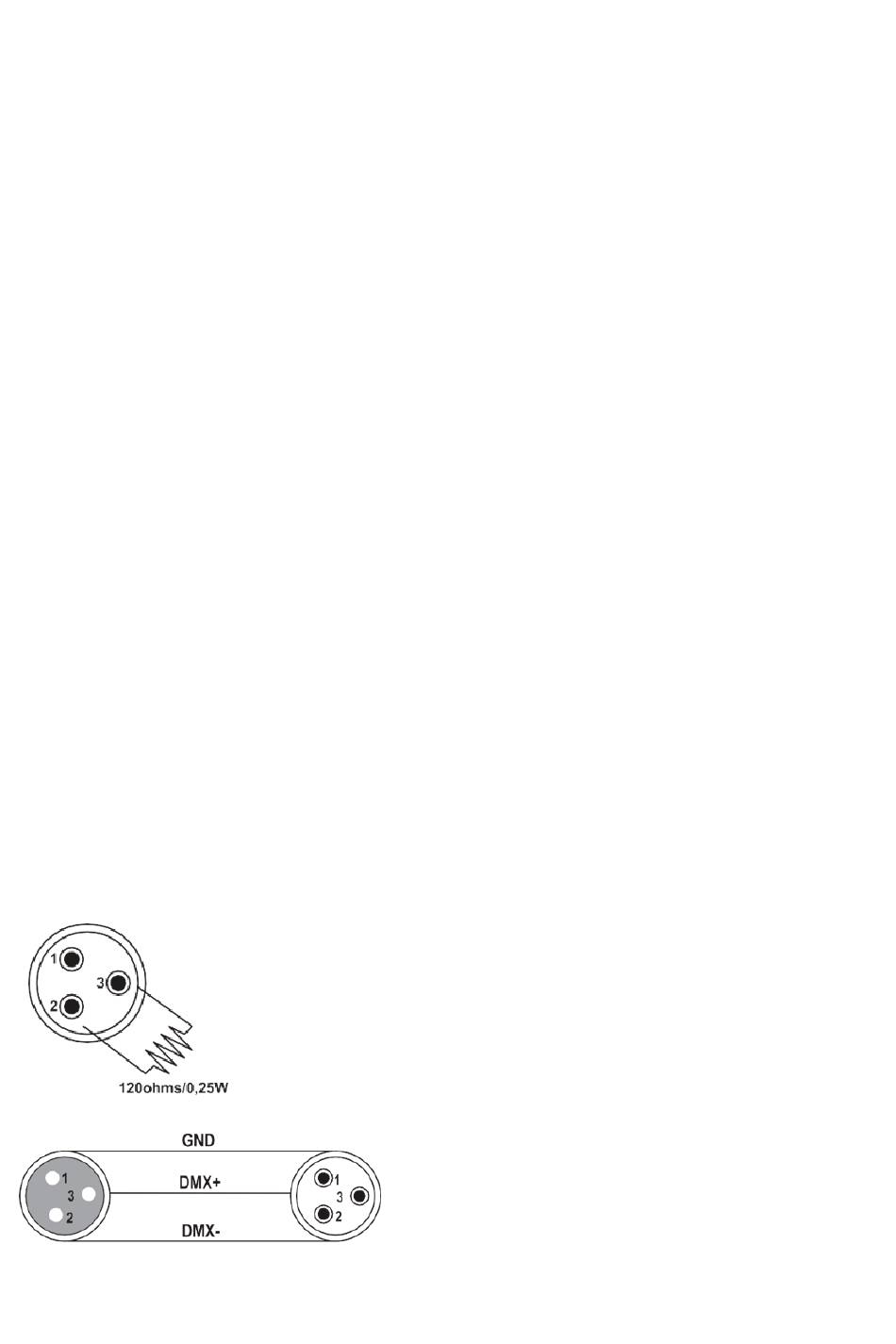

device in the DMX chain, insert a plug with a 120 Ohm/0.25 W terminator here (between Pin2 and Pin3).
Pin assignment of the DMX connection:
Pin1 = earth / Pin2 = (-) / Pin3 = (+).
Never connect the GND ground wire to the casing ground of
the fog machine, which might result in interference in signal
transmission caused by ground loops.
19
