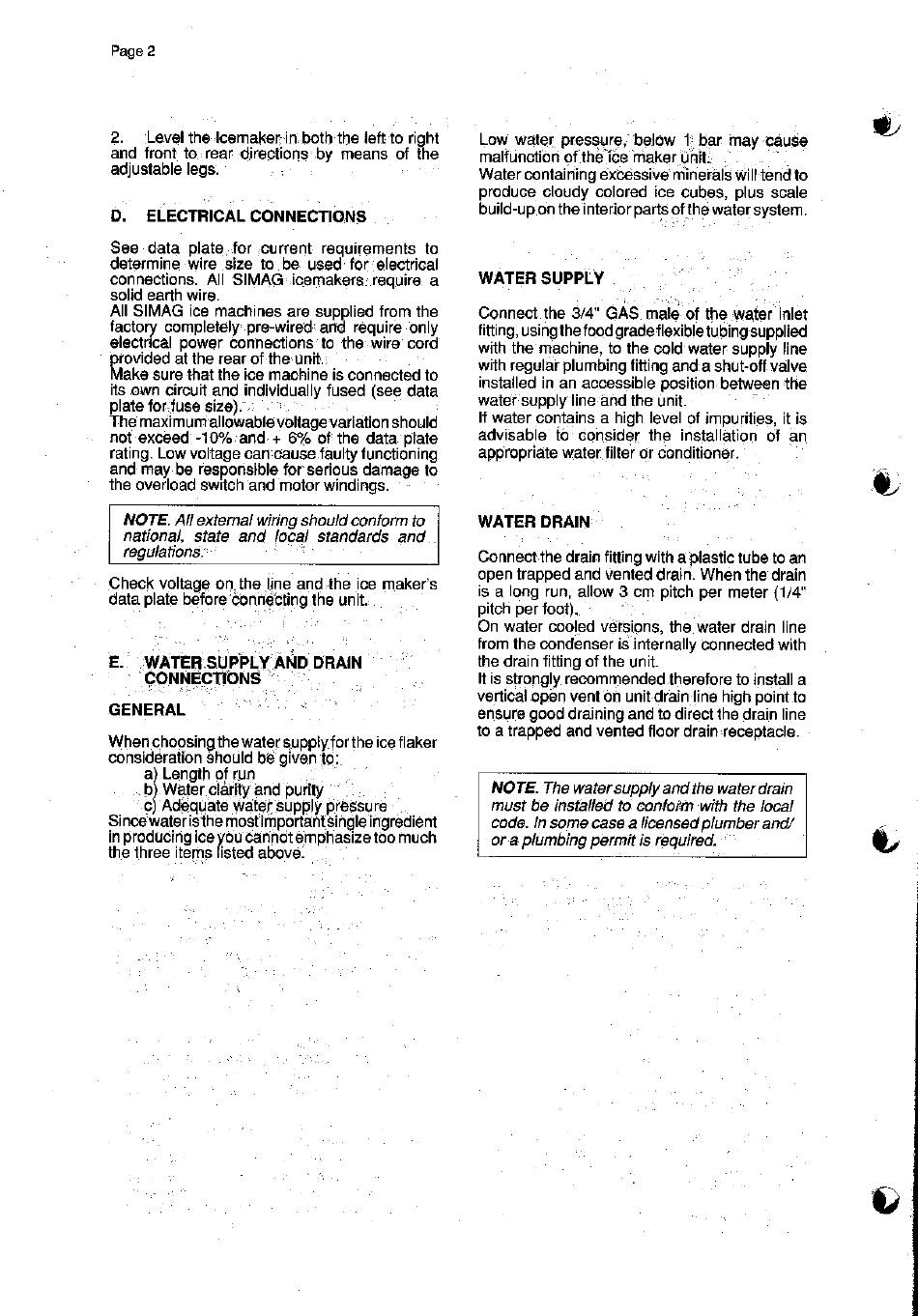

Page 2
2.
Level the Icemakerrin both the leftto right
and front to rear directions by means of the
adjustable legs.
D.
ELECTRICAL
CONNECTIONS
See data plate for current requirements
determine
wire size to be used
connections. All SIMAG icemakers. require a
solid earth wire.
All SIMAG ice machines are supplied from the
factory completelypre-wiredand require only
electncal power connections to the wire cord
provided at the rear of the unit.
Make sure that the ice machine
its own circuit and individually fused (see data
plate forqiuse size).
The maximum allowable voltagevariation should
not exceed -10% and, + 6% of the data plate
rating. Low voltage can:causefaulty functioning
and may be responsiblefor serious damageto
the overload switch and motor windings.
NOTE, All external wiring should conform to
national,
state and local standards
regujations.
Check voltage on the Jine and Mtheice maker's
data plate before 'connecting the unit
E.
WATER
SUPPLY
AND DRAIN
CONNECTIONS
GENERAL
When choosingthewater supply. f or the ice flaker
consideration should bé given to;
a) Length ot run
b Water clarity and purity
c Adequate water supply pressure
Sincewateristhe mostimportantsingleingredient
in producing ice voucannot emphasize too much
the three items fisted above.
Low water pressure, below 1. bar may cause
malfunction of the'iCe maker unit.
Water containing e*CéssivemineralsWilltend to
produce cloudy colored ice cubes, plus scale
build-upon the interior partsof_the water system.
to
for electrical
WATER SUPPLY
Connect the 3/4" GAS male of the water inlet
fitting, using the food grade flexible tubing supplied
with the machine, to the cold water supply line
with regular plumbing fitting and a shut-off valve
is connected
to
installed in an accessible position between the
water supply line änd the unit.
If water contains a high level of impurities, it is
advisable
appropriate water filter or conditioner.
WATER
and
Connectthe drain fitting with
open trapped and vented drain. When the drain
is a long run, allow 3 cm pitch per meter (1/4"
pitch per foot),
On water cooled versions, the water drain line
from the condenser is .internally connected with
the drain fitting of the unit.
It is strongly recommended .therefore to install a
vertical open vent on unitdrain line high point to
ensure good draining and to direct the drain line
to a trapped and vented floor drain receptacle.
NOTE. The watersupplyand the waterdrain
must
code. In some case a licensed plumber and/
or a plumbing permit is required.
to consider
the installation
DRAIN
plastic tube to an
be installed
to conform
with
Of an
the local
