Contents

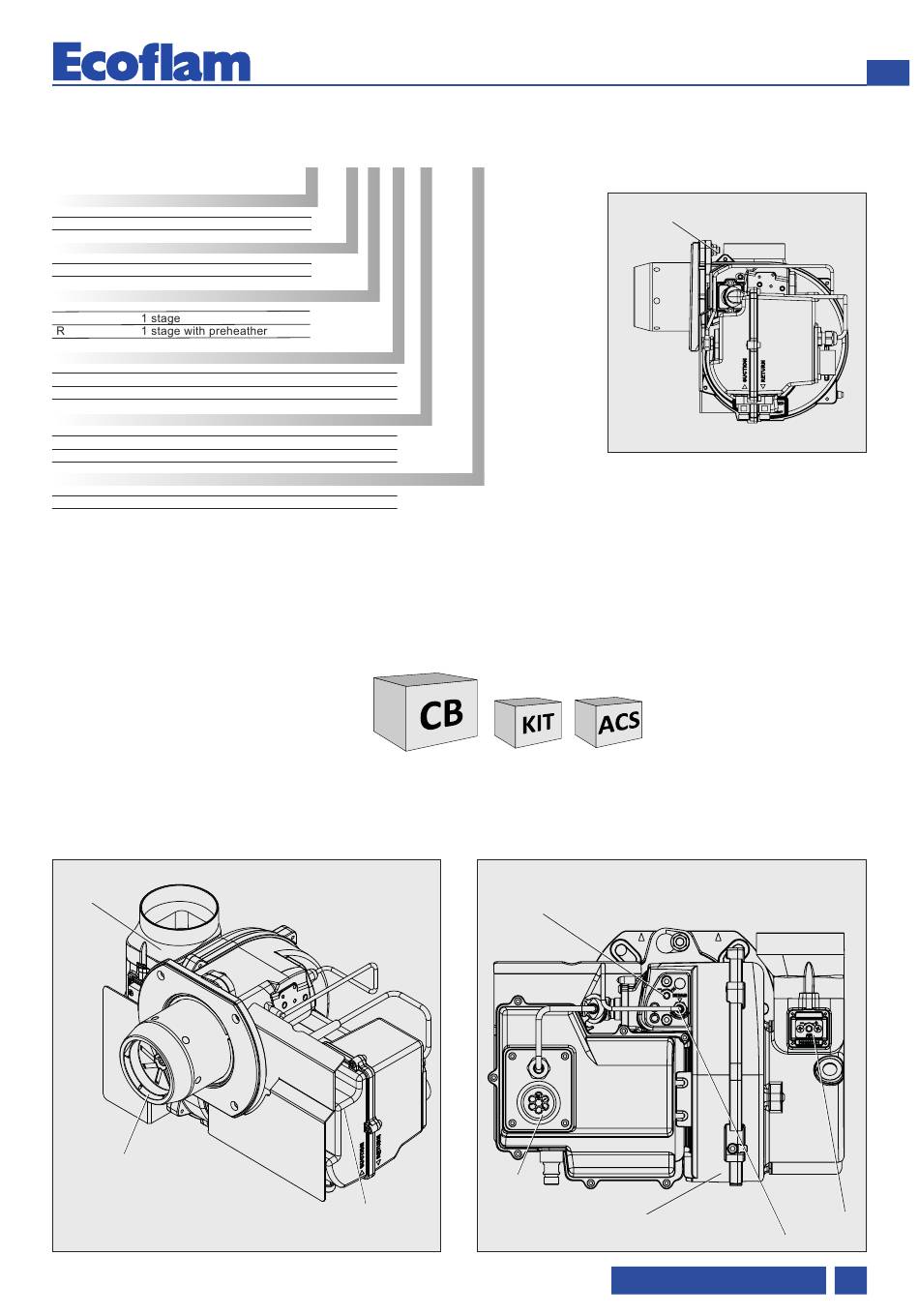

- Burner description
RANGE NAME BY FUEL TYPE
MAX Light oil
MODEL SIZE (Gas: kW; Oil: kg/h)
MAX 8 8,9 kg/h
OPERATION TYPE
EMISSION COMBUSTION TYPE
MAX Low NOx Low NOx Class 3 yellow flame (<120 mg/kWh)
MAX Standard Class 2-OIL EN267 (<185 mg/kWh)
HEAD TYPE
TC Short head
TL Long head
ELECTRICAL SUPPLY TO THE SYSTEM
230-50-60 230 Volt, 50-60 Hz
Scope of delivery
CB: COMPLETE BURNER
- 1 bag including :
- multilanguage technical manual.
- n°3 nipple.
- n°2 gasket.
- n°1 gauge for checking the settings.
113
8
420011121700
MAX 8 LN TC 230-50-60
M1
15
M1 Electric motor
Y Graduated rod for head adjustment
3 Air regulation in the burner head
5 Housing
8 Blast tube
10 Socket
15 Burner flange
103B Air regulation
113 Air intake
3
10
5
www.ecoflam-burners.com
EN
103B
Y
