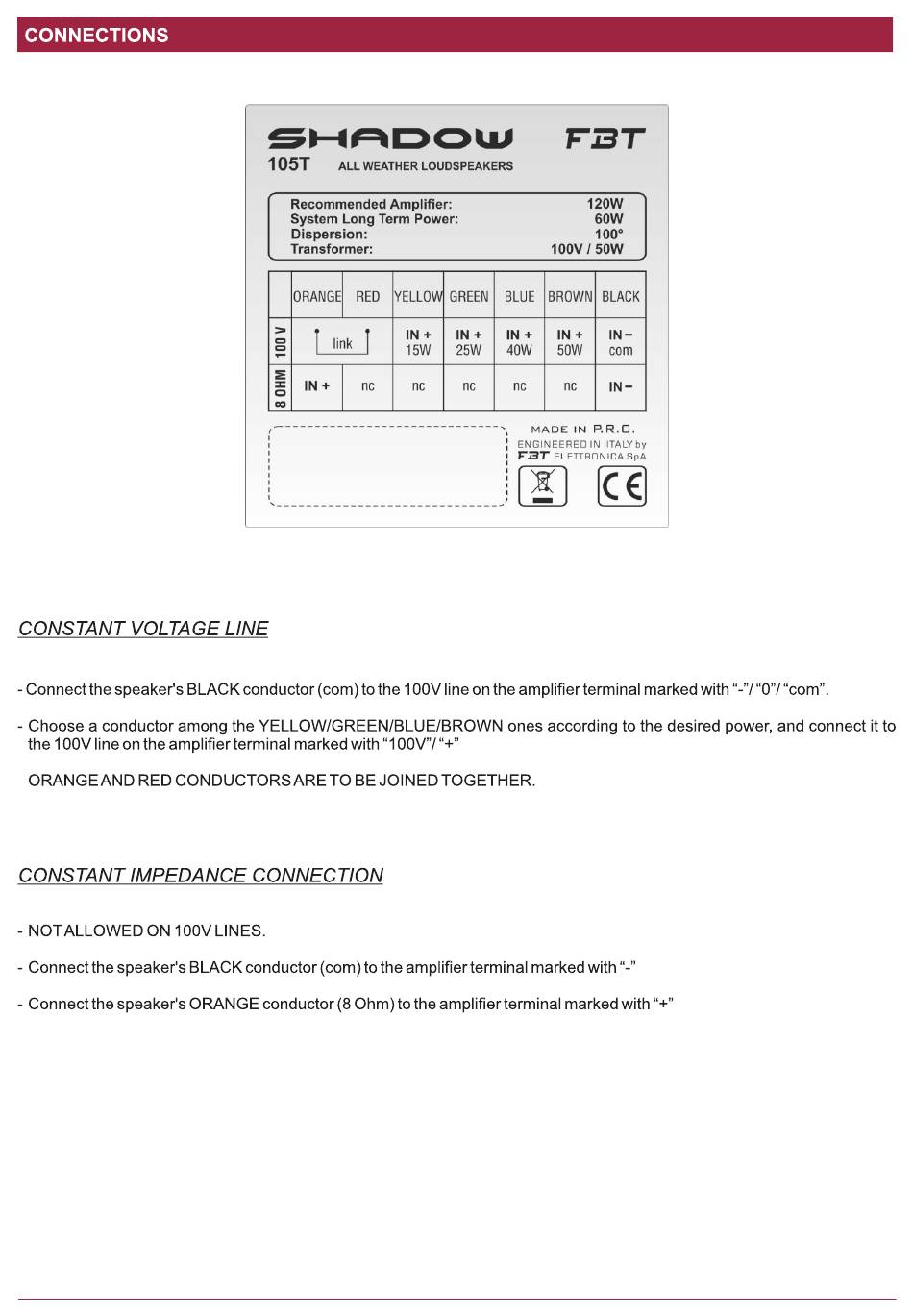

CONNECTIONS
CONSTANT VOLTAGE
- Connect the speaker's BLACK conductor (com) to the 1OOVline on the amplifier terminal marked with "-"/"0"/"com".
- Choose a conductor among the YELLOW/GREEN/BLUE/BROWN
the 1OOVline on the amplifier terminal marked with "1 OOV"/"+"
ORANGE AND RED CONDUCTORS
CONSTANT IMPEDANCE
NOT ALLOWED ON 1 OOV LINES.
- Connect the speaker's BLACK conductor (com) to the amplifier terminal marked with "-"
- Connect the speaker's ORANGE conductor (8 Ohm) to the amplifier terminal marked with "+"
105T ALLWEATHER LOUDSPEAKERS
Recommended Amplifier:
System Long Term Power:
Dispersion:
Transformer:
ORANG RED
link
LINE
ARE TO BE JOINED
CONNECTION
100'.'1
ELLO GREEN BLUE BROWN BLACK
15W 25W 40W 50W
