VERVE
All manuals and user guides at all-guides.com

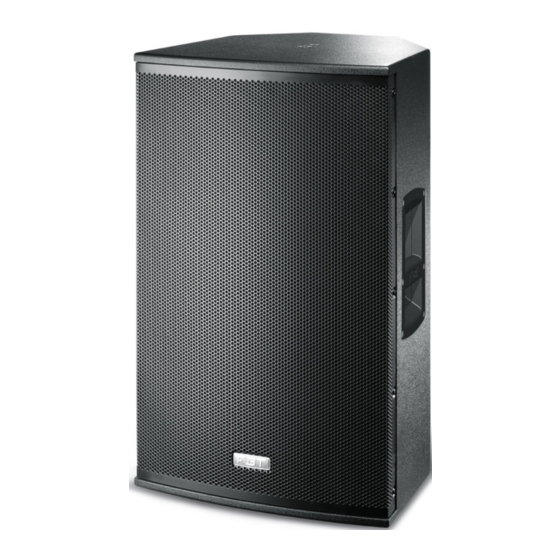

Processed Active Reinforcement Loudspeakers
FBT ELETTRONICA S.p.A. - ZONA IND.LE SQUARTABUE - 62019 RECANATI (MC) - ITALY
tel. 071750591 r.a. - fax 0717505920 - P.O. BOX 104 - e-mail : info@fbt.it - www.fbt.it

Werbung

Inhaltsverzeichnis
loading

Verwandte Anleitungen für Fbt VERVE-Serie

Inhaltszusammenfassung für Fbt VERVE-Serie

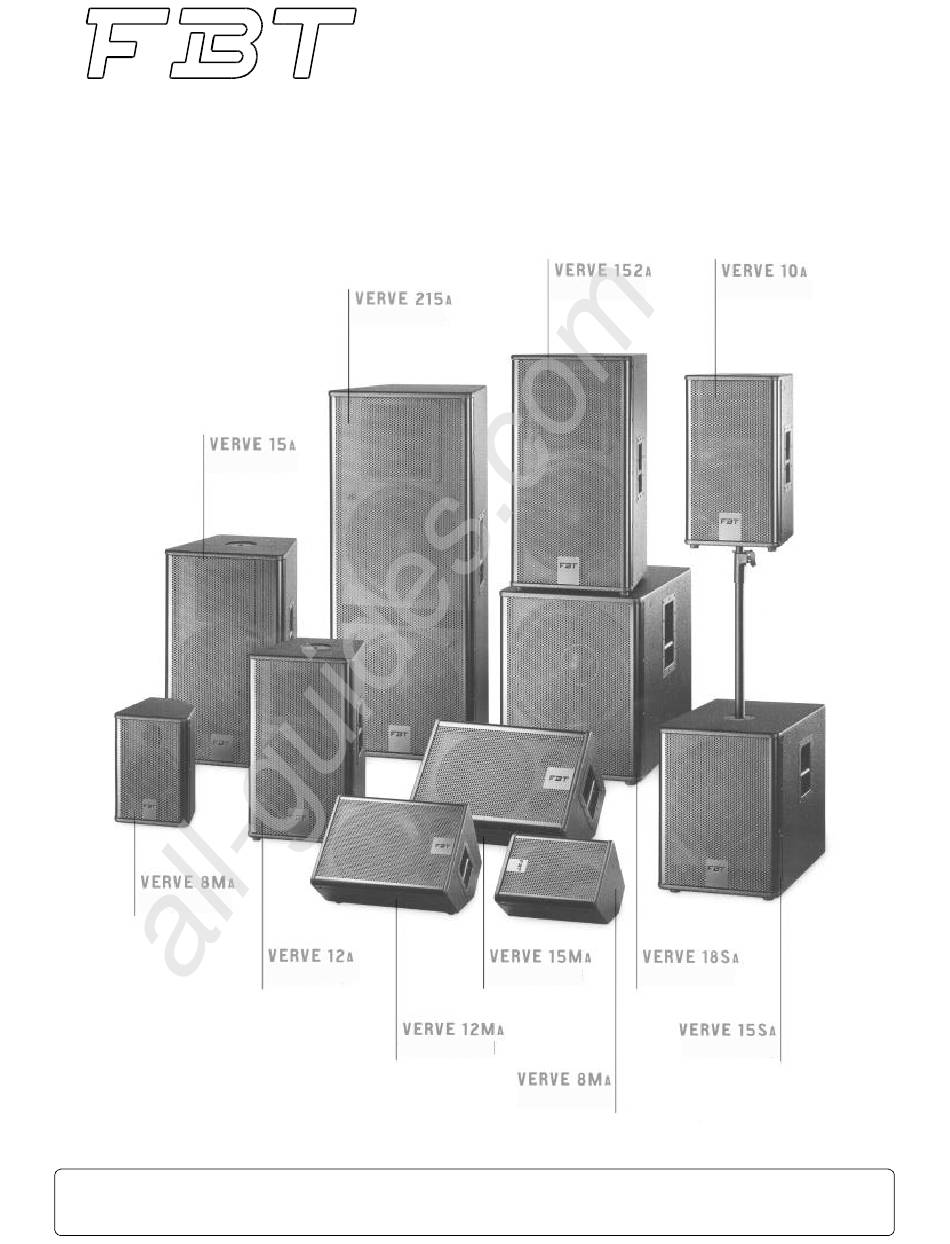

  • Seite 1 All manuals and user guides at all-guides.com Processed Active Reinforcement Loudspeakers FBT ELETTRONICA S.p.A. - ZONA IND.LE SQUARTABUE - 62019 RECANATI (MC) - ITALY tel. 071750591 r.a. - fax 0717505920 - P.O. BOX 104 - e-mail : info@fbt.it - www.fbt.it...
  • Seite 2 All information included in this operating manual have been scrupulously controlled; however FBT is not responsible for eventual mistakes. FBTElettronica S.p.A. has the right to amend products and specifications without notice.

  • Seite 3: Vorsichtsmaßnahmen

    All manuals and user guides at all-guides.com PRECAUZIONI PRECAUTIONS VORSICHTSMAßNAHMEN PRÉCAUTIONS COLLEGARE SEMPRE L’APPARECCHIO AD UNA PRESA ALWAYS CONNECT THE APPARATUS TO A MAINS SOCKET DI ALIMENTAZIONE PROVVISTA DI CONNESSIONE A TERRA OUTLET WITH A PROTECTIVE EARTHING CONNECTION TOUJOURS BRANCHER L’APPAREIL À UNE PRISE DAS GERÄT STETS AN EINE STECKDOSE MIT ERDUNG ÉLECTRIQUE RELIÉE À...
  • Seite 4 CARACTÉRISTIQUES GÉNÉRALES ALLGEMEINE MERKMALE Nuova serie di diffusori professionali in multistrato di betulla verniciati Completely “manufactured in italy” the VERVE series are FBT’s new antigraffio interamente “madeinitaly”. professional speaker systems, featuring birch plywood enclosures with a Equipaggiati con altoparlanti e driver B&C custom di altissimo pregio scratch &...

  • Seite 5: Installazione

    All manuals and user guides at all-guides.com INSTALLAZIONE INSTALLATION INSTALLATION INSTALLATION Per aumentare la zona di copertura e Several VERVE loudspeakers can be Pour augmenter la zone de couverture et Zur Erhöhung der Reichweite und des l’SPL massimo è possibile affiancare più combined to create an array to increase le NPA maximum, il est possible d'utiliser max.

  • Seite 6: Frequency Response

    All manuals and user guides at all-guides.com DIAGRAMMI DIAGRAMS DIAGRAMME FREQUENCY RESPONSE VERVE 8MA VERVE 10A VERVE 12A VERVE 15A VERVE 12mA VERVE 15mA VERVE 152A VERVE 15 SA VERVE 215A VERVE 18 SA...
  • Seite 7 All manuals and user guides at all-guides.com DIAGRAMMI DIAGRAMS DIAGRAMME Horizontal polar diagrams Horizontal polar diagrams VERVE 8MA 1000 2000 4000 8000 12500 16000 180 170 180 170 Vertical polar diagrams Vertical polar diagrams 1000 2000 4000 8000 12500 16000 180 170 180 170 Horizontal polar diagrams...
  • Seite 8 All manuals and user guides at all-guides.com DIAGRAMMI DIAGRAMS DIAGRAMME Horizontal polar diagrams Horizontal polar diagrams VERVE 12A 1000 2000 4000 8000 12500 16000 180 170 180 170 Vertical polar diagrams Vertical polar diagrams 1000 2000 4000 8000 12500 16000 180 170 180 170 Horizontal polar diagrams...
  • Seite 9 All manuals and user guides at all-guides.com DIAGRAMMI DIAGRAMS DIAGRAMME Horizontal polar diagrams Horizontal polar diagrams VERVE 12MA 1000 2000 4000 8000 12500 16000 180 170 180 170 Vertical polar diagrams Vertical polar diagrams 1000 2000 4000 8000 12500 16000 180 170 180 170 Horizontal polar diagrams...
  • Seite 10 All manuals and user guides at all-guides.com DIAGRAMMI DIAGRAMS DIAGRAMME Horizontal polar diagrams Horizontal polar diagrams VERVE 152A 1000 2000 4000 8000 12500 16000 180 170 180 170 Vertical polar diagrams Vertical polar diagrams 1000 2000 4000 8000 12500 16000 180 170 180 170 Horizontal polar diagrams...

  • Seite 11: Pannello Connessioni

    All manuals and user guides at all-guides.com PANNELLO CONNESSIONI CONNECTION PANEL PANNEAU CONNEXIONS BUCHSENFELD VOLUME VERVE GREEN-SIGNAL ORANGE-LIMITER RED-THERMAL PROCESSED ACTIVE REINFORCEMENTLOUDSPEAKER +3dB +3dB BUILTINAMP.: 250W(LF) 100W(HF) VERVE 8 A FREQ.RANGE(@-6dB): 50Hz-20kHz M A X . S P L ( @ 1 m ) : 121dB 1-Gnd 2-Hot...
  • Seite 12 All manuals and user guides at all-guides.com PANNELLO CONNESSIONI CONNECTION PANEL PANNEAU CONNEXIONS BUCHSENFELD VERVE 18 SA VERVE 15 SA THERM LIMIT PHASE 0° 180° +6dB FILT. FILT. LIFT 9) LIMIT / THERM: il led Limiter si 9) LIMIT / THERM: the LED illuminates 9) LIMIT/PRT : La LED de limitation...
  • Seite 13 All manuals and user guides at all-guides.com CONNETTORI CONNECTORS CONNECTEURS EINGÄNGE LAYOUT 425.1 513.9 VERVE 15SA 392.4 VERVE 215A 405.2 432.7 318.4 VERVE 18SA VERVE 152A...
  • Seite 14 All manuals and user guides at all-guides.com 1_GRIGLIA METALLICA DI PROTEZIONE 1_GRILLAGE MÉTALLIQUE 1_METAL PROTECTIVE GRILL 1_METALLSCHUTZGITTER 2_TROMBA + DRIVER 2_TROMPE + DRIVER 2_HORN + DRIVER 2_HORN + DRIVER 3_TUBI DI ACCORDO 3_TUNED PORTS 3_TUBES D’ACCORD 3_VERBINDUNGSROHRE 4_MANIGLIE 4_POIGNÉES 4_ HANDLES 4_TRANSPORTGRIFFE 5_WOOFER 5_WOOFER...

  • Seite 15: Specifiche Tecniche

    All manuals and user guides at all-guides.com SPECIFICHE TECNICHE TECHNICAL SPECIFICATIONS VERVE 8MA VERVE 10A VERVE 12A VERVE 15A VERVE 12MA VERVE 15MA VERVE 152A VERVE 215A VERVE 15SA VERVE 18SA Configurazione W rms Amplificatore interno (LF / HF) 150 / 50 250 / 100 300 / 100 350 / 100...

  • Seite 16: Caractéristiques Techniques

    All manuals and user guides at all-guides.com TECHNISCHE DATEN CARACTÉRISTIQUES TECHNIQUES VERVE 8MA VERVE 10A VERVE 12A VERVE 15A VERVE 12MA VERVE 15MA VERVE 152A VERVE 215A VERVE 15SA VERVE 18SA voies Configuration W rms Amplificateur intégré (LF / HF) 150 / 50 250 / 100 300 / 100...
