5. Use of Optional Filters
A great feature of Origin is its built-in filter drawer, which allows you to use astronomical imaging filters in the standard 1.25" or 2"
formats. The most useful filter is likely the optional Nebula Filter for Origin offered by Celestron, but you can experiment with other
filters, too.
TABS

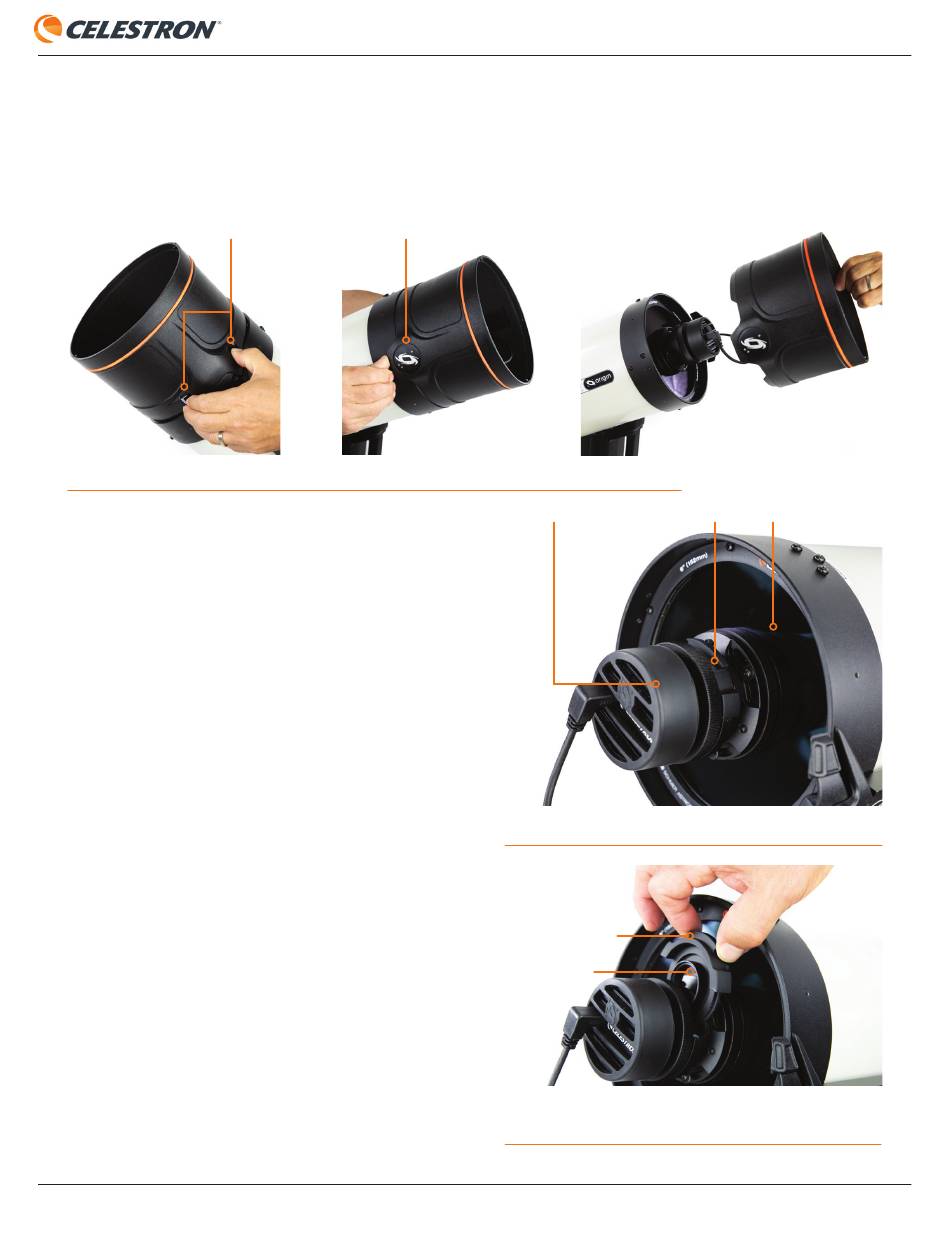

Fig. 13: Remove the lens shade by pressing down on the two tabs with one hand while pushing upward under the Origin logo.
Using the Optional Nebula
Filter for Origin
Installing the Nebula Filter for Origin is easy. First, in the app,
press the "Clear Filter" button to the left of the "Start Imaging"
button in the Camera View (refer to Figure 6). The app will
prompt you to install the Nebula Filter in Origin. First, remove
the lens shade from the front of the Origin optical tube by
pressing down on the two tabs on the exterior of the lens
shade with one hand while pushing upward under the Origin
logo located 180° away from the tabs (Figure 13). Removing
the lens shade will expose the Origin camera. The filter drawer
lies between the camera and the front optics, held in place by
magnets (Figure 14).
NOTE:
The filter drawer has two pieces of tape to prevent it
from dislodging during shipment. Before removing the filter
drawer for the first time, remove the tape. If you ever ship the
Origin optical tube, re-tape the filter drawer. You won't need
to re-tape for regular transport, as the drawer's magnets are
strong enough to secure it in place.
Grasp the drawer's handle with your fingers and pull outwards
to release the filter drawer from its securing magnets (Figure
15). You'll see the clear filter already installed in the filter
drawer.
The clear filter is essential to maintain the Origin's optical
properties when using filters. Without the clear filter, adding
another piece of flat glass (like the Nebula Filter) to the
optical system without removing a piece of glass (like the
14
C E LE ST R O N O R I G I N
|
ORIGIN LOGO
CAMERA
Fig. 14 The filter drawer is located between the camera and the front optics.
DRAWER HANDLE
CLEAR FILTER
Fig. 15: Grasp the drawer's handle with your fingers and pull outwards to
release it from its magnets.
FILTER DRAWER FRONT OPTICS
I N ST R U CTI O N MAN UAL
