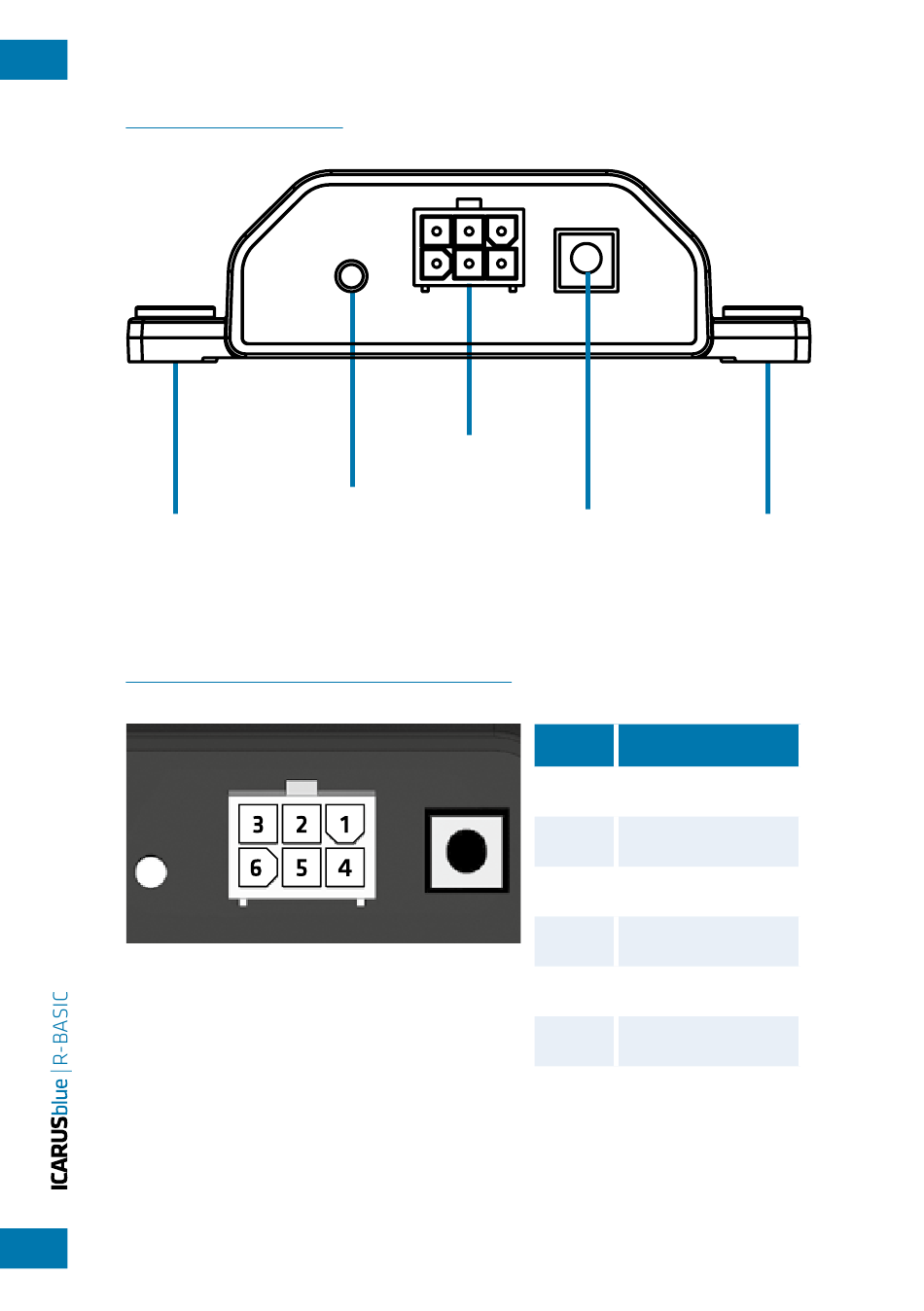

2.3 RECEIVER VIEW
MOUNTING
HOLE (M5)
2.4 PIN ASSIGNMENT OF THE PLUG
Only use connection cables certified by the manufactu-
rer to connect the devices to be controlled to the receiver.
Do not connect any loose wires to the plug pins of the receiver. Do
not use plugs from other manufacturers.
8
PLUG
STATUS LED
BUTTON 1
Pin Function
4 0 Vdc (GND)
1 9 - 36 Vdc
2 Output 1
5 Output 2
3 Output 3
6 Output 4
MOUNTING
HOLE (M5)
