Spare parts lists / accessories
7.1

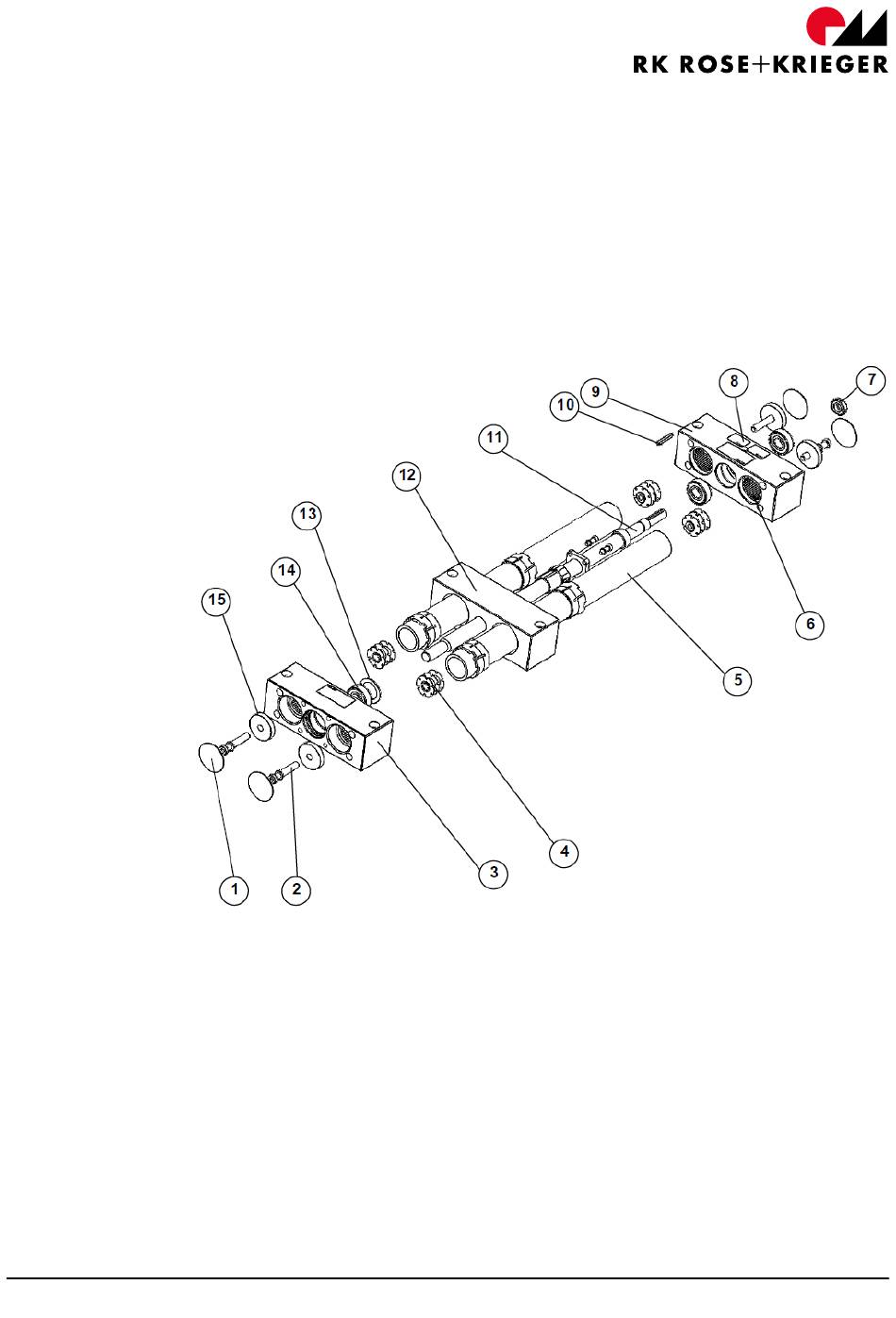

Exploded view drawings
Please refer to the parts list for the standardised designations of the RK components and their
installation position in the linear shaft.
Technical variations are possible and depend on the size and configuration of the linear shaft.
7.1.1
RK Tube System Linear Unit EP-II / EPX-II
Linear unit EP-II/EPX-II 30/40 (trapezoidal thread)
1
cover
2
screw
3
floating bearing end element
4
thread insert
5
guide tube
6
tolerance sleeve
7
slotted nut
8
warning stickers
9
fixed bearing end element
10
feather key
11
trapezoidal spindle
12
guide carriage
13
locking ring
14
grooved ball bearing
15
washer
57
