SAVE THESE INSTRUCTIONS
Specifications
Specifications at 90 psig (6.2 bar, 620 kPa)
Horsepower ...................................................0.30
Free Running Speed
PTGR100 .............................................25,000 RPM
PTGR105 .............................................25,000 RPM
PTGR110 .............................................25,000 RPM
Recommended Air Pressure ..... 90 psig (620 kPa)
Air Consumption ..................... 1.7 cfm (11 SCFM)
Air Inlet Thread Size ..........................1/4"-18 NPT
Recommended Hose Size ...3/8" (9.5 mm) ID min.
Dimensions:
Length
PTGR100 ..........................................6.1" (155 mm)
PTGR105 ........................................9.88" (250 mm)
PTGR110 ........................................5.75" (146 mm)
Weight
PTGR100 ......................................1.0 lbs. (0.45 kg)
PTGR105 ......................................1.4 lbs. (0.63 kg)
PTGR110 ......................................1.2 lbs. (0.54 kg)
Noise* (Tested in accordance with ISO
Standard 15744)
Sound Pressure Level (A)
PTGR100 .....................................................85.9 dB
Uncertainty, K .................................................3.0 dB
PTGR105 .....................................................82.4 dB
Uncertainty, K .................................................3.0 dB
PTGR110 .....................................................97.5 dB
Uncertainty, K .................................................3.0 dB
Sound Power Level (A)
PTGR100 .....................................................86.0 dB
Uncertainty, K .................................................3.0 dB
PTGR105 .....................................................94.0 dB
Uncertainty, K .................................................3.0 dB
PTGR110 .....................................................97.6 dB
Uncertainty, K .................................................3.0 dB
Vibration* (Tested in accordance with ISO
Standard 28927-12)
Vibration Level
PTGR100 .........................2.57 m/s
Uncertainty, K ............................................0.18 m/s
PTGR105 .........................2.69 m/s
Uncertainty, K ............................................0.22 m/s
PTGR110 .........................4.75 m/s
Uncertainty, K ............................................0.18 m/s
*These declared values were obtained by
laboratory type testing with the stated standards
and are not adequate for use in risk assessments.
Values measured in individual work places may be
higher. Values and risk of harm experienced by an
individual user are unique and depend upon the
environment and manner in which the user works,
the work piece and the workstation design, as well
as upon the exposure time and the physical
condition of the user.
Snap-on disclaims liability for the consequences of
using the declared values, instead of values
reflecting the actual exposure determined in an
individual risk assessment in a work place situation
over which we have no control.
ZPTGR100CE Rev F
EN EN
Application
The die grinder's collet is intended for retaining
accessories with 1/4'' shanks. A 1/8'' collet is
available as an accessory (as are 6mm and 3mm
collets). The PTGR100/PTGR110 are ideal for
grinding, honing, and sanding in limited space
conditions where a larger die grinder would be
unnecessary or impractical.
Operation
Adjust power/speed regulator to achieve desired speed.
Once prepared depress the start device fully and begin to
make contact with the workpiece. From there the
individual situation should be addressed to determine
pressure required and the method for material removal.
Air Supply
Air tools operate best on clean, moisture-free,
well-lubricated air at a constant pressure of 90 psig
(6.2 bar, 620 kPa,) maximum.

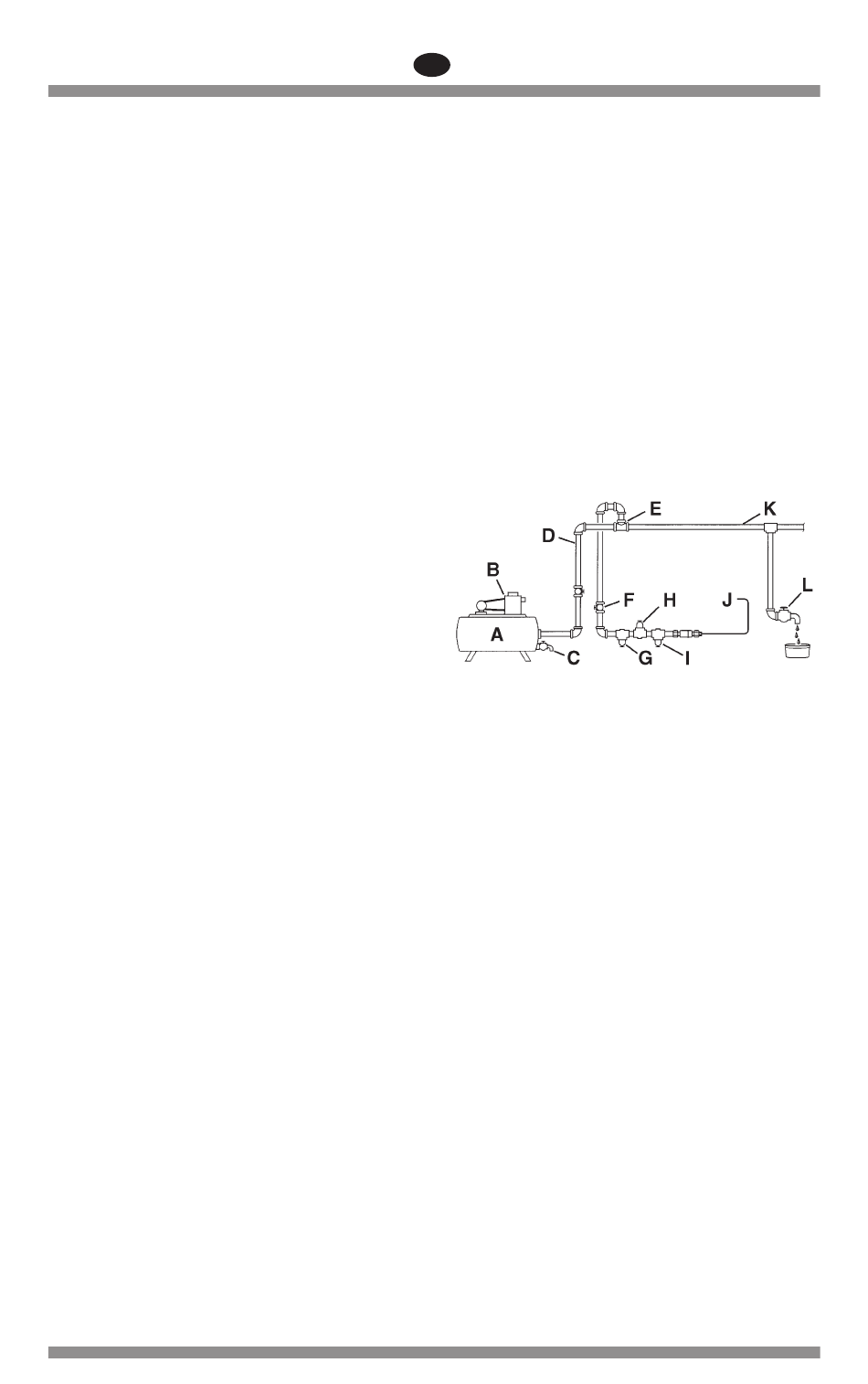

A – Receiver Tank, Minimum 40 Gallon
B – Compressor, Sufficient Capacity
C – Drain, Daily
D – Pipe and Fittings, Minimum 1/2"
E – Top Air Intake
F – Shut Off Valve, Easily Reached
G – Filter
H – Air Regulator, Set at Working Pressure
I – Lubricator
J – Air Tool Connection
K – Low Spot, Water Trap
with imbalance
2
L – Drain, Daily
2
Piping System
with imbalance
2
2
The piping system should be large enough to avoid
with imbalance
2
an excessive pressure drop under maximum flow
2
conditions. All pipe fittings and hose outlets should
be 1/2" and should be arranged so there are no low
spots that collect water which cannot be drained
daily. Do not use an air hose less than 3/8" ID or one
that is too long because pressure drop under
maximum flow conditions could reduce performance.
√ Accessories are available for air tight connections.
The quick coupler,
adaptor, Snap-on part number AHC21M, are
recommended for use with this die grinder.
Air Compressor
The air compressor should have sufficient capacity to
deliver 1.7 cfm at 90 psig (6,2 bar, 620 kPa) at each
outlet while the tool is running. The receiver tank
should have sufficient capacity to provide surge
balance for each air tool.
5
Figure 1: Recommended Air Supply System
Snap-on part number AHC21, and
