Torque
60-100 in-lb
180 in-lb
8 8
11 11
10 10
9 9
8 8
7 7
6 6
PTGR105 PTGR105
5 5
2 2
1 1
PTGR110 PTGR110
Parts Listing
Ref Description
1. Collet Nut (PTGR105) ......................1 ...........74128
Collet Nut (PTGR100/PTGR110) ......1 ...........74071
2 Collet 1/8" (PTGR100/PTGR110) .....1 ...........74072
Collet 3/16" (PTGR100/PTGR110) ...1 ...........74073
Collet 1/4" (PTGR100/PTGR110) .....1 ...........74074
Collet 3/8" (PTGR100/PTGR110) .....1 ...........68030
Collet 3 mm (PTGR100/PTGR110) ..1 ...........74075
Collet 6 mm (PTGR100/PTGR110) ..1 ...........74076
Collet 3/32" (PTGR105) ...................1 ...........74124
Collet 1/8" (PTGR105) .....................1 ...........74121
Collet 1/4" (PTGR105) .....................1 ...........74120
Collet 3 mm (PTGR105) ..................1 ...........74122
Collet 6 mm (PTGR105) ..................1 ...........74123
3. Collet Body (PTGR100, PTGR110) ..1 ...........77057
Collet Body (PTGR105) ...................1 ...........74128
4. Clamp Nut (PTGR100) .....................1 ...........79661
5. Output Shaft (PTGR110) .................1 .... PT110A32
6. Bowed Retaining Ring (PTGR110) ..1 ...........77075
7. Ball Bearing ................................... 1-2 .... ME11A12
8. Gear Set (PTGR110) ........................1 ...........68873
9. Ball Bearing (PTGR110) ...................2 ........ SDR-26
10. Angle Head Housing Assembly (PTGR110) .............
........................................................1
11. Grease Fitting 1/4" ...........................1 ......ESD1333
12. Bearing (PTGR105) .........................2 ...........77186
13. Extension Shaft (PTGR105) .............1 .. PT200L41A
14. O-Ring (PTGR105) ........................ 1-2 ..........14291
15. Extension Housing (PTGR105) ........1 ...........79650
16. Snap Ring (PTGR105) .....................1 ..... ME7A166
17. Spacer (PTGR100/PTGR105) ..........1 ..... PT100-14
18. Front End Plate Spacer ....................1 ..... PT100-10
19. O-Ring (PTGR100/PTGR110) ..........1 ...........14366
20. Front Endplate (PTGR100/PTGR110) .1 ...........79648
ZPTGR100CE Rev F
Torque
PTGR100 PTGR100
Torque
90-120 in-lb
12 12
3 3
2 2
1 1
23 23
21 21
20 20
19 19
18 18
7 7
22 22

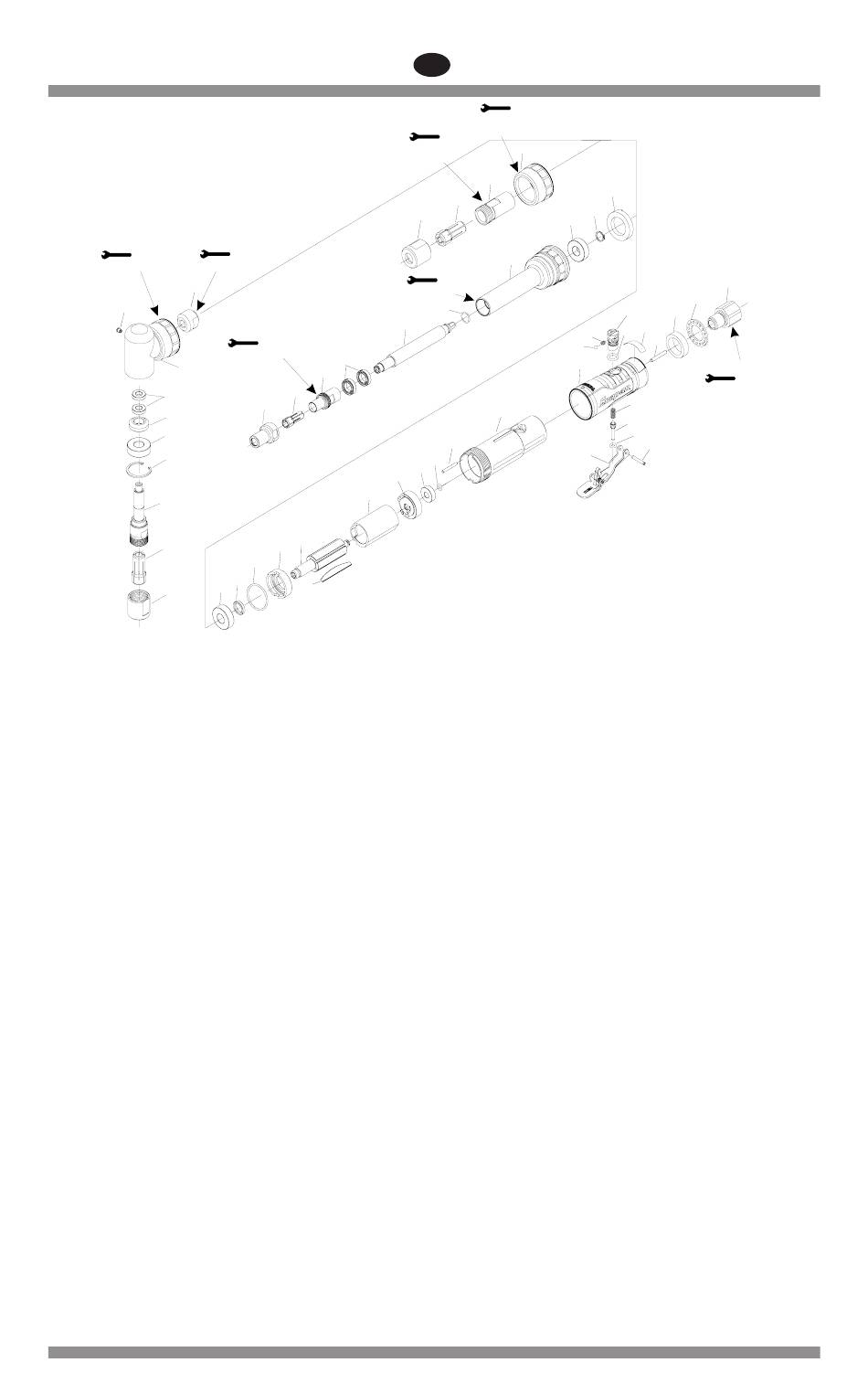

Figure 2: PTGR100/PTGR105/PTGR110 Die Grinder
Qty Part Number
..PTGR110-300
EN EN
Torque
100 in-lb
4 4
Torque
45 in-lb
3 3
2 2
1 1
15 15
Torque
10-15 ft-lb
14 14
13 13
28 28
27 27
26 26
25 25
24 24
Ref Description
Front Endplate (PTGR105) ................1 ....... PT100-4
21. Rotor (PTGR100, PTGR110) ...........1 ...... PT110A6
Rotor (PTGR105) ............................1 ...........77199
22. Vane ................................................5 .FAR2500-30
23. Cylinder ...........................................1 ....... PT100-7
24. Rear End Plate .................................1 ....... PT100-5
25. Ball Bearing .....................................1 ..... ME11A35
26. O-Ring .............................................1 ....... ME7B74
27. Regulator Pin ...................................1 ..... ME2A140
28. Housing ...........................................1 ....... PT100-1
29. Jacket (Red) ....................................1 .
Jacket (Green) .................................1
Jacket (Gun Metal) ..........................1
Jacket (High Vis) .............................1
Jacket (Orange) ...............................1 ..
30. Regulator .........................................1 ....MR2000-6
31. Compression Spring ........................1 ..... ME1A189
32. Ball ..................................................1 ....... ME9A14
33. O-Ring .............................................1 ......... ME7B5
34. Spring ..............................................1 ..... ME1A227
35. Valve Stem.......................................1 ..MR2000-13
36. O-Ring .............................................1 ....... ME7B97
37. Pin ...................................................1 ....... ME2C82
38. Lever Assembly ...............................1 SPPT100-300
39. Safety Label .....................................1 ...........67408
40. Pin ...................................................1 ..... ME2A140
41. Muffler .............................................1 ..... PT100-13
42. Exhaust Washer ...............................1 ....... PT100-2
43. Inlet Bushing ...................................1 ..........ME6F7
Not Shown:
Wrench 9/16" x 3/4" (PTGR100, PTGR110)...2 ...........74058
Wrench 7/16" x 11/16" (PTGR105) ..........2 ...........77020
43
17 17
16 16
7 7
43 43
42 42
30 30 41 41
39 39
33 33
31 31
40 40
32 32
29 29
90-150 in-lb
34 34
35 35
36 36
37 37
38 38
Qty Part Number
PTGR100G100
PTGR100GM100
PTGR100HV100
Torque
PTGR100-100
PTGR100O100
(7/20)
