EX- EX EX - - 11064 / 11065 11064 / 11065 11064 / 11065
JUMPER SETTING & CONNECTORS:
J7:
USB 2.0 - 10 Pin connector ( standard):
Pin Signal Pin
1 2
+5VCC +5VCC
3 4 1 VCC1 +5V 5
Data1-
Data2-
Data1+ 5 6
Data2+
2 VCC2 +5V 6
GND 7 8 GND
3 DATA1- 7
9 10
4 DATA2- 8
Attention!!!:
Please make sure that you connect the cable in the right
order like shown in the list above. If you connect the cable
wrong it can destroy your hardware! The labelling on the
cable must match with the ones on our card.
If you use the internal A-port J2 you can use only one
of the ports from the 10 Pin connector J7!
HARDWARE INSTALLATION :
Attention! If you use Windows 98, ME, 2000 without service pack 4 or XP without
service pack. Please install the drivers for the Ex-11064 / 11065 first.
If you use Windows 2000 including service pack 4, or Windows XP including
service pack 1 & 2. Or you already installed the drivers please proceed with the
following instructions for hardware installation.
If you are ready with the jumper settings for the EX-11064 / 11065 , please proceed with
the following installation instructions. Because the designs of computers are different, only
general installation instructions are given. Please refer your computer's reference manual
whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Com-
puter and gently slide the cover off.
3. If your pc case do have a front panel please follow the instructions at J7 above.
Normally the cables should be marked if not please ask the front panel manufac-
turer
4. If necessary please install now the external power supply to the card like shown at JP1
& J6 above.
5. Locate an available PCI-Express expansion slot and remove its covers from the rear
panel of your computer.
6. Align the EX-11064 / 11065 with the expansion slot, and then gently but firmly, insert
the card. Make sure the card is seated and oriented correctly.
7. Then connect the card with a screw to the rear panel of the computer.
8. Gently replace your computer's cover and the mounting screws.
DRIVER INSTALLATION :
Windows 98 and ME
Please insert the driver CD into your CD-rom drive (for example D:\ ) and open the
folder D:\USB 2.0\NEC\WIN9.x on the CD.
Now start the file "U2v2_1.exe" by double click on your mouse and follow the setup
program to finish installation process. After that shut down windows and follow the
instructions for the Hardware installation. After installing the card simply start your
computer and the card will be recognized automatically by your system.
CHECK INSTALLED DRIVER:
Open the >Device manager< . Now you should see at „USB Devices" the following new
entrys: <NEC USB Open Host Controller> <PCI USB 2.0 Host Controller> <USB 2.0
Root Hub Device> <USB Root Hub>.
If you see this or a similar information the EX-11064 / 11065 is installed correctly.
5
English English English EX EX EX- - - 11064 / 11065 11064 / 11065 11064 / 11065
DRIVER INSTALLATION :
Windows 2000 and 2000 Server
Should you use Windows 2000 with service pack 4 you dont need any drivers. The
Signal Pin Signal
drivers are already integrated in Windows and the EX-11064/11065 will be installed
automatically.
DATA1+ 9 NC
DATA2+ 10 NC
Should you use Windows 2000 without service pack 4 please insert the driver CD into
GND1
your CD-Rom drive (for example D:\ ) and open the folder D:\USB 2.0\NEC\WIN9.x on
the CD.
GND2
Now start the file "U2v2_1.exe" by double click on your mouse and follow the setup
program to finish installation process. After that shut down windows and follow the
instructions for the Hardware installation. After installing the card simply start your
computer and the card will be recognized automatically by your system.
CHECK INSTALLED DRIVER:
Open the >Device manager< . Now you should see at „USB Devices" the following new
entrys: <NEC USB Open Host Controller> <PCI USB 2.0 Host Controller> <USB 2.0
Root Hub Device> <USB Root Hub>.
If you see this or a similar information the EX-11064 / 11065 is installed correctly.
Windows XP and Server 2003
Should you use Windows XP with service pack 1 or 2 you don't need any drivers. The
drivers are already integrated in Windows and the EX-11064/11065 will be installed
automatically.
Should you use Windows XP without service pack please insert the driver CD into your
CD-Rom drive (for example D:\ ) and open the folder D:\USB 2.0\NEC\WIN9.x on the
CD.
Now start the file "U2v2_1.exe" by double click on your mouse and follow the setup
program to finish installation process. After that shut down windows and follow the
instructions for the Hardware installation. After installing the card simply start your
computer and the card will be recognized automatically by your system.
CHECK INSTALLED DRIVER:
Open the >Device manager< . Now you should see at „USB Devices" the following new
entrys: <NEC USB Open Host Controller> <PCI USB 2.0 Host Controller> <USB 2.0
Root Hub Device> <USB Root Hub>.
If you see this or a similar information the EX-11064 / 11065 is installed correctly.
English English English

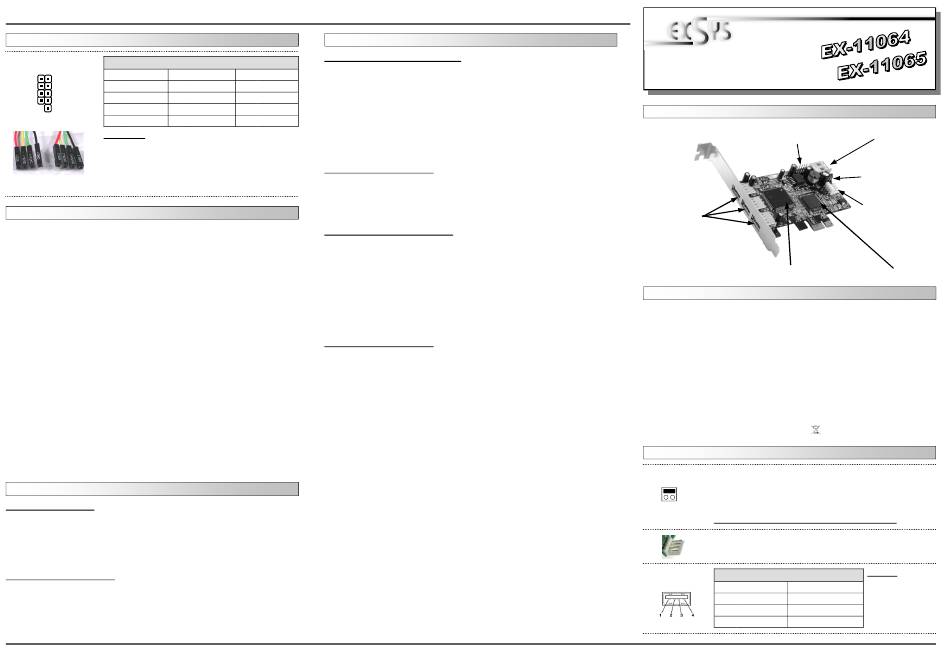

AUFBAU :
J3-J5
3 x Externe
USB 2.0 A-Buchse
BESCHREIBUNG & TECHNISCHE DATEN :
Die EX-11064 / 11065 ist eine USB 2.0 PCI-Express Karte. Sie ist mit 3 externen und 2
internen Ports (eine interne A-Buchse und ein 10Pin Stecker für Frontpanels) ausgestat-
tet. Sie unterstützt alle PCI-Express Slots von x1 bis x16. Der serielle PCI-Express Bus
unterstützt optimal die Leistung des schnellen NEC Chipsets. Die EX-11064 / 11065
gewährleistet so eine sichere Datenübertragung und exzellente Performance von bis zu
480Mbit pro Sekunde! Es ist nicht möglich die I/O Adressen und Interrupts manuell
einzustellen, da die Einstellungen der Karte vom System (BIOS) und beim Installieren
des Betriebssystems automatisch vorgenommen werden. Bei der EX-11065 handelt es
sich um eine LowProfile Karte mit 8cm Bügel für schmale Gehäuse.
Kompatibilität:
Betriebssysteme:
Anschlüsse:
Lieferumfang:
Zertifikate:
JUMPER EINSTELLUNG & ANSCHLÜSSE:
JP1:
J6:
J2-J5:
6
Bedienungsanleitung Bedienungsanleitung
Vers. 2.0 / 14.12.06
J7 2x Interner 10Pin USB Port
für Frontpanel Anschluss
NEC Chipset
PCI Express x1 bis x16
WINDOWS 9.x/ME/2000/XP/Server 2003/MAC/(Linux vom OS)
3 x A-Buchse extern, 1 x A-Buchse intern, 1 x 10 Pin Stecker
EX-11064 bzw. 11065 , Treiber CD, Anleitung
CE
/ FCC / RoHS / WEEE DE97424562 / WHQL
PCI = Strom vom PCI-Express BUS (Werkseinstellung)
P=PCI
AUX = Strom vom PC-Netzteil des Rechners
A=AUX
(Zur Entlastung des Mainboards und zur stabilen Stromversorgung bei
Verwendung von Endgeräten mit hohem Stromverbrauch).
Anschluss J6 muss mit PC-Netzteil verbunden werden!
Wenn JP1 auf AUX gestellt ist muss J6 mit dem Stromanschluss vom
PC Netzteil verbunden werden! Bitte auf die richtige Polarität achten!
Achtung! Stecker nie bei eingeschaltetem PC ein oder ausstecken!
USB 2.0 A-Buchse:
Pin Signal Pin Signal
1 VCC 4
2 DATA-
3 DATA+
1
J2 1x Interne
USB 2.0
A-Buchse
JP1
Stromquelle wählen
PCI oder AUX
J6
Anschluss für Stecker
vom PC-Netzteil
PCI-Express Bridge
Achtung!
Sollten sie beide
internen Anschlüsse
von J7 verwenden
GND
können sie die
interne A-Buchse J2
nicht verwenden!
