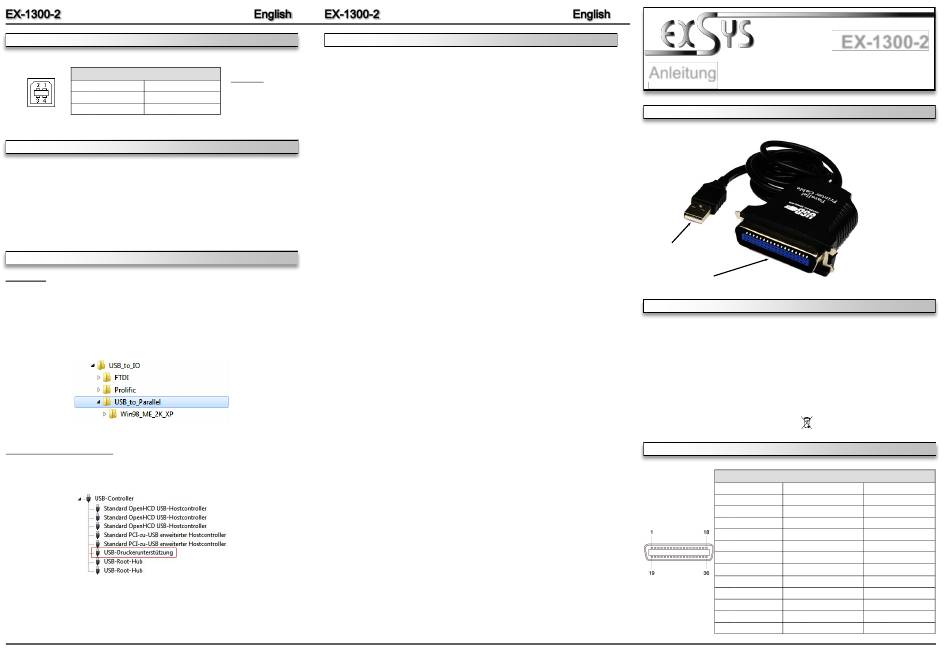

Exsys EX-1300-2 Anleitung

CONNECTORS
USB B-Port:
USB 2.0 B-Port
Pin Signal Pin Signal
1 VCC 3 DATA+
2 DATA- 4
HARDWARE INSTALLATION
Because there are large differences between PC's, we can give you only a general
installation guide for the EX-1300-2. Please refer your computer's reference manual
whenever in doubt.
1. Connect the cable (A-Plug) of the EX-1300-2 to the A-Port at your PC.
2. Connect now the power connector of the AC adapter (optional) to the 5V connector
and then connect the power plug of the power adapter into an electrical outlet.
DRIVER INSTALLATION
Windows
After the hardware installation Windows will recognize the device automatically and
install the drivers. If the driver shoul not be installed automatically, please insert the
Driver CD into your CD-Rom drive (e.g. Drive D:) and open the folder „USB_to_IO/
USB_to_Parallel". Please select the folder with your operating system and install the
driver (see Picture). Follow the hardware assistant and finish the installation.
Important! Restart your PC in any case after installing the drivers.
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „USB-Controller" the following
new entry:
If you see this or a similar information the device is installed correctly.
5
CLEANING
For cleaning please use only a dry fluff less cloth and remove the dirt with gently pres-
sure. In the area of the connectors please make sure that no fibres from the cloth re-
main in the connectors. Attention! Never use a moist or wet cloth for cleaning!
Attention!
Never plug in with
force or in wrong
direction.
GND
AUFBAU
USB 2.0 A-Stecker
BESCHREIBUNG & TECHNISCHE DATEN
Die EX-1300-2 ist ein Modul zur Umsetzung von USB auf eine Parallele Schnittstelle für
den Anschluss von High Speed Parallelen Peripherie Geräten (z.B. Drucker, Scanner,
Plotter usw.) geeignet. Das USB Modul ist Hot Plug & Play fähig. Für die Einstellungen
der I/O Adressen und Interrupts sind keine Jumper und Einstellungen notwendig. Sie
werden vom System (BIOS) und beim installieren des Betriebssystems automatisch
vorgenommen.
Kompatibilität:
Betriebssysteme:
Anschlüsse:
Lieferumfang:
Zertifikate:
ANSCHLÜSSE
Centronics 36F:
6
Anleitung
Vers. 1.0 / 18.01.16
36 Pin Centronics Parallel Stecker
USB 1.1 & 2.0
Windows 98/ ME/ 2000/ XP/ Vista/ 7/ 8.x/ 10/ Server 20xx
1x 36 Pin Centronics Parallel Stecker, 1x USB A-Stecker
EX-1300-2, Treiber CD, Anleitung
CE / FCC / RoHS / WEEE
DE97424562 / WHQL
36 Pin Centronics Parallel Stecker
Pin Signal Pin Signal
1 STROBE 13 SELECT
2 DATA 0 14 AUTO FEED
3 DATA 1 15 N/C
4 DATA 2 16 0 V
5 DATA 3 17 Chassis GND
6 DATA 4 18 +5V PULLUP
7 DATA 5 19 GND
8 DATA 6 20 GND
9 DATA 7 21 GND
10 ACKNOWL 22 GND
11 BUSY 23 GND
12 PAPER OUT 24 GND
1
EX-1300-2
Pin Signal
25 GND
26 GND
27 GND
28 GND
29 GND
30 Reset GND
31 RESET
32 FAULT
33 0 V
34 N/C
35 +5V DC
36 SLCT IN
