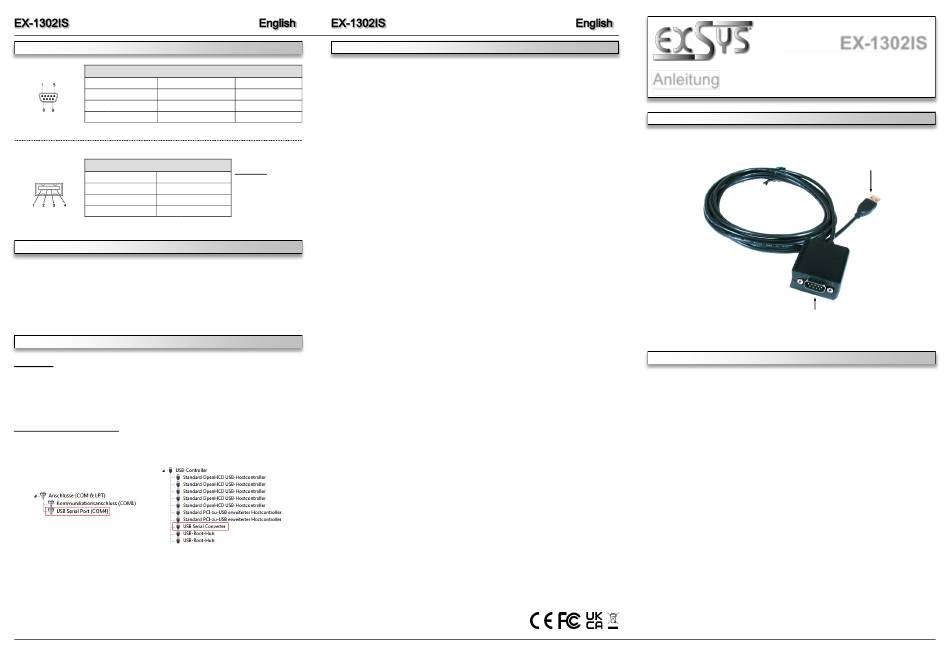

Exsys EX-1302IS Anleitung

CONNECTORS
DB 9M:
Serial 9 Pin male connector:
Pin Signal Pin
1 CDC 4
2 RXD 5 GROUND
3 TXD 6
USB A-Connector:
USB 2.0 A-connector:
Pin Signal Pin
1 VCC 4
2 DATA-
3 DATA+
HARDWARE INSTALLATION
Because there are large differences between PC's, we can give you only a general installation
guide for the EX-1302IS. Please refer your computers reference manual whenever in doubt.
1. Connect the EX-1302IS USB to the USB A-Port at your PC.
2. When you are ready you can start your PC and continue with the point „Driver Installation".
DRIVER INSTALLATION
Windows
After the hardware installation Windows will recognize the device automatically and install the
drivers. If the driver should not be installed automatically, please download the driver from our
homepage (www.exsys.de / www.exsys.ch) first. Now select the folder with your operating
system and install the driver. Follow the hardware assistant and finish the installation.
Important! Restart your PC in any case after installing the drivers.
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „Ports (COM & LPT)" and „USB-
Controller" the following new entry:
If you see this or a similar information the device is installed correctly.
5
CLEANING
To clean the unit, use only a dry, lint-free cloth and apply light pressure to remove dirt. Be
careful not to leave any fibres of the cloth in the connector area.
Signal Pin Signal
Never use a damp or wet cloth for cleaning!
DTR 7 RTS
8 CTS
DSR 9 RI
Attention!
Signal
Never plug in with
GND force or in wrong
direction.
Germany:
EXSYS Vertriebs GmbH
Industriestrasse 8
61449 Steinbach
www.exsys.de
Switzerland: Italy:
EXSYS Vertriebs GmbH EXSYS Italia Srl
Dübendorfstrasse 17 Via Belvedere, 45/B
8602 Wangen I-22100 Como
www.exsys.ch www.exsys.it
6
Anleitung Anleitung
Vers. 1.0, 21.12.22 Vers. 1.3 / 22.08.24
AUFBAU
9-pin Stecker
seriell RS-232
BESCHREIBUNG & TECHNISCHE DATEN
Das USB zu Seriell Kabel EX-1302IS stellt eine serielle RS-232 High Performance UART
16C550 Scnittstelle mit 15KV ESD Überspannungsschutz und 2.5KV Isolation zur Verfügung.
Es wurde entwickelt um serielle Geräte am USB 1.1 bis 3.2 Gen 2 Bus eines PCs, Servers oder
einer Workstation anzuschliessen. Durch die einfache Installation muss der Rechner nicht
geöffnet werden und das EX-1302IS kann bei laufendem Betrieb installiert werden.
Kompatibilität: USB 1.1, 2.0 & 3.2
Betriebssysteme: Windows 9.x / ME / 2000 / XP / Vista / 7 / 8.x / 10 / 11 / Server 20xx/
Linux / MAC
Anschlüsse: 1x 9 Pin RS-232 Sub-D Stecker, 1x USB A-Stecker
Lieferumfang: EX-1302IS, Anleitung
1
EX-1302IS
USB A-Stecker zum
Anschluss an PC
