Exsys EX-1393 Bedienungsanleitung

EX EX- EX - - 1393 1393 1393

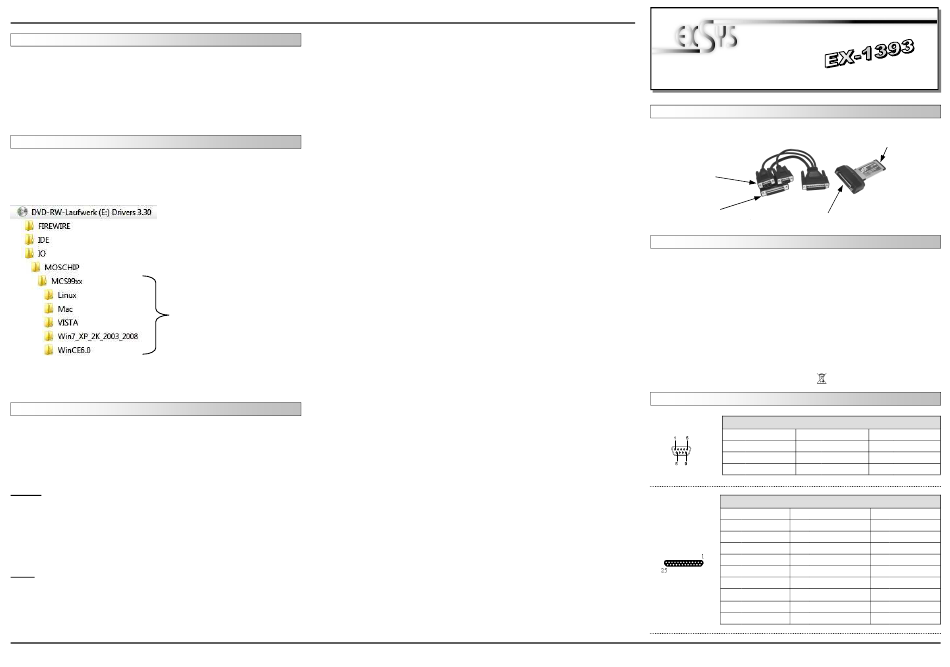

HARDWARE INSTALLATION :
If you are ready to install the ExpressCard parallel card, please proceed with the following
installation instructions. Because the design of Notebooks varies greatly, only general installa-
tion instructions are given. Please refer to your computer's reference manual whenever in
doubt.
Locate an available ExpressCard expansion Slot. Align the ExpressCard with the expansion
slot, and then gently but firmly, insert the card. Make sure the card is seated and oriented
correctly.
Never insert the ExpressCard card into a PCMCIA Slot !!!
DRIVER INSTALLATION :
To install the Windows drivers, there are two methods, one is to run the setup utility
(StnSetup.exe in each folder. The other one is to go through the Windows' driver
installation Wizard. We recommend you run the setup utility. It will be simpler. The
drivers are shipped in the following folders on the driver CD:
Drivers are in each
corresponding folder
If you are installing the drivers by Windows Wizard, please browse to the correct driver
folder when Windows is asking for the driver path.
UNINSTALLING THE SOFTWARE DRIVERS :
In some cases, you may want to uninstall the drivers. To remove the drivers that al-
ready installed for Windows, there are two methods:
1. Run (double click) the uninstall program
SCHIP_StnUninst.exe) in each Windows' folder on the supplied driver CD.
2. Go to Windows' Control Panel's Add/Remove Program to remove the drivers.
LINUX:
The drivers are located in the following folder on our driver CD:
"D:\IO\MOSCHIP\MCS99xx\Linux"
Because each individual distribution and kernel version of Linux is different, sadly we
cant provide a installation instruction. Please refer to the installation manual for stan-
dard IO ports from your Linux version! In some newer versions of Linux the card will
even be installed automatically after starting Linux.
MAC:
The drivers are located in the following folder on our driver CD:
"D:\IO\MOSCHIP\MCS99xx\Mac"
5
English English English EX- EX EX - - 1393 1393 1393
(for example MO-
English English English
S1+ 9 Pin Stecker
S2
P1
Die EX-1393 ist eine 34mm ExpressCard Multi I/O Karte mit zwei RS-232 Seriellen und einem
Parallelen SPP/EPP/ECP Bi-Direktionalen Ausgang für den Anschluss von Peripheriegeräten
mit Enhanced Centronics Interface oder von High-Speed Seriellen RS-232 Schnittstellen (z.B.
Drucker, Scanner, Laufwerke, Modem, Scanner oder Terminal usw.). Es ist nicht möglich die I/
O Adressen und Interrupts manuell einzustellen, da die Einstellungen der Karte vom System
(BIOS) und beim Installieren des Betriebssystems automatisch vorgenommen werden. Die
CardBus.
Kompatibilität:
Betriebs Systeme:
Anschlüsse:
Lieferumfang:
Zertifikate:
DB 9M:
DB 25F:
6
Bedienungsanleitung Bedienungsanleitung
Vers. 1.0 / 28.09.11
AUFBAU :
Seriell Ausgang
25 Pin Buchse
Parallel Ausgang
Bi-Direktional
44 Pin Buchse für den
Anschluss des Octopus Kabel
BESCHREIBUNG & TECHNISCHE DATEN :
ExpressCard (34mm)
WIN 9x/ME/2000/XP/Server 2003/Vista/7 (Linux vom OS)
1 x 25 Pin D-Sub Parallel Buchse
2 x 9 Pin D-Sub Seriell Stecker
EX-1393, Octopus Kabel, Treiber CD, Anleitung
CE CE CE CE
/ FCC / RoHS / WEEE DE97424562 / WHQL
ANSCHLÜSSE:
Seriell 9 Pin D-SUB Stecker (S1 und S2):
Pin Signal Pin
1 CDC 4
2 RXD 5 GROUND
3 TXD 6
Parallel 25 Pin Buchse (P1):
Pin Signal Pin Signal
1 STROBE 10 ACKNOWLEDGE
2 DATA 0 11 BUSY
3 DATA 1 12 PAPER EMPTY
4 DATA 2 13 SELECT
5 DATA 3 14 AUTO FEED
6 DATA 4 15 ERROR
7 DATA 5 16
8 DATA 6 17 SELECT INPUT
9 DATA 7 18 GROUND
1
ExpressCard (34mm)
Laptop Anschluss
Signal Pin Signal
DTR 7 RTS
8 CTS
DSR 9 RI
Pin Signal
19 GROUND
20 GROUND
21 GROUND
22 GROUND
23 GROUND
24 GROUND
INIT 25 GROUND
