JUMPER SETTING & CONNECTORS:
DB62F:
Serial 62 Pin female connector :
Pin
Signal
Pin
1
TXD 1
22
2
DTR 1
23
3
RXD 2
24
4
DSR 2
25
5
DCD 2
26
6
TXD 3
27
7
DTR 3
28
8
RXD 4
29
9
DSR 4
30
10
DCD 4
31
11
RXD 5
32
12
DSR 5
33
13
DCD 5
34
14
TXD 6
35
15
DTR 6
36
16
RXD 7
37
17
DSR 7
38
18
DCD 7
39
19
RXD 8
40
20
DSR 8
41
21
DCD 8
42
HARDWARE INSTALLATION :
Because the designs of computers are different, only general installation instructions are
given. Please refer your computer's reference manual whenever in doubt.
1. Connect the USB cable to the USB B Connector of the module.
2. Plug the included power supply into the 5V Connector (optional).
3. Now connect the other end from the USB cable ( A-Plug) to the A-Connector at
your PC.
DRIVER INSTALLATION :
Windows 98/ ME/ XP/ Server 2003 & 2008/ Vista/ 7/ 8 (32&64-bit):
Windows will recognize a new "USB Serial Device" and open the hardware assistant. Please
close the
hardware
assistant and open
the
following path on
"D:\USB_to_IO\USB_to_Serial\(32_64bit)Win7_8_XP_Vista_2008_2003_98_ME".Now start
the file „PL2303_Prolific_Driver Installer_V10626" and follow the instructions of the setup
program till the end. Now please restart your PC. After booting Windows will recognize the
device automatically and install it. Follow the hardware assistant and finish the installation.
Attention! Restart Windows in any case after installing the drivers.
CHECK THE INSTALLED DRIVER:
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the window that
opens select >Device Manager<. Under "Ports (COM and LPT)" you should find one more
new „USB Serial Port„ as sample (COM5). If you see this or similar entries the module is
installed correctly.
INSTALL THE PERIPHERAL DEVICE:
The speed from the serial ports can be set to the maximum baud rate of 115.2Kbaud. Double
click >Device manager< select for example
> USB Serial Port (COM5)<. There you can
select the different settings of baud rate, stop/start-bits etc.
5
DRIVER INSTALLATION :
CHANGE PORT NUMBER (NOT WIN98 & ME):
If you like to change the port number for example COM3 to COM5, open the >Device Manager<
click at >COM3<, >Settings< and then >Advance<. There you can choose between COM3 up to
Signal
Pin
Signal
COM256.
RXD 1
43
CTS 1
Windows 2000:
DSR 1
44
RTS 1
Windows will recognize a new "USB Serial Device" and open the hardware assistant. Please
DCD 1
45
GND
close the
hardware
"D:\USB_to_IO\USB_to_Serial\Win2000".Now star the file "PL-2303 Driver Installer" and
TXD 2
46
CTS 2
follow the instructions of the setup program till the end. Now please restart your PC. After
DTR 2
47
RTS 2
booting Windows will recognize the device automatically and install it. Follow the hardware
assistant and finish the installation. Attention! Restart Windows in any case after installing the
RXD 3
48
CTS 3
drivers.
DSR 3
49
RTS 3
CHECK THE INSTALLED DRIVER:
DCD 3
50
GND
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the window that
TXD 4
51
CTS 4
opens select >Device Manager<. Under "Ports (COM and LPT)" you should find one more
new „USB Serial Port„ as sample (COM3). If you see this or similar entries the module is
DTR 4
52
RTS 4
installed correctly.
GND
53
CTS 5
CHANGE PORT NUMBER:
TXD 5
54
RTS 5
If you like to change the port number for example COM3 to COM5, open the >Device Manager<
DTR 5
55
GND
click at >COM3<, >Settings< and then >Advance<. There you can choose between COM3 up to
RXD 6
56
CTS 6
COM256.
DSR 6
57
RTS 6
Linux:
DCD 6
58
GND
The drivers are located on the driver CD in the folder:
TXD 7
59
CTS 7
"D:\USB_to_IO\USB_to_Serial\Linux"
They are supported by the most versions of Linux OS. Because each individual version of Linux
DTR 7
60
RTS 7
OS is different, sadly we cant provide a installation instruction. Please refer to the installation
GND
61
CTS 8
manual for IO ports from your Linux OS version!
TXD 8
62
RTS 8
MAC:
DTR 8
The drivers are located on the driver CD in the folder:
"D:\USB_to_IO\USB_to_Serial\Mac_OS_X" for MAC OS-X or:
"D:\USB_to_IO\USB_to_Serial\Mac_OS_9_8" for Mac OS 9 & Mac OS 8
They are supported by the most versions of MAC OS. Because each individual version of MAC
OS is different, sadly we cant provide a installation instruction. Please refer to the installation
manual for IO ports from your MAC OS version !
CLEANING :
For cleaning please use only a dry fluff less cloth and remove the dirt with gently pres-
sure. In the area of the connectors please make sure that no fibres from the cloth re-
main in the connectors. Attention! Never use a moist or wet cloth for cleaning!
the
driver CD:
assistant and open
the
following path on
the
6
Bedienungsanleitung
Vers. 3.2 / 06.06.13
AUFBAU :
driver CD:
EX-1331 / 1S Seriell
S1
9 Pin Stecker
Seriell RS232

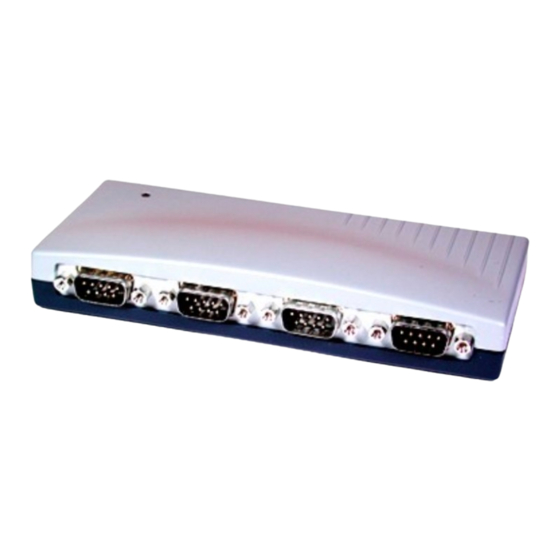

EX-1334 / 4S Seriell
.
S1 to S4 4 x 9 Pin
Stecker Seriell RS232
.
BESCHREIBUNG & TECHNISCHE DATEN :
.
Die USB zu Seriell Module sind zur Umsetzung von USB auf acht RS-232 Schnittstellen
mit FIFO 16C550 Ports für den Anschluss von High Speed Seriellen RS-232 Peripherie
Geräten (z.B. Modem, Plotter usw.) geeignet. Die Module sind Hot Plug & Play fähig.
Für die Einstellungen der I/O Adressen und Interrupts sind keine Jumper und Einstellun-
gen notwendig. Sie werden vom System und beim Installieren des Betriebssystems
automatisch vorgenommen.
Kompatibilität:
USB 1.1 & 2.0 Anschluss
Betriebssysteme:
WIN 98/ ME/ 2000/ XP/ Server 200x/ Vista/ 7/ 8, Linux, MAC
Anschlüsse:
9 Pin Sub-D Stecker, 1 x USB B-Buchse, 1 x 5V Buchse
Lieferumfang:
1 x USB zu Seriell Modul, Anleitung, CD, USB Kabel
CE
Zertifikate:
/ FCC / RoHS / WEEE
JUMPER EINSTELLUNG & ANSCHLÜSSE:
5 Volt
ACHTUNG !!! Nur mit optionalem Original Netzteil verwenden !!!
Buchse:
DB 9M:
Seriell 9 Pin D-SUB Stecker:
Pin
Signal
1
CDC
2
RXD
3
TXD
USB B Buchse:
USB 2.0 B-Buchse:
Pin
Signal
1
VCC
2
DATA-
EX-1332 / 2S Seriell
S2
9 Pin Stecker
Seriell RS232
S1
9 Pin Stecker
Seriell RS232
EX-1338 / 8S Seriell
USB B Anschluss
S1 to S8 8 x 9 Pin
5V Anschluss
Stecker Seriell RS232
DE97424562
Pin
Signal
Pin
Signal
4
DTR
7
RTS
5
GROUND
8
CTS
6
DSR
9
RI
Achtung!
Stecker nie umge-
Pin
Signal
kehrt oder mit
3
DATA+
Gewalt einstecken.
4
GND
1
