4 CONFIGURATION OF THE CONTROL PANEL
The universal control unit NET24N can be used for the management of the following types (TYPE) of closures motorized by DEA System:
swing and sliding gates, overhead doors and barriers.
In order to ensure maximum adaptability to each TYPE of closure, the control board provides an initial procedure, performed only at the
fi rst turn, for the optimal confi guration of inputs, outputs and parameters (see diagram
in the mode "dedicated" to the TYPE of selected closing. After performing the initial confi guration it is suffi cient to execute the standard
programming for the installation on which it is operating.
All settings remain in memory even in the case of subsequent fl are-ups (see diagram
If necessary the TYPE of confi gured closing can be later adjusted following diagram

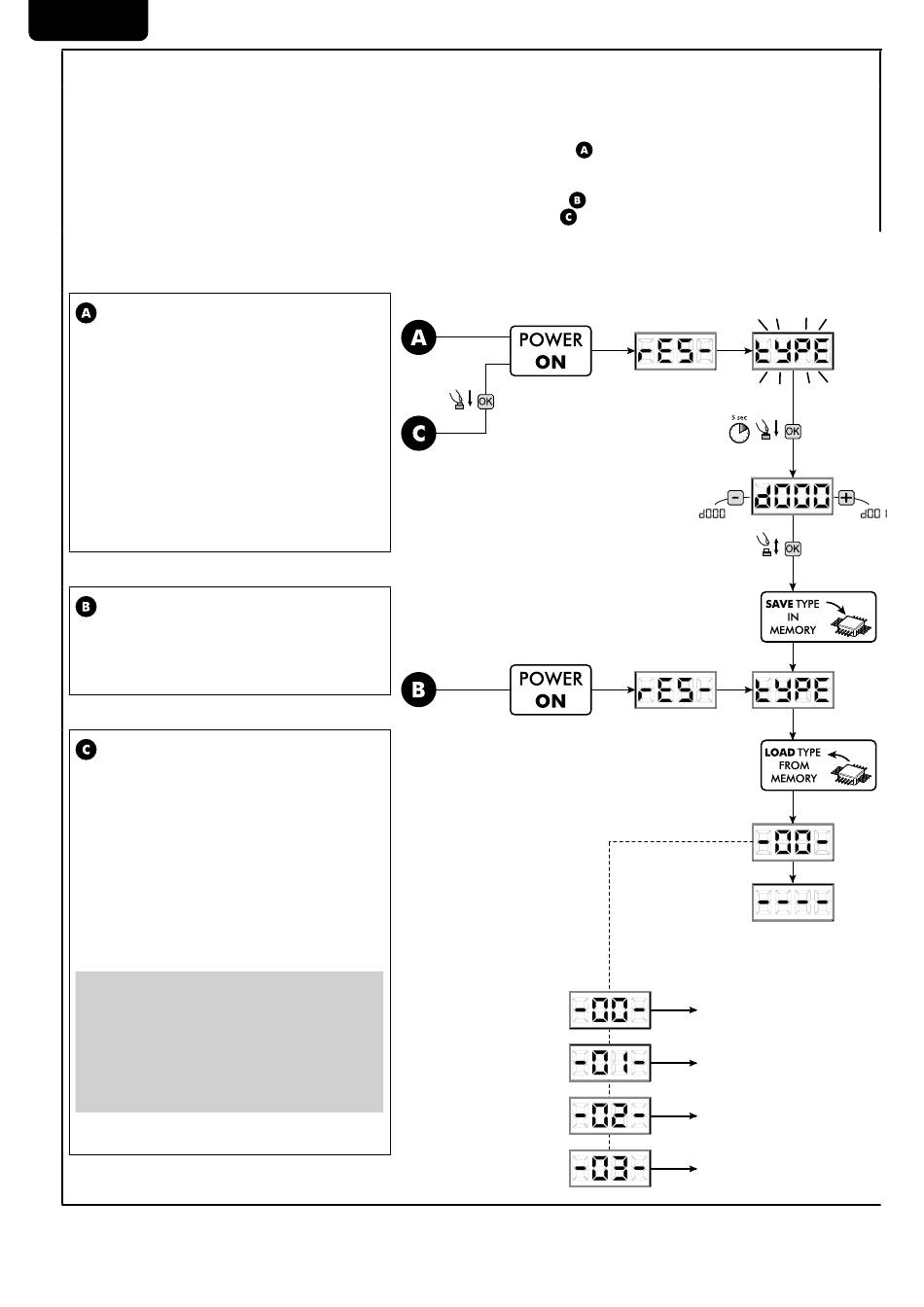

FIRST CONTROL BOARD IGNITION
Confi guration after the fi rst ignition
For the fi rst control panel ignition, proceed as
follows:
1. Apply power, the display shows in sequence the
writing "rES-" and "TYPE" fl ashing;
2. Press the [OK] button and hold for 5 seconds
until the display shows "d000" on the display;
3. Acting on the [+] and [-] keys, select the
desired confi guration depending on the type of
installation (es. d002) and confi rm by pressing
the [OK] button;
At this point, the selection will be stored and
reloaded each time in the future.
4. Follow signs, "TYPE", "-00-" followed by the
symbol of closed gate "- - - -".
Following ignitions
If you have already saved a confi guration,
proceed as follows:
Apply power, the display shows in sequence the
writing "rES-", "TYPE", "-00-" followed by the symbol
of closed gate "- - - -".
Modify the existing confi guration
If you have already saved a confi guration and you
want to change it, proceed as follows:
1. Hold down the [OK] button and give power, the
display shows in sequence the writing "rES-" and
"TYPE" fl ashing;
2. Press the [OK] button and hold for 5 seconds until
the display shows "d000" (the value changes to
match the previous confi guration used) on the
display;
3. Acting on the [+] and [-], select the new
desired confi guration depending on the type of
installation (es. d002) and confi rm by pressing
the [OK] button;
NOTE: Stop the reconfi guration procedure prior
to confi rmation, involves loading the previous
confi guration by the control panel without any
modifi cation.
NOTE: However, if the reconfi guration procedure is
brought to an end, the new confi guration will take
the place of the previous one and will be reloaded
each time in the future.
4. Follow signs, "TYPE", "-00-" followed by the
symbol of closed gate "- - - -".
28
). Once confi gured, the control panel will operate
).
.
Sliding gates
Swing gates
Overhead doors
Barriers
