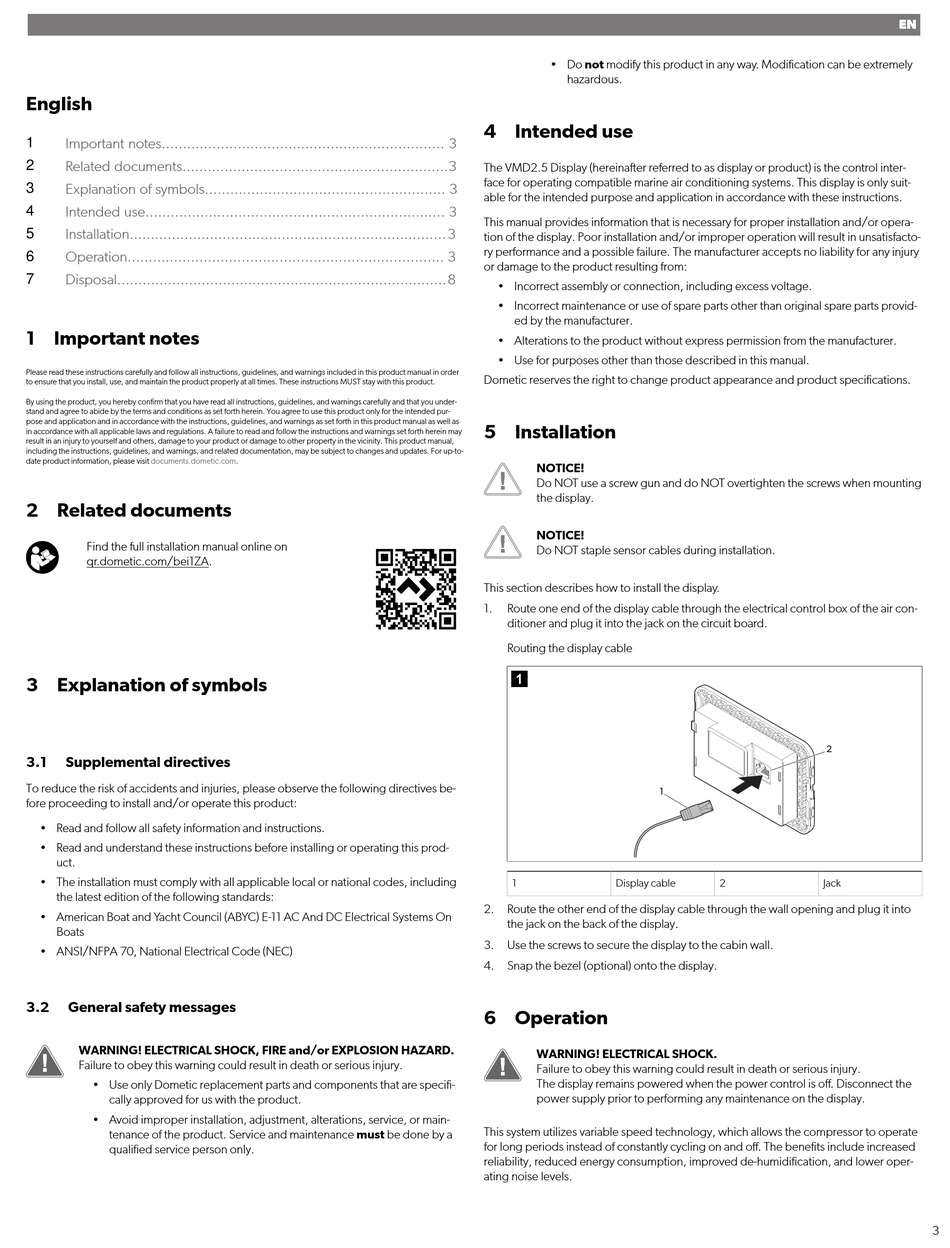

English
Important notes................................................................... 3
1
Related documents...............................................................3
2
Explanation of symbols......................................................... 3
3
Intended use....................................................................... 3
4
Installation...........................................................................3
5
Operation........................................................................... 3
6
Disposal..............................................................................8
7
1 Important notes
Please read these instructions carefully and follow all instructions, guidelines, and warnings included in this product manual in order
to ensure that you install, use, and maintain the product properly at all times. These instructions MUST stay with this product.
By using the product, you hereby confirm that you have read all instructions, guidelines, and warnings carefully and that you under-
stand and agree to abide by the terms and conditions as set forth herein. You agree to use this product only for the intended pur-
pose and application and in accordance with the instructions, guidelines, and warnings as set forth in this product manual as well as
in accordance with all applicable laws and regulations. A failure to read and follow the instructions and warnings set forth herein may
result in an injury to yourself and others, damage to your product or damage to other property in the vicinity. This product manual,
including the instructions, guidelines, and warnings, and related documentation, may be subject to changes and updates. For up-to-
date product information, please visit documents.dometic.com.
2 Related documents
Find the full installation manual online on
qr.dometic.com/bei1ZA.
3 Explanation of symbols
3.1 Supplemental directives
To reduce the risk of accidents and injuries, please observe the following directives be-
fore proceeding to install and/or operate this product:
• Read and follow all safety information and instructions.
• Read and understand these instructions before installing or operating this prod-
uct.
• The installation must comply with all applicable local or national codes, including
the latest edition of the following standards:
• American Boat and Yacht Council (ABYC) E-11 AC And DC Electrical Systems On
Boats
• ANSI/NFPA 70, National Electrical Code (NEC)
3.2 General safety messages
WARNING! ELECTRICAL SHOCK, FIRE and/or EXPLOSION HAZARD.
Failure to obey this warning could result in death or serious injury.
• Use only Dometic replacement parts and components that are specifi-
cally approved for us with the product.
• Avoid improper installation, adjustment, alterations, service, or main-
tenance of the product. Service and maintenance must be done by a
qualified service person only.
• Do not modify this product in any way. Modification can be extremely
hazardous.
4 Intended use
The VMD2.5 Display (hereinafter referred to as display or product) is the control inter-
face for operating compatible marine air conditioning systems. This display is only suit-
able for the intended purpose and application in accordance with these instructions.
This manual provides information that is necessary for proper installation and/or opera-
tion of the display. Poor installation and/or improper operation will result in unsatisfacto-
ry performance and a possible failure. The manufacturer accepts no liability for any injury
or damage to the product resulting from:
• Incorrect assembly or connection, including excess voltage.
• Incorrect maintenance or use of spare parts other than original spare parts provid-
ed by the manufacturer.
• Alterations to the product without express permission from the manufacturer.
• Use for purposes other than those described in this manual.
Dometic reserves the right to change product appearance and product specifications.
5 Installation
NOTICE!
Do NOT use a screw gun and do NOT overtighten the screws when mounting
the display.
NOTICE!
Do NOT staple sensor cables during installation.
This section describes how to install the display.
1. Route one end of the display cable through the electrical control box of the air con-
ditioner and plug it into the jack on the circuit board.
Routing the display cable

1
1 Display cable
2. Route the other end of the display cable through the wall opening and plug it into
the jack on the back of the display.
3. Use the screws to secure the display to the cabin wall.
4. Snap the bezel (optional) onto the display.
6 Operation
WARNING! ELECTRICAL SHOCK.
Failure to obey this warning could result in death or serious injury.
The display remains powered when the power control is off. Disconnect the
power supply prior to performing any maintenance on the display.
This system utilizes variable speed technology, which allows the compressor to operate
for long periods instead of constantly cycling on and off. The benefits include increased
reliability, reduced energy consumption, improved de-humidification, and lower oper-
ating noise levels.
EN
2
2 Jack
3
