Minolta MULTI-FUNCTION BACK Bedienungsanleitung Seite 6

2

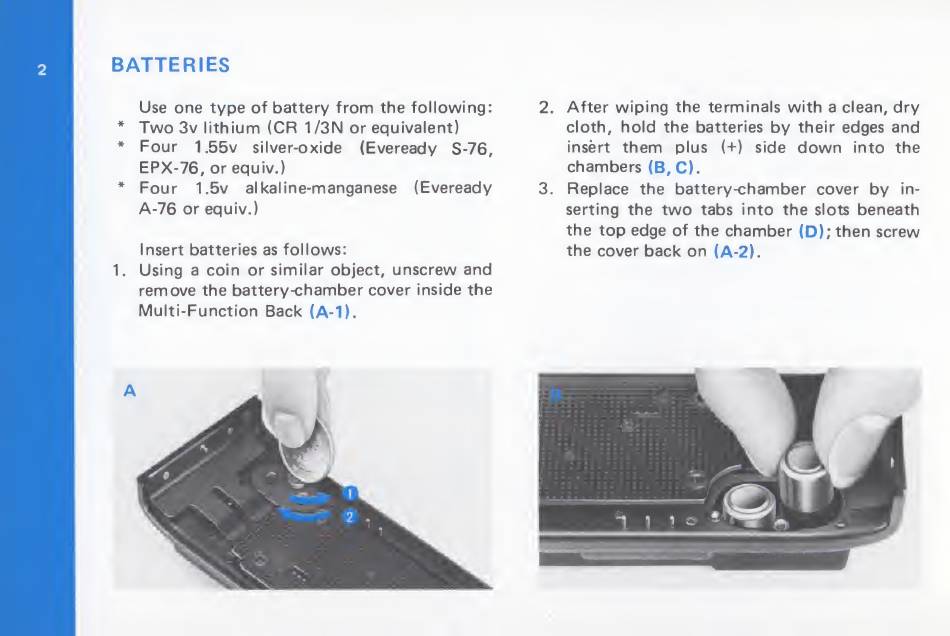

BATTERIES
Use one type of battery from the following:
* Two 3v lithium (CR 1 /3N or equivalent)
* Four 1.55v silver-oxide (Eveready S-76,
EPX-76, or equiv.)
* Four 1.5v alkaline-manganese (Eveready
A-76 or equiv.)
Insert batteries as follows:
1. Using a coin or similar object, unscrew and
remove the battery-chamber cover inside the
Multi-Function Back (A-1).
2. After wiping the terminals with a clean, dry
cloth, hold the batteries by their edges and
insert them plus (+) side down into the
chambers (B, C).
3. Replace the battery-chamber cover by In¬
serting the two tabs Into the slots beneath
the top edge of the chamber (D); then screw
the cover back on (A-2).
