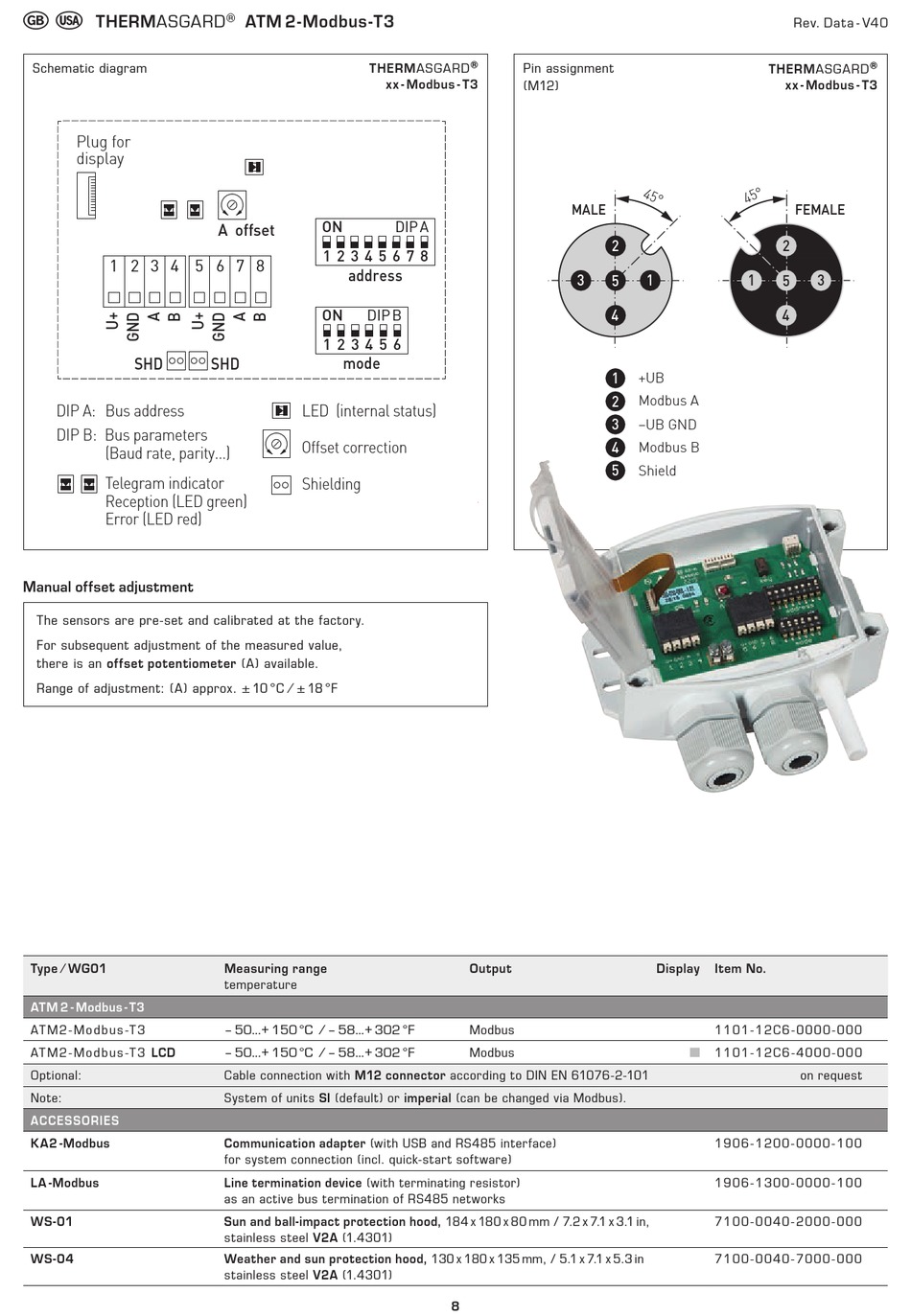

THERMASGARD
Schematic diagram
Plug for
display
1 2 3 4 5 6 7 8
SHD
DIP A: Bus address
DIP B: Bus parameters
(Baud rate, parity...)
Telegram indicator
Reception (LED green)
Error (LED red)
Manual offset adjustment
The sensors are pre-set and calibrated at the factory.
For subsequent adjustment of the measured value,
there is an offset potentiometer (A) available.
Range of adjustment: (A) approx. ± 10 °C ⁄ ± 18 °F
Type ⁄ WG01
ATM 2 - Modbus - T3
AT M 2 - M o d b u s -T 3
AT M 2 - M o d b u s -T 3 LCD
Optional:
Note:
ACCESSORIES
KA2 -Modbus
LA -Modbus
WS-01
WS-04
®
ATM 2-Modbus-T3
THERMASGARD
ON
A offset
1 2 3 4 5 6 7 8
address
ON
DIP B
1 2 3 4 5 6
mode
SHD
LED (internal status)
Offset correction
Shielding
Measuring range
temperature
– 50...+ 150 °C ⁄ – 58...+ 302 °F
– 50...+ 150 °C ⁄ – 58...+ 302 °F
Cable connection with M12 connector according to DIN EN 61076-2-101
System of units SI (default) or imperial (can be changed via Modbus).
Communication adapter (with USB and RS485 interface)
for system connection (incl. quick-start software)
Line termination device (with terminating resistor)
as an active bus termination of RS485 networks
Sun and ball-impact protection hood, 184 x 180 x 80 mm / 7.2 x 7.1 x 3.1 in ,
stainless steel V2A (1.4301)
Weather and sun protection hood, 130 x 180 x 135 mm, / 5.1 x 7.1 x 5.3 in
stainless steel V2A (1.4301)
® Pin assignment
xx - Modbus - T3
(M12)
DIP A
Output
Modbus
Modbus
8
MALE
2
3 5 1
4
1
+UB
2
Modbus A
3
–UB GND
4
Modbus B
5
Shield
Display Item No.
1101- 12C 6-0000- 000
■ 1101 -12C 6- 4000-00 0
1906- 1200- 0000-100
1906- 1300- 0000-100
7100-0 040-2000- 000
7100-0 040-7000- 000
Rev. Data - V40
®
THERMASGARD
xx - Modbus - T3
FEMALE
2
1 5 3
4
on request
