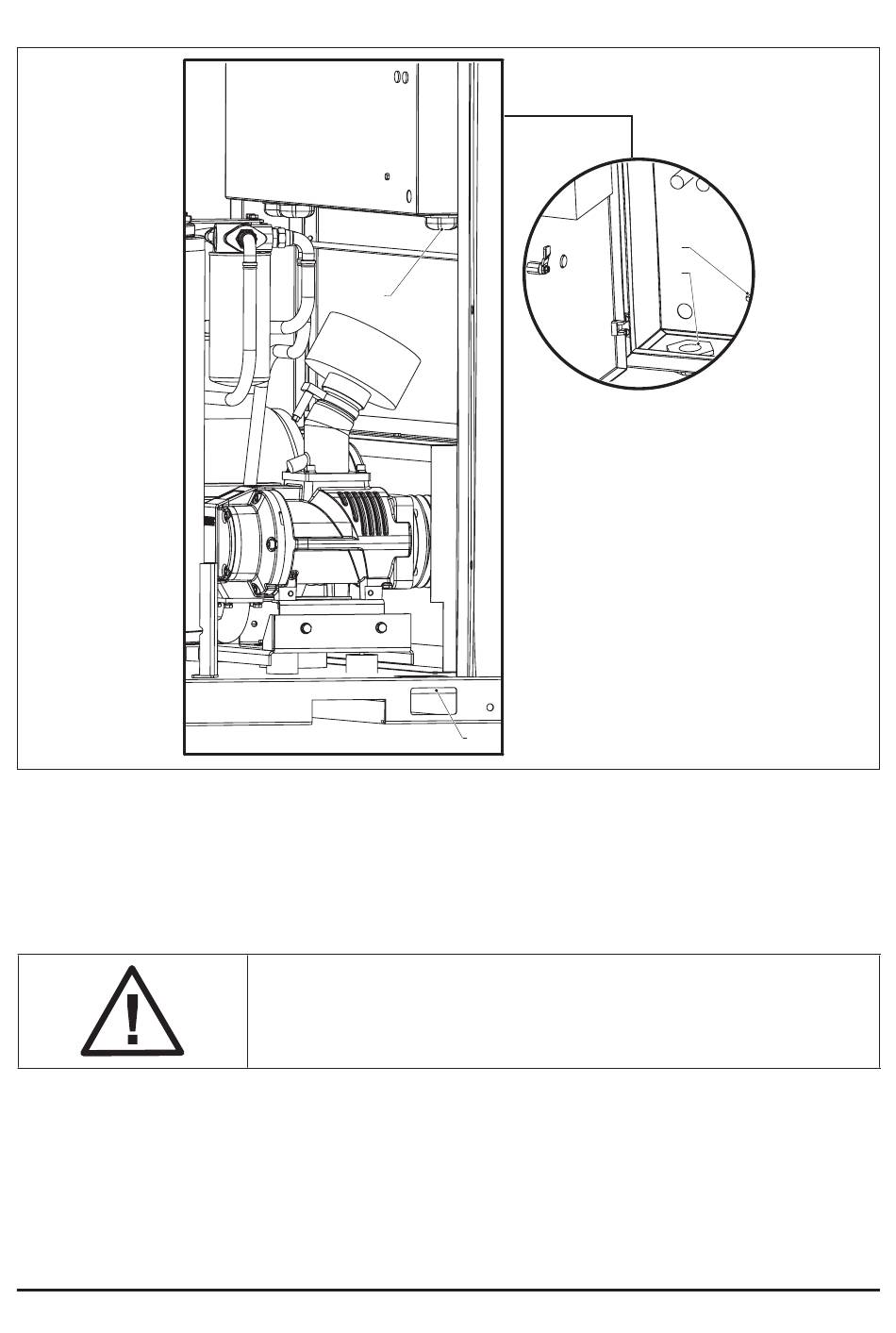

Fig. 3.5 Power cable connection
Remove the left side panel, pass the cable under the compressor into the orifice (1) and cable glang (2).
The earth wire of the power cable must be connected to the corresponding earthing bolt 3.
4.
Operation
4.1 Control panel
The frequency-controlled compressors F30 and F90 are equipped with an electronic i-Log control.
The electronic i-Log control maintains the network pressure between the programmable limit values by
automatically adjusting the compressor speed. Operating data such as operating times and system
statuses are also recorded.
COMPRAG
Screw air compressor F-Series
2
Non-qualified personnel must not be allowed to operate the com-
pressor.
1
3
2
