Start up
3.1 Lifting and carrying
For transport with a forklift truck, use the rigging holes in the frame. The compressor has slotted
rigging holes with width C – fig. 3.1. Move the compressor carefully.
H

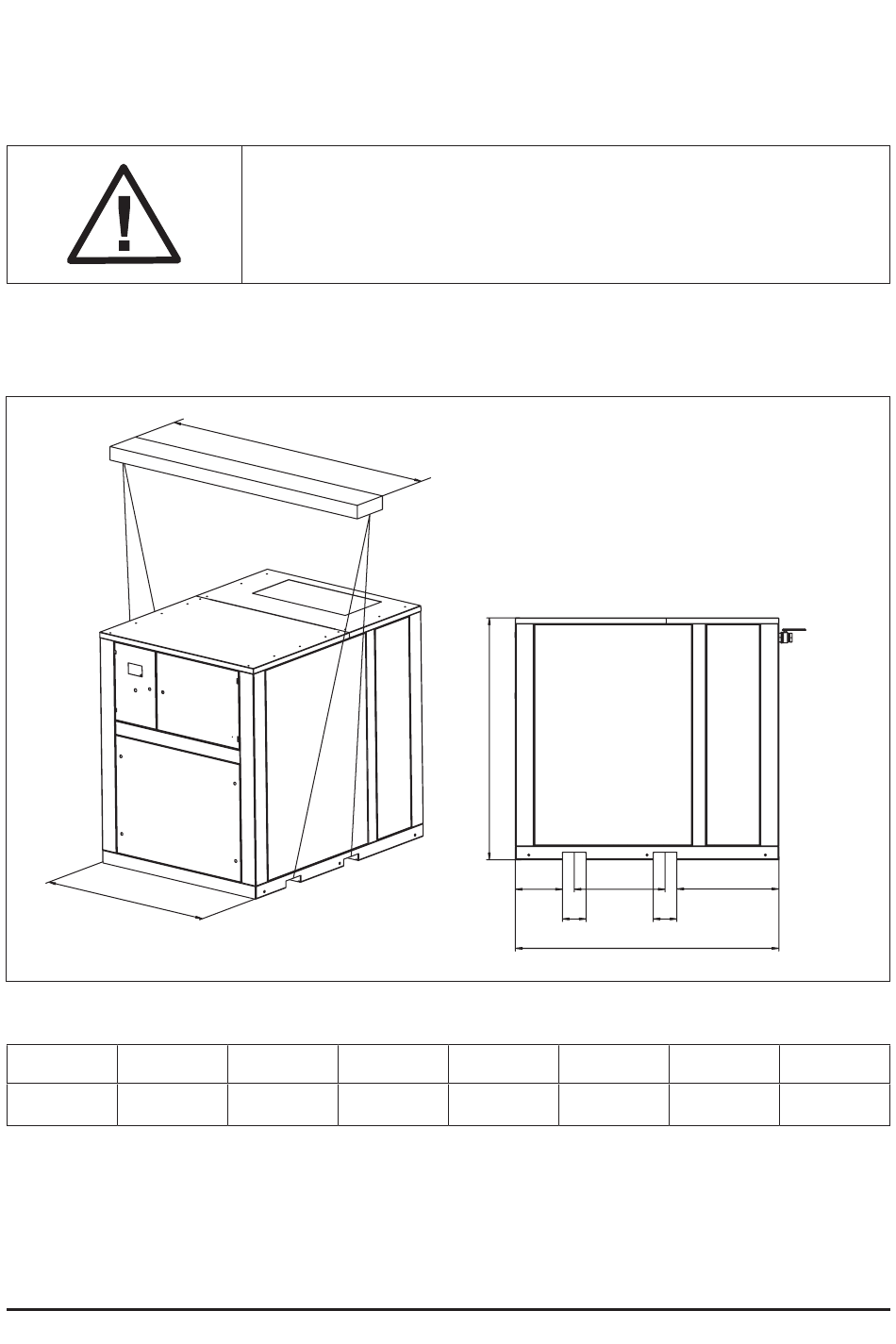

Fig. 3.1 Lifting and carrying F75-90.
A,mm
B, mm
350
676
14
All lifting should be carried out using a forklift truck with a carrying capacity
suited to the compressor. Lifting may be carried out with loading cranes,
winches and other machinery, using a crossbeam with the right length.
Local safety guidelines for lifting hFVe to be observed.
G
C, mm
D, mm
180
758
F
A
B
C
L
F, mm
G, mm
1790
1890
D
C
H, mm
L, mm
1490
1960
