2. Unboxing Operation

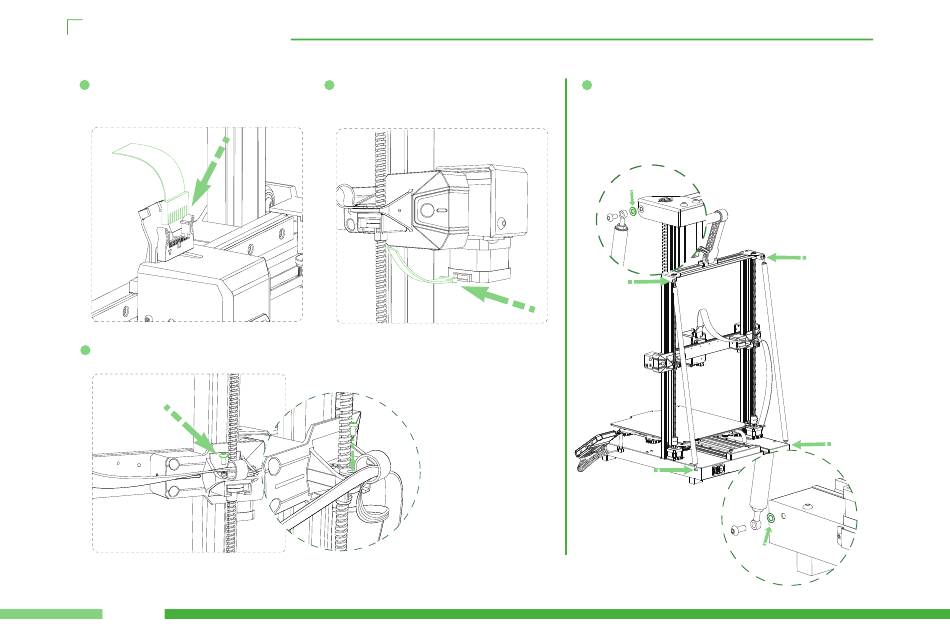

Insert the flat cable from the fixed sheet
7
metal part and then insert it into the horn
head port at the top of the extrusion head.
Use one M3*4 screw (screw bags ⑤) to fix the
8
R-type clamp at the rear end of the X-axis fixture.
M3*4
06
Insert the 6pin wire of the motor into the
9
X-axis motor port.
M3*4
Use two M5*10 screws (screw bags⑥) to fix the
10
upper end of the inclined tie rod, and then use
two M5*16 screws (screw bags⑦) to fix the
lower end of the inclined tie rod. (4 M5 gaskets
should be added during installation to prevent
loosening.)
M5 gasket
M5*10
M5*16
M5 gasket
M5*10
M5*16
