2. Unboxing Operation

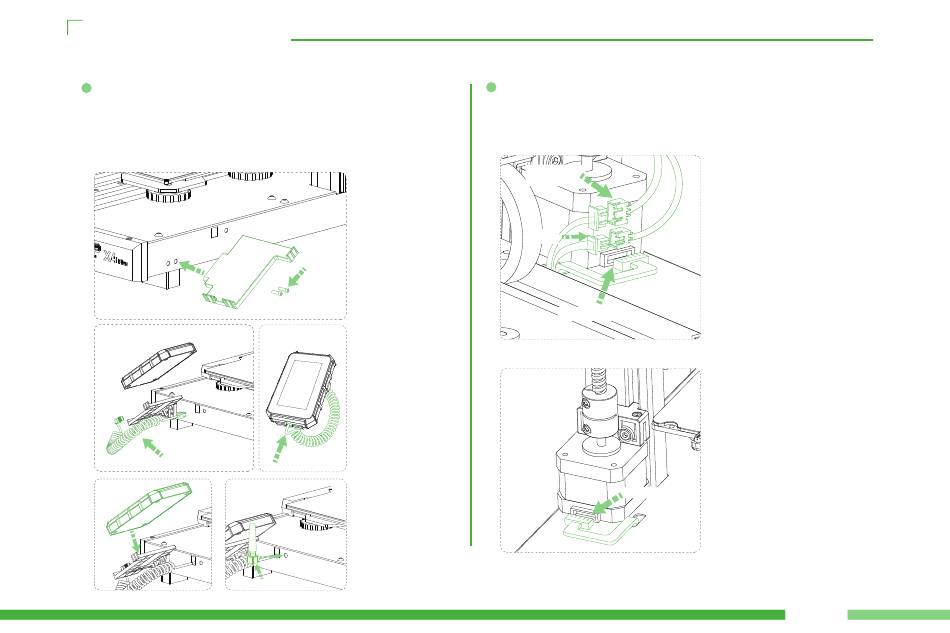

Fix the screen bracket on the right side of the machine with two M3*12
5
screws (screw bags④) (as shown in Figure a);
Connect both ends of the telephone line to the right side of the
machine and the screen port respectively (as shown in Figures b and c);
Place the display screen on the screen bracket. Connect the WIFI
antenna (as shown in Figures d and e).
b
Display cable
d
a
M3*12
c
e
WIFI Antenna
Insert the 3pin line of broken material detection into the broken materi-
6
al detection port; Then insert the 2pin line of the top LED lamp into the
LED lamp port; Finally, insert the 4pin wire of the motor into the motor
ports on both sides of the Z axis.
Material break
detection
LED light
Z-axis machine
left Z-axis machine
Z-axis machine
Right Z-axis machine
05
