3. Introduction to the Equipment Screen Interface
3.3 Boot Guide

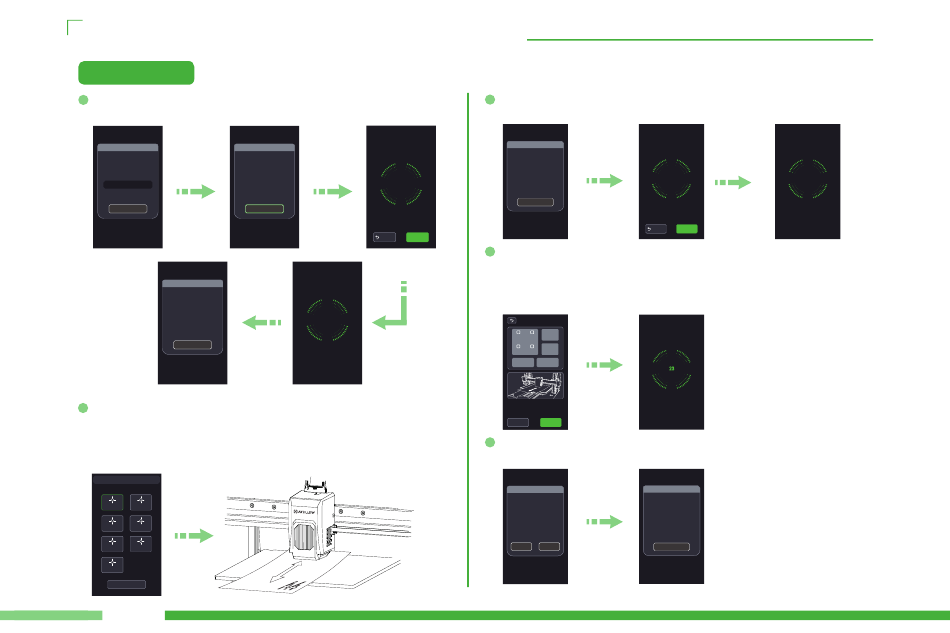

When starting the machine for the first time, it enters the boot
1
program. Please follow the prompts on the screen.
1/6
Self-est
Wait for the nozzle temperature to
heat to 210 ° C and start adjusting
the nozzle temperature
Cancel Next step
3/6
In order to ensure the
accuracy of the model, the
system will carry out manual
leveling
Next step
Place a piece of A4 paper between the nozzle and the hot bed, move
2
the nozzle to 7 points in turn by operating the touch screen, Adjust the
knob at the bottom of the hot bed to ensure that the height from the
nozzle at seven points to the printing platform is about the thickness
of A4 paper (0.08-0.1 mm)and click "Next" after completion.
Manual leveling
Point 1 Point 2
Point 3 Point 4
Point 5 Point 6
Point 7
Next step
10
2/6
Please make sure there is no
sundries on the nozzle
Return Next step
Please wait for the platform and
nozzle position to initialize.
Operate according to the screen interface prompts, and wait for the
3
platform and nozzle position to be initialized.
4/6
In order to ensure the
accuracy of the model, the
system will automatically level Please make sure there is no
sundries on the nozzle
YES NO
Next step
Return
4 Carry out the "Z=0" offset step, and adjust the Z axis to move up and
down, so that the height from the nozzle to the platform is about the
thickness of A4 paper (0.08-0.1 mm), and there is obvious friction feeling
when drawing A4 paper. Click next and wait for the automatic leveling step
to end.
Move up
0.01 0.05 Move up
0.01 0.05
Move down
0.1 1 Move down
0.1 1
Zoffset=0 Z=0
Zoffset=0 Z=0
Collecting 121 compensation values, please
Use the Move Up/Move Down key on the right to
wait......
Use the Move Up/Move Down key on the right to
adjust the height of the platform so that the leveling
paper has a slight friction between the nozzle and the adjust the height of the platform so that the leveling
paper has a slight friction between the nozzle and the
platform, and then click the key below.
platform, and then click the key below.
Save Save Next step Next step
After the consumables are loaded into the feeding hole and extruded
5
smoothly, click "Next" to insert the U disk with printed documents.
5/6
Load consumables into the feed Please insert U disk
hole and observe whether the
tailings are extruded. If not, please
click Load or Check
Load YES Next step NO Finish
Please wait for the platform and
nozzle position to initialize.
Next step
23
6/6
