AWG EVO Originalbetriebsanleitung Seite 38

AWG | Nozzles | Turbo nozzle EVO

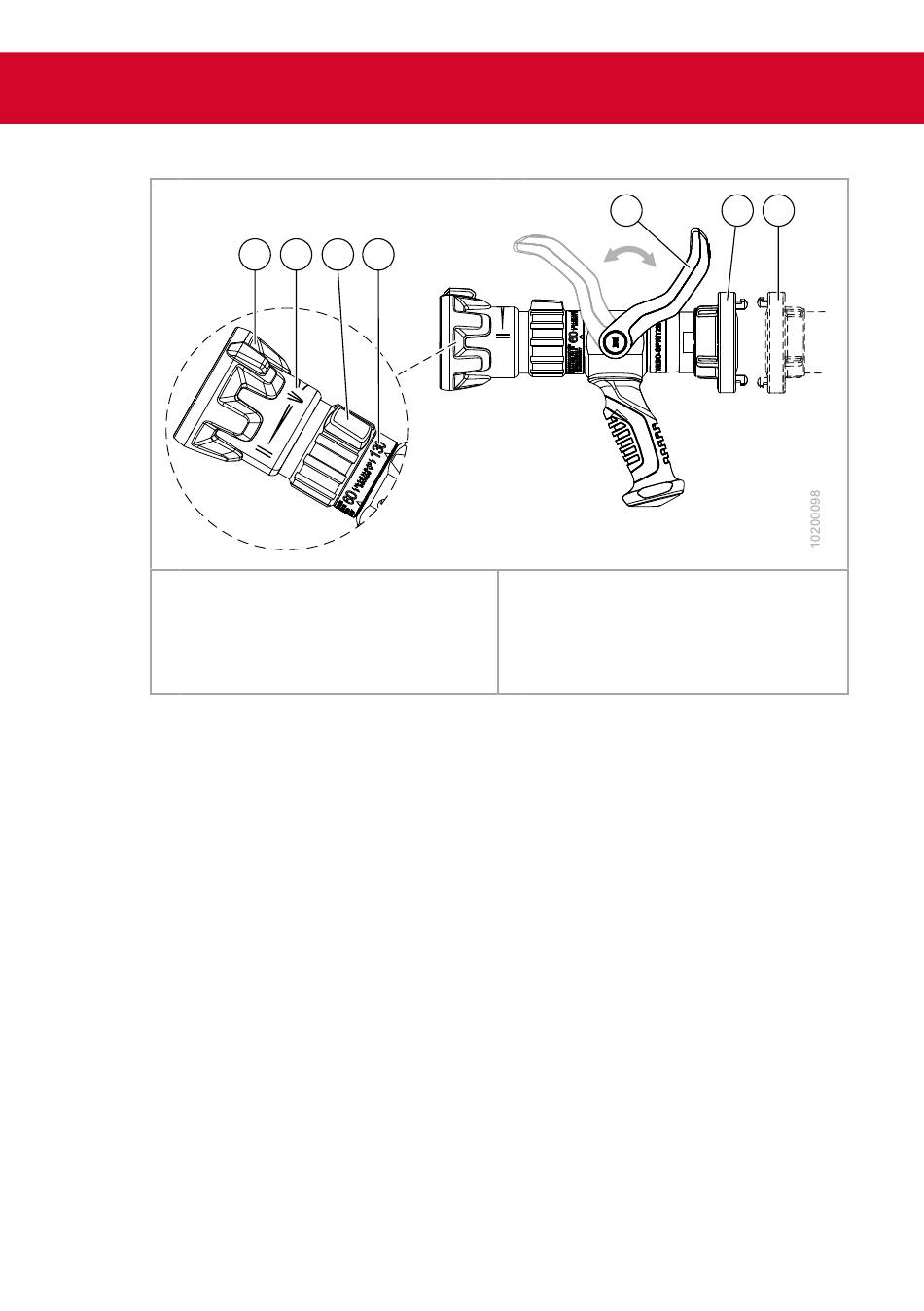

1
1
Protection ring
2 Jet form sleeve scale
3 Flow rate of adjusting sleeve
4
Flow rate scale
Fig. 6 Handling
Coupling the turbo nozzle EVO and adjusting the flow rate
1. By hand or with the use of a suitable coupling spanner, attach the
coupling of the water hose (Fig. 2/7) to the coupling on the turbo noz-
zle EVO (Fig. 2/6).
2. Set the adjusting sleeve (Fig. 2/3) to the desired flow rate (Fig. 2/4).
The pointer is in the middle position at the top, on the right (2 o'clock
position) for the small flow rate and on the left (10 o'clock position) for
the large flow rate.
Attention Turn the adjusting sleeve anti-clockwise beyond the maximum
3. Open the water supply.
The turbo nozzle EVO is ready for use.
M1129B10 | Rev. 02-08/24
2 3 4
position to set the flushing position. The pointer is at the bot-
tom (7 o'clock position). Do not use the flushing position in
the extinguishing insert unintentionally. The flushing position
is clearly visible through several detent points.
A
5
5
Hand lever
6 Turbo nozzle EVO fixed coupling
7 Water hose adapter
USE
B
6 7
