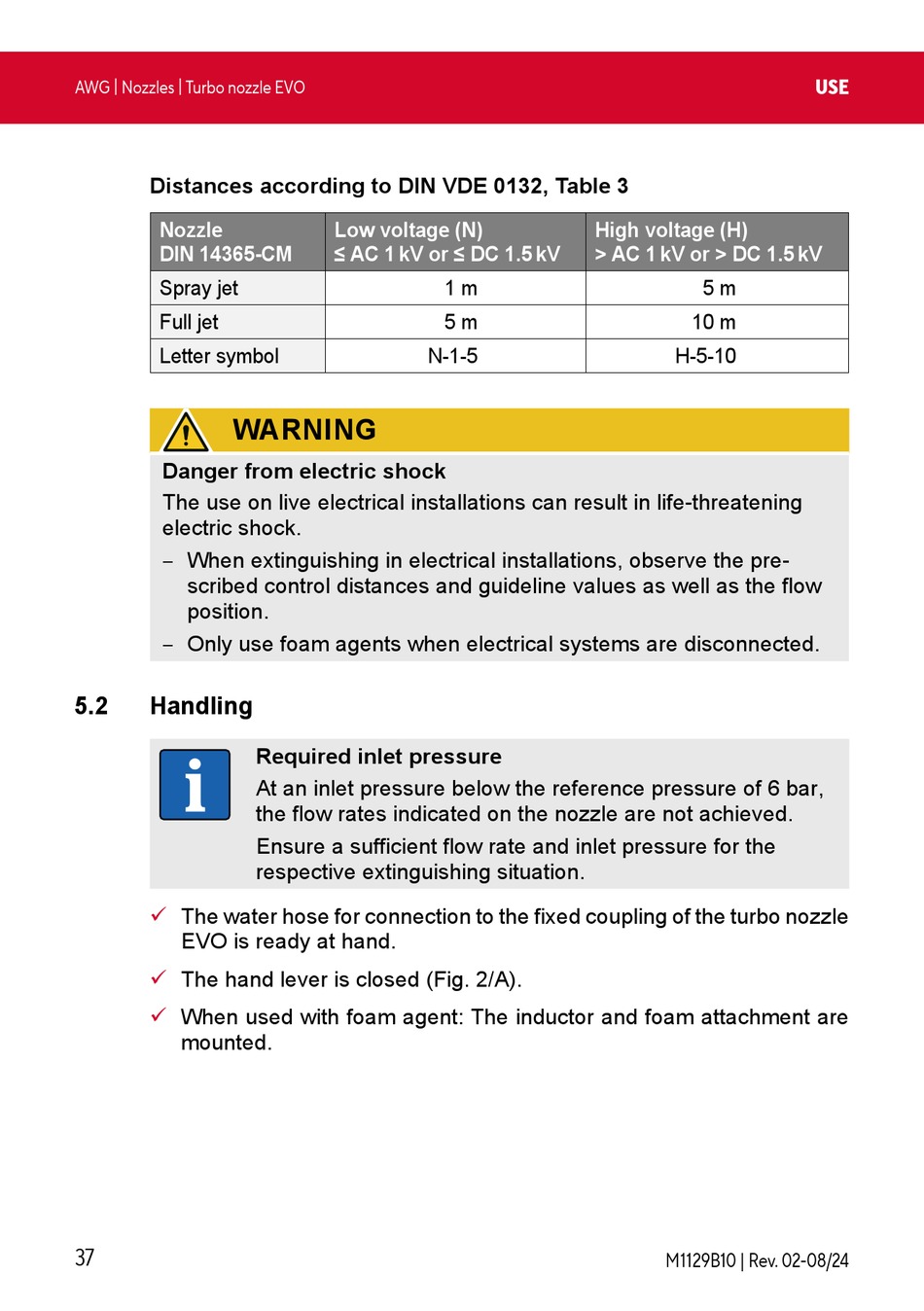

AWG | Nozzles | Turbo nozzle EVO
Distances according to DIN VDE 0132, Table 3
Nozzle
DIN 14365-CM
Spray jet
Full jet
Letter symbol
WARNING
Danger from electric shock
The use on live electrical installations can result in life-threatening
electric shock.
– When extinguishing in electrical installations, observe the pre-
scribed control distances and guideline values as well as the flow
position.
– Only use foam agents when electrical systems are disconnected.
5 .2 Handling
The water hose for connection to the fixed coupling of the turbo nozzle
9
EVO is ready at hand.
The hand lever is closed (Fig. 2/A).
9
When used with foam agent: The inductor and foam attachment are
9
mounted.
37
Low voltage (N)
≤ AC 1 kV or ≤ DC 1.5 kV
N-1-5
Required inlet pressure
At an inlet pressure below the reference pressure of 6 bar,
the flow rates indicated on the nozzle are not achieved.
Ensure a sufficient flow rate and inlet pressure for the
respective extinguishing situation.
High voltage (H)
> AC 1 kV or > DC 1 .5 kV
1 m
5 m
USE
5 m
10 m
H-5-10
