AWG | Fittings | Inductors FD Z2 and Z4
Versions
ID No .
20232600
20232633
20231600
20231633
20232733
This table lists the common Storz adapters.
Versions without adapters are marked "Anschluss BSP" (British Standard Pipe thread).
These devices are equipped with a pipe thread in accordance with ISO 228 that can be
used to mount further adapter systems.
For versions not listed in the table, the values for the BSP connection apply; the respecti-
ve adapter system is not taken into account.

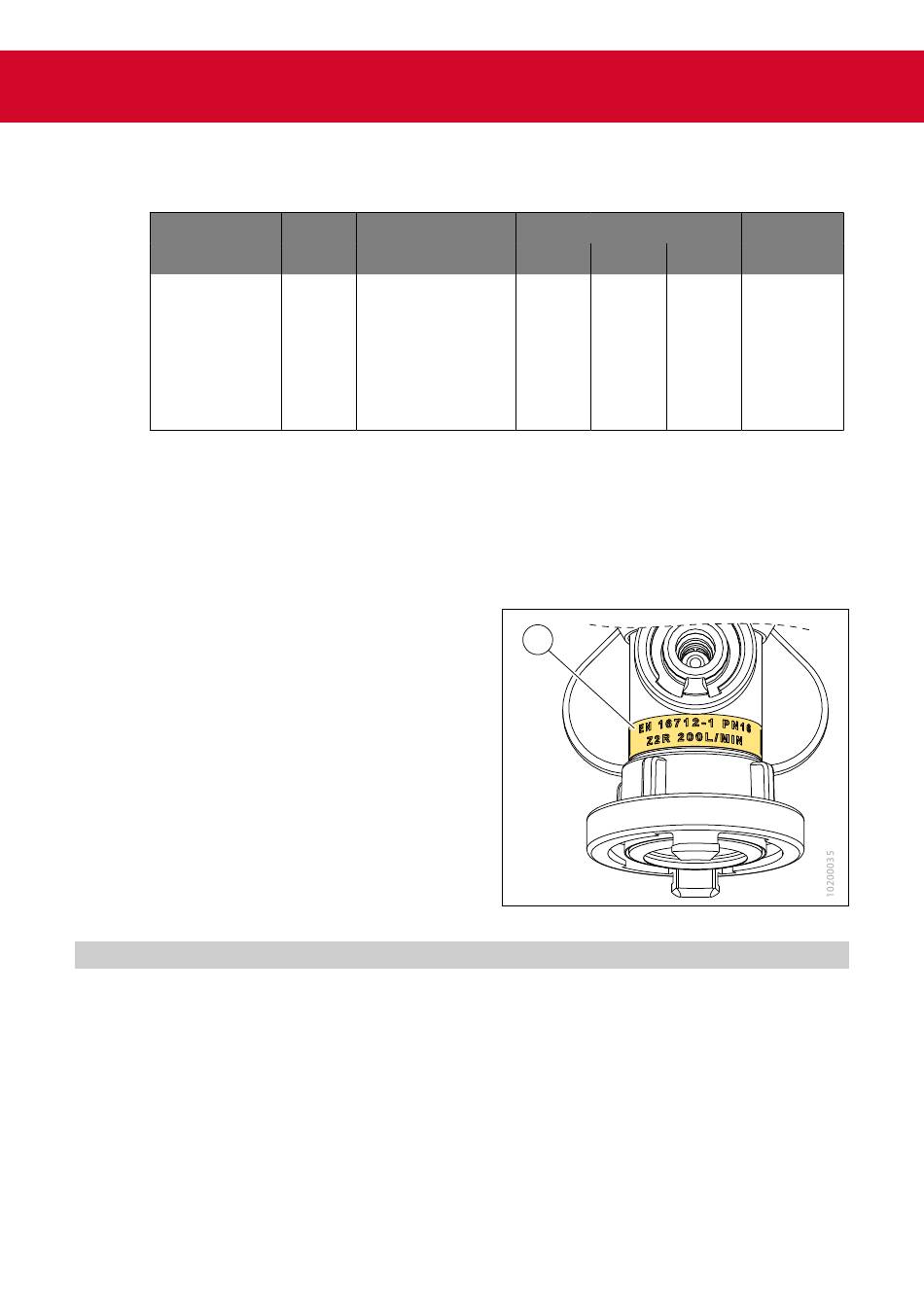

Inductor colour code
Information sign in acc.
with EN 16712-1
Z2 Yellow
Z4 Red
Suction hose (accessory)
DN19 with D-coupling
4

Delivery, transport, storage

4 .1

Delivery

The Inductor has been carefully packaged at AWG Fittings GmbH.
>
After unpacking, check the delivery for damage and verify completeness.
>
Any damage must be immediately reported to the carrier.
>
If parts are missing, immediately inform the responsible specialist
dealer or AWG Fittings GmbH.
29
Type Connection
Z2 BSP G2" (male)
Z2 Storz 52 (C)
Z4 BSP G2" (male)
Z4 Storz 52 (C)
Z4 Storz 75 (B)
dElivEry, tranSport, StoragE
Dimensions [mm]
L W H
228 120 155
294 120 155
228 120 155
294 120 155
294 120 155
1
M1008B10 | Rev. 03-08/24
Weight
[kg]
2.0
2.5
2.0
2.5
2.7
