AWG | Fittings | Inductors FD Z2 and Z4
3 .4

Characteristic values

Flow rate at 5 bar
Pressure loss
(at 2-3 bar counter pressure)
Max. operating pressure
Admixing rate
Operating temperature
3 .5

Overview

1
1 Fixed coupling inlet side
2
Nozzle body
3 Suction device
4 Setting sleeve
5
Setting scale

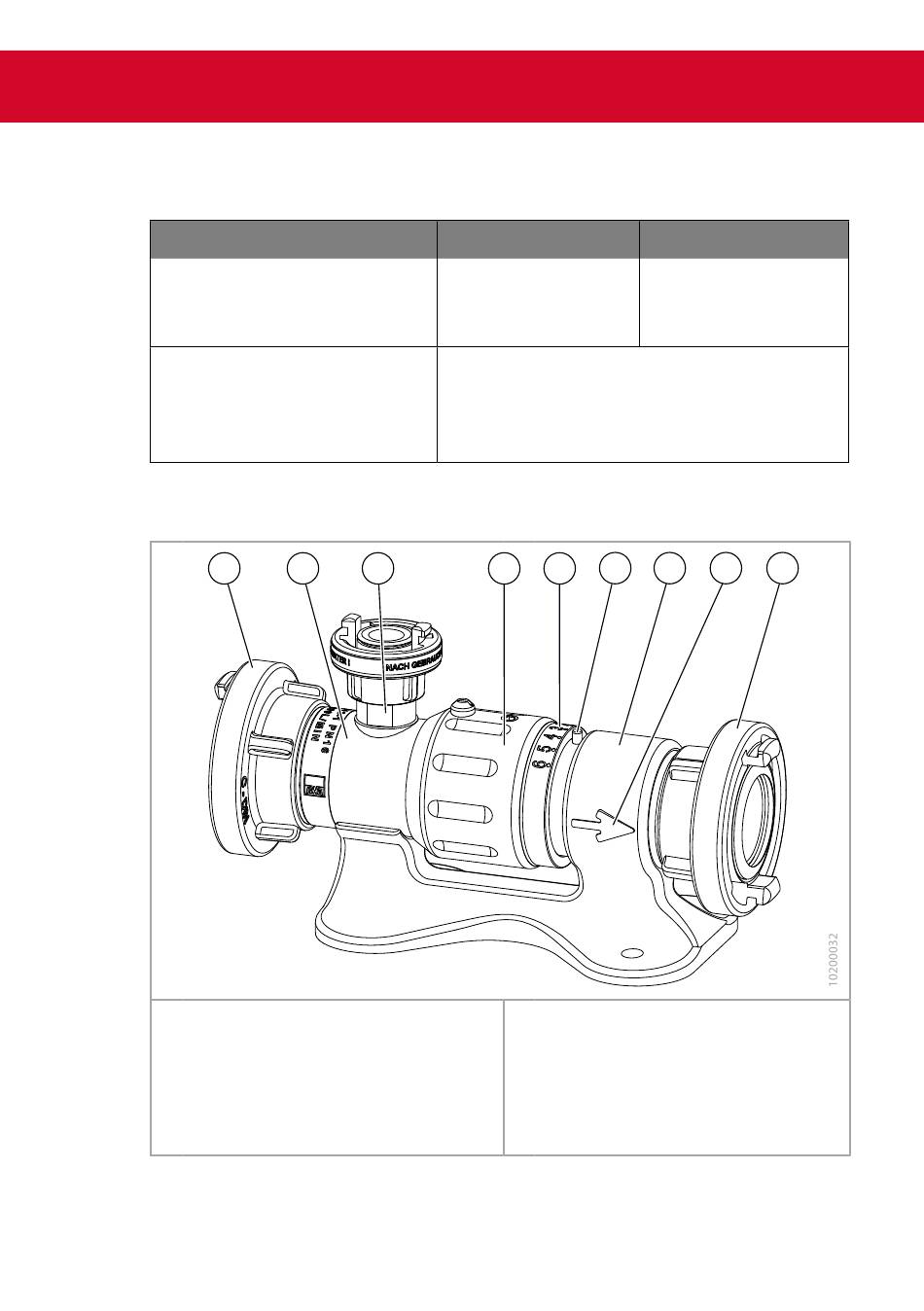

Fig. 1 Overview AWG Inductors FD
M1008B10 | Rev. 03-08/24
Z2
200 l/min
45 % – 50 %
2 3
Z4
400 l/min
45 % – 50 %
16 bar (PN16)
0.1 / 0.2 / 0.5 / 1 / 2 / 3 / 4 / 5 / 6 %
- 20 °C** to + 60 °C
* with running water
4 5 6 7
6 Pin
7
Base stand
8 Arrow indicating flow direction
9 Fixed coupling outlet side
dEScription
8 9
