Pit Boss 10600 Handbuch Seite 5

Part# Description
1 Cooking Grids (x4)
2 Cooking Grid Support Brackets (x8)
3 Damper Vent (x2)
4 Back Handle (x1)
5 Logo Plate (x1)
6 Cabinet Door Handle (x1)
7 Cabinet Door Latch (x1)
8 Cabinet Door (x1)
9 Main Cabinet (x1)
10 Wood Chip Tray Lid (x1)
11 Wood Chip Tray Assembly (x1)
12 Water Pan (x1)
13 Water Pan Support (x1)
14 Cabinet Base (x1)
15 Support Bar (x1)
16 Support Panel (x2)
17 Meat Probe (x1)
18 Grill Probe Bracket (x1)
19 Power Cord Bracket (x1)
20 Bottom Chamber Assembly (x1)
21 Support Legs (x4)
22 Locking Caster Wheel (x2)
23 Caster Wheel (x2)
24 Grease Tray (x1)
25 Power Cord (x2)
A ¼–20x⅝" Screw (x4)
B ¼–20x½" Screw (x28)
C #10–24x½" Screw (x32)
D #10–24 Lock Nut (x2)
E M5 Locking Washer (x2)
F #5–32x½" Screw (x2)
G Spare Hardware
NOTE: Due to ongoing product development, parts are subject to change without notice. Contact
Customer Care if parts are missing when assembling the unit.
MODEL UNIT ASSEMBLED (WXHXD)
550MM X 1,190MM X 510MM
PB
PBV3DU1
/ 21" X 46" X 20"

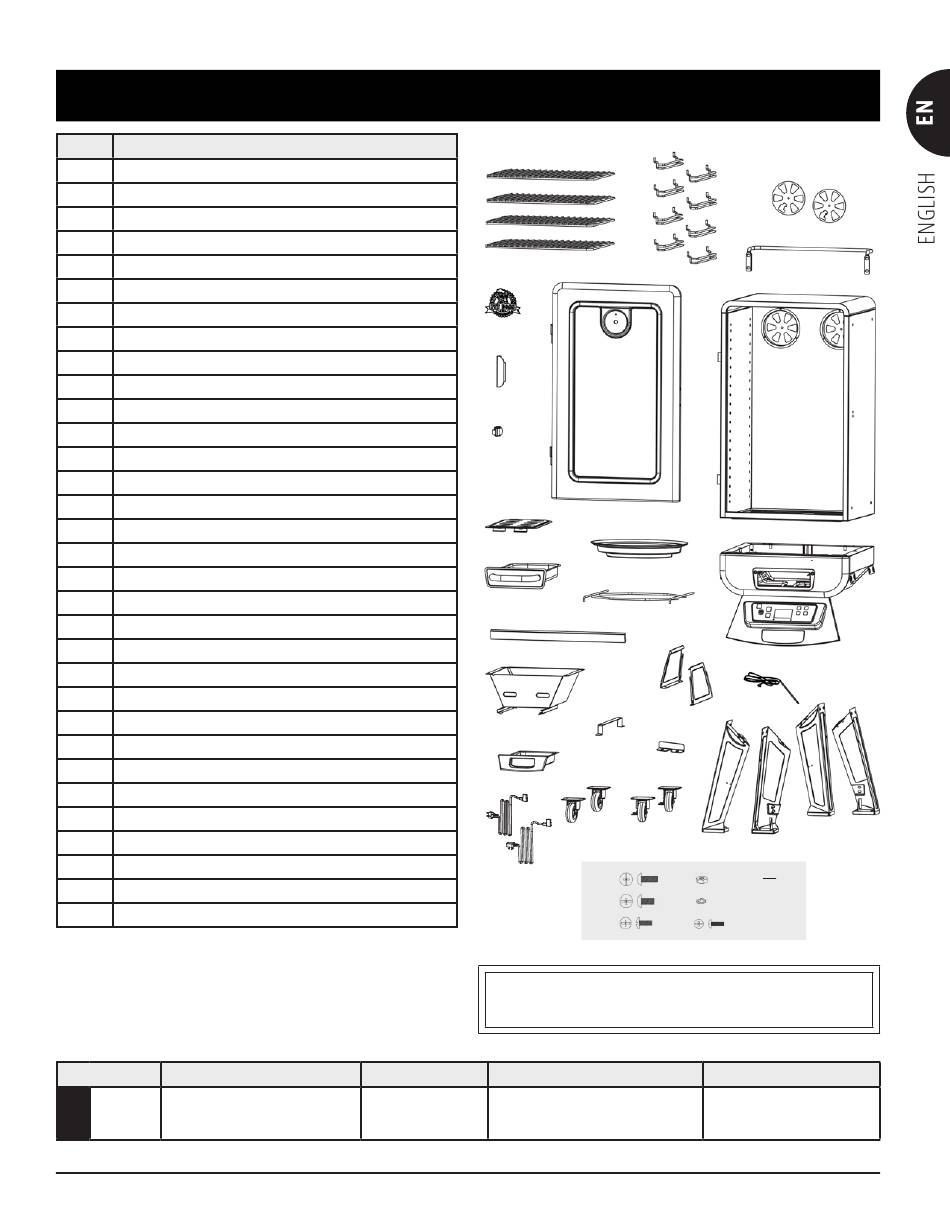

PARTS & SPECS
1
5
6
7
10
11
15
20
24
25
PB – ELECTRIC REQUIREMENTS
220-240 V, 50 Hz, 1650 W, GROUNDED PLUG
UNIT WEIGHT COOKING AREA
30 KG CUBIC COOKING: 0.07 M
/ 66 LB TOTAL - 4,424 CM² / 685 SQ. IN.
2
8
9
12
13
14
16
16-1
19
16-2
18
22
23
21-1
A D
B E
C F
TEMPERATURE RANGE
/ 2.7 FT 38-176°C
3 3
/ 100-350°F
3
4
17
21
21-3 21-4
21-2
G
5
