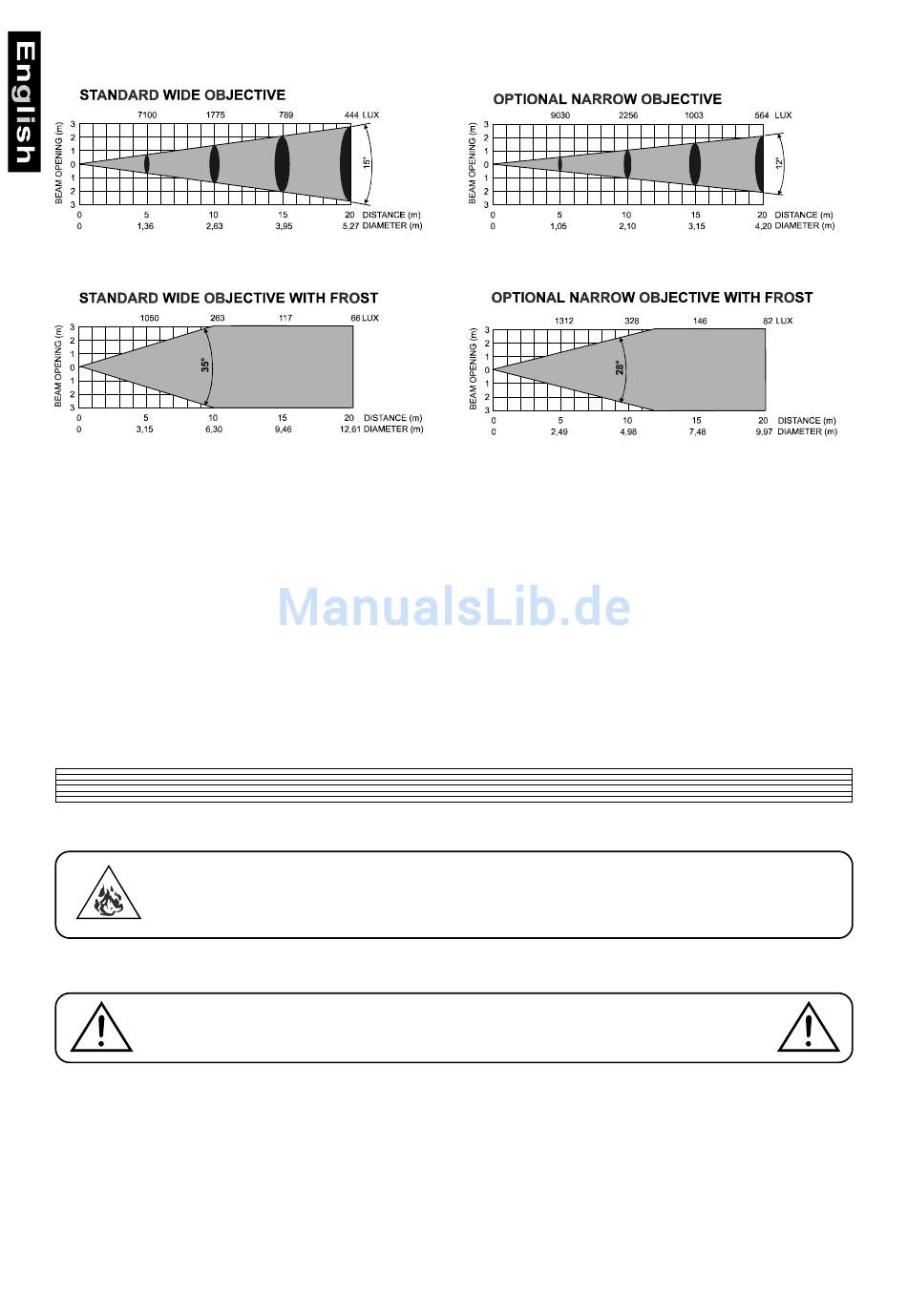

Futurelight Scan SC - 780
Powerful scanner with many features
For extremely bright 575 W HMI-lamp • 11 different, dichroic colour-filtres and white • Via 2 correction-filters, up to
36 different colours and semi-colours can be created • Motorized focus controllable via DMX • Rainbow-effect in
both directions • Gobo-wheel 1 with 11 static gobos, of which are 1 multicolor-dichro-gobo, 2 dichro-gobos and
open • Via the combination between dichro-gobos and color-wheel or multicolor-dichro-gobo even more colour-
combinations possible • Gobo-wheel 2 with 6 rotating gobos, of which are 1 metal, 4 glass-gobos, 1 dichro-gobo
and open • 5 additional metal-gobos are included • The rotating gobos can be turned by 360°, the adjusted position
is memorized • Effect-wheel with correction-filters 3200 K and 5600 K, frost-filter, UV-filter and rotating 3-facet-
prism • Strobe-effect with adjustable speed (1-10 flashes/sec.) via shutter • Shutter controlled via 2 stepper-
motors • Steplessly adjustable iris • 12 high-quality stepper-motors for smooth mirror-movements • 16-bit-resolution
or 8-bit-resolution for the mirror-movements (64 microsteps) • 15°-wide-angle objective (12° optional) • Reduced
noise via adjustable fan-power • Self-resetable thermo-fuse • Integrated control-unit for digital adjustment of starting-
address, lamp-operation, etc. • DMX-control via every standard DMX-controller • 14/16 DMX-control-channels
required • Suitable FUTURELIGHT controllers: C-64 MKII controller, C-128 controller, CP-192 controller

3. Installation

3.1 General instructions

DANGER OF FIRE !
When installing the device, make sure there is no highly inflammable
material (decoration articles, etc.) in between a distance of min. 0,5 m.
The projectors can be installed in any position without altering its operation characteristics.
Make sure that the device is fixed properly ! Ensure that the structure
to which you are attaching the projectors is secure
For fixing the projectors use the hole provided in the bracket. The hole in the adjustable mounting bracket has a
diameter of 10 mm.
For overhead use, fit a safety chain or cord.

3.2 Connection to the mains

Connect the projector to the mains with the enclosed power-plug.

3.3 DMX-512 connection / connection between projectors

Connect the controller to the projector or one projector to another only by a stereo shielded cable and 3-pin XLR-
plugs.
