HARDWARE INSTALLATION

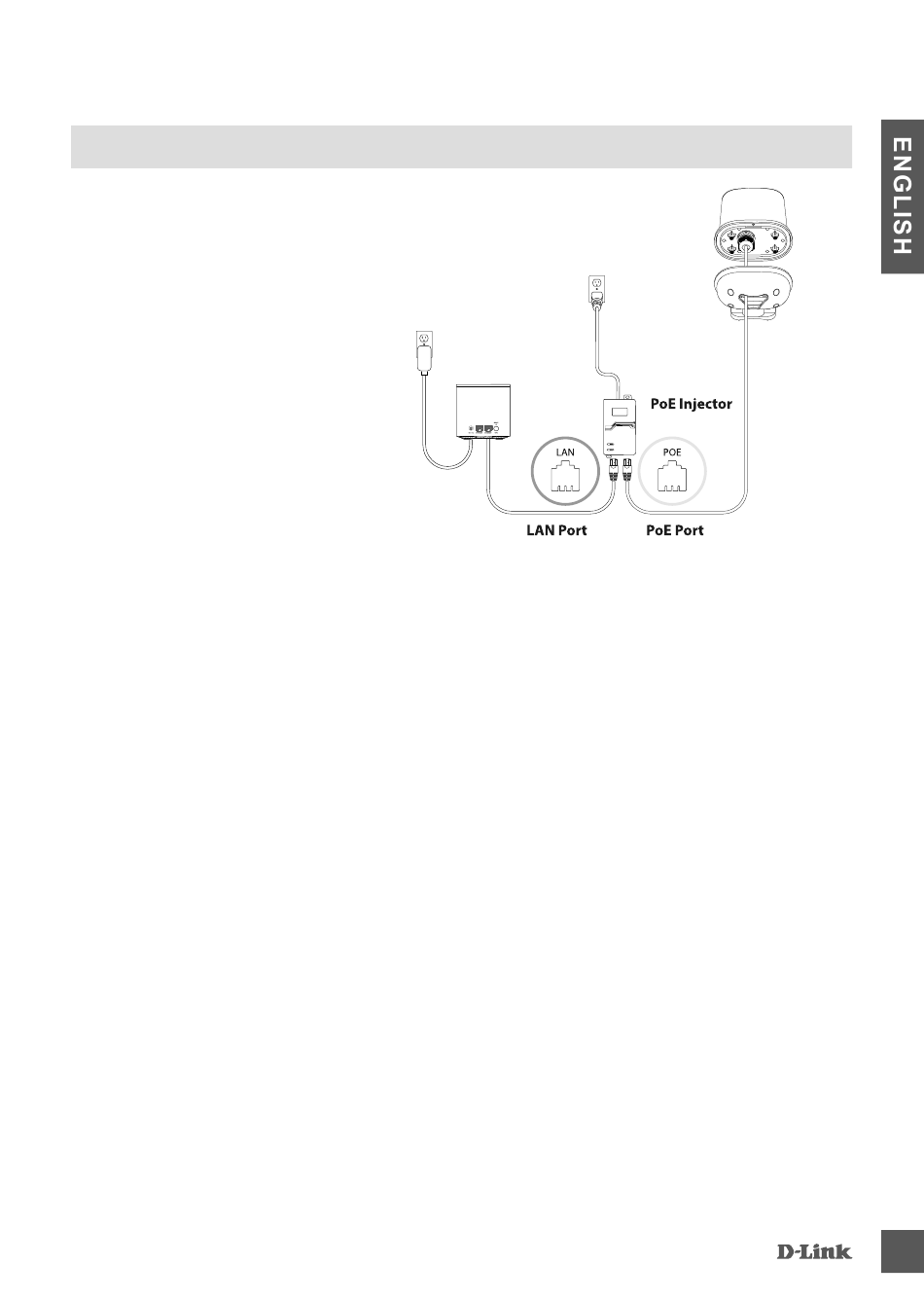

CONNECTING KIT DEVICES
Connect the end of the
10-meter RJ-45 cable to
the PoE Injector's PoE port.
Connect the PoE Injector
power cable to a power
source. Connect the 1-meter
Ethernet cable to the LAN
port of the PoE power
adapter and to the Internet
port on the M15/IDU device.
Connect the 12V power
adapter to power and to the
power port on the M15/IDU
device.
Note: If the included 1-meter
Ethernet cable is insufficient,
it is possible to use an
Ethernet cable (min. Cat 5)
up to 100m between the PoE
Injector and the M15/IDU
router.
