HARDWARE INSTALLATION

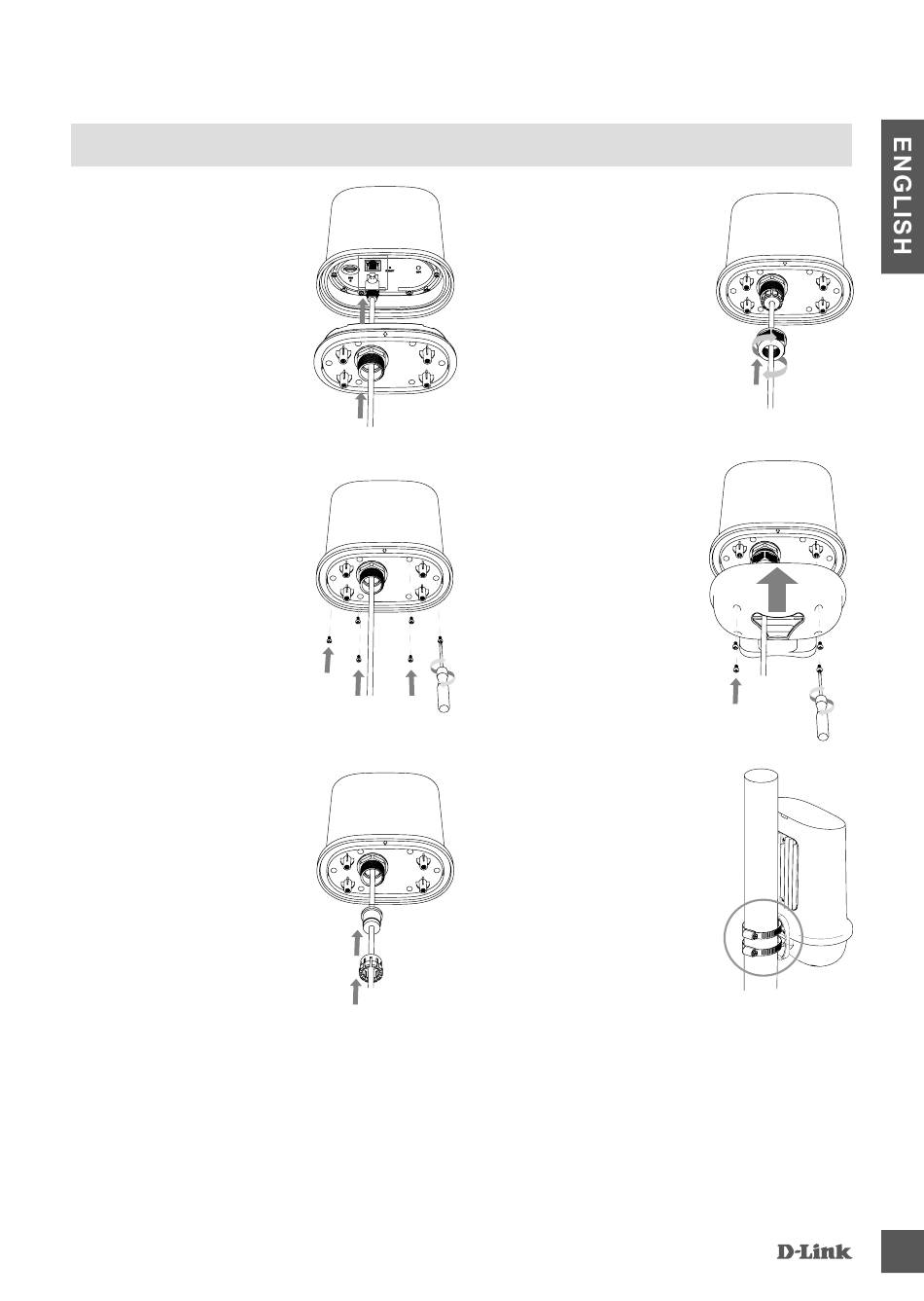

POLE MOUNTING
7. Pass the black
Ethernet cable through
the hole in the inner
housing and connect it
to the Ethernet port on
the device.
8. Tighten the screws on
the housing.
9. Reattach the RJ-
45 cable gasket and
plastic clip.
Note: Use only the flat
cable (10m) included
in the set.
DWP-1010/K T
10. Pass the cable and
tighten the black nut
on the inner housing.
11. Pass the RJ-45
cable through the
protective cover
and secure it with 4
screws.
12. Attach the stainless
steel clamps to the
DWP-1010/KT and
secure the device to
the pole in an optimal
position relative to
the chosen operator's
transmitter.
