HARDWARE INSTALLATION

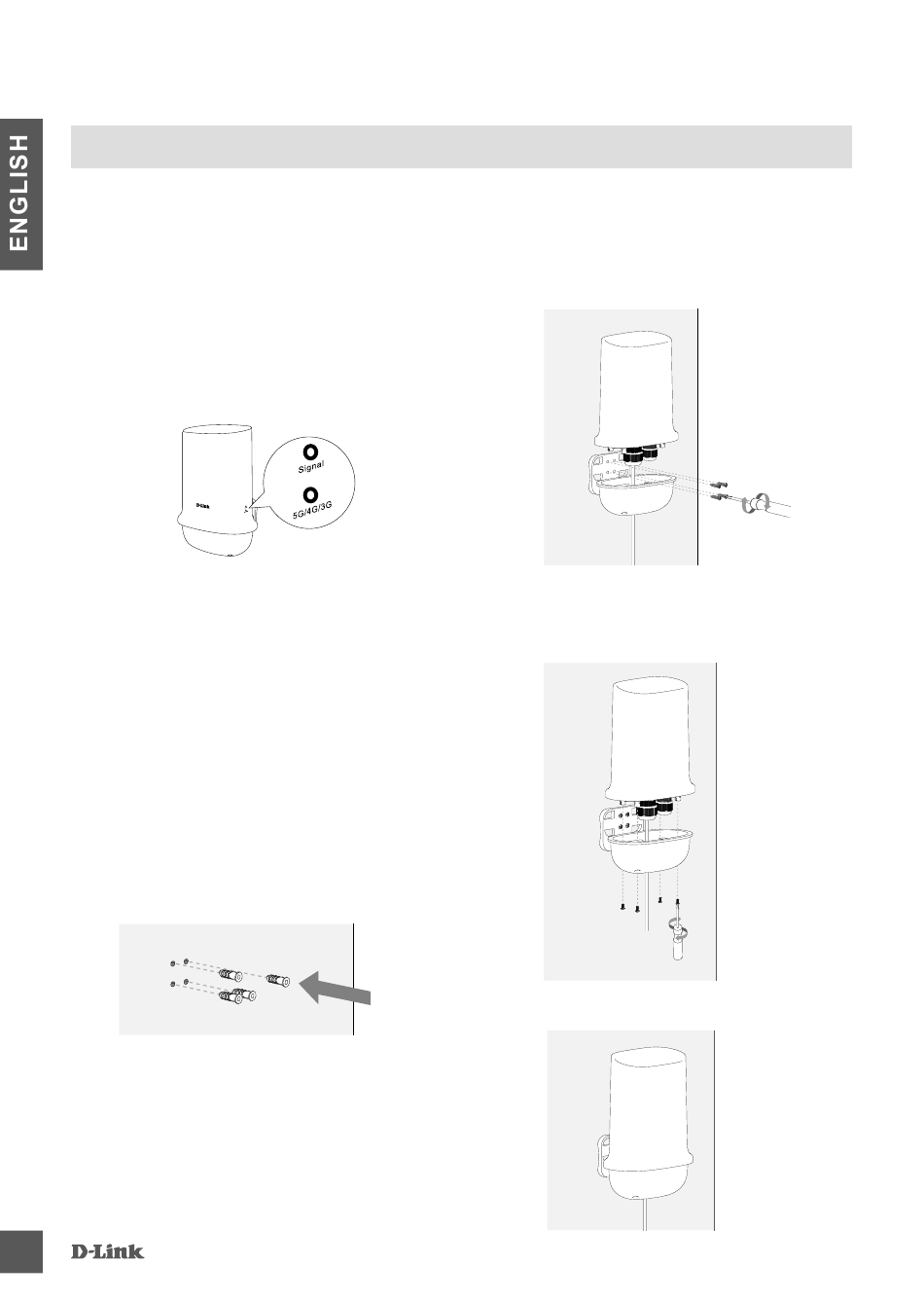

WALL MOUNTING
1. Perform steps 1-10 from the previous
pages and turn on the DWP-1010/
KT. Then determine the optimal
installation location in terms of radio
signal quality (see page 11). Then
place the DWP-1010/KT against the
desired spot on the wall.
2. After determining the installation
location, place the lower protective
cover against the wall to mark and
drill holes in the wall. Insert the
M6x25mm anchors into the drilled
holes.
6
3. Secure the lower protective cover in
place using the M35x16mm screws (4
pcs.). Pass the RJ-45 cable through the
2-4 hole in the lower protective cover.
RESET WIFI
PoE
SIM
4. Attach the DWP-1010/KT to the lower
2-5
protective cover using the M3x4mm
screws (4 pcs).
2-5
5. Installation is complete.
DWP-1010/K T
