HARDWARE INSTALLATION
POLE MOUNTING
Before starting the installation process, take a picture of the DWP-
1010/ODU label with "device password" information. This may be
helpful in case of device reset.

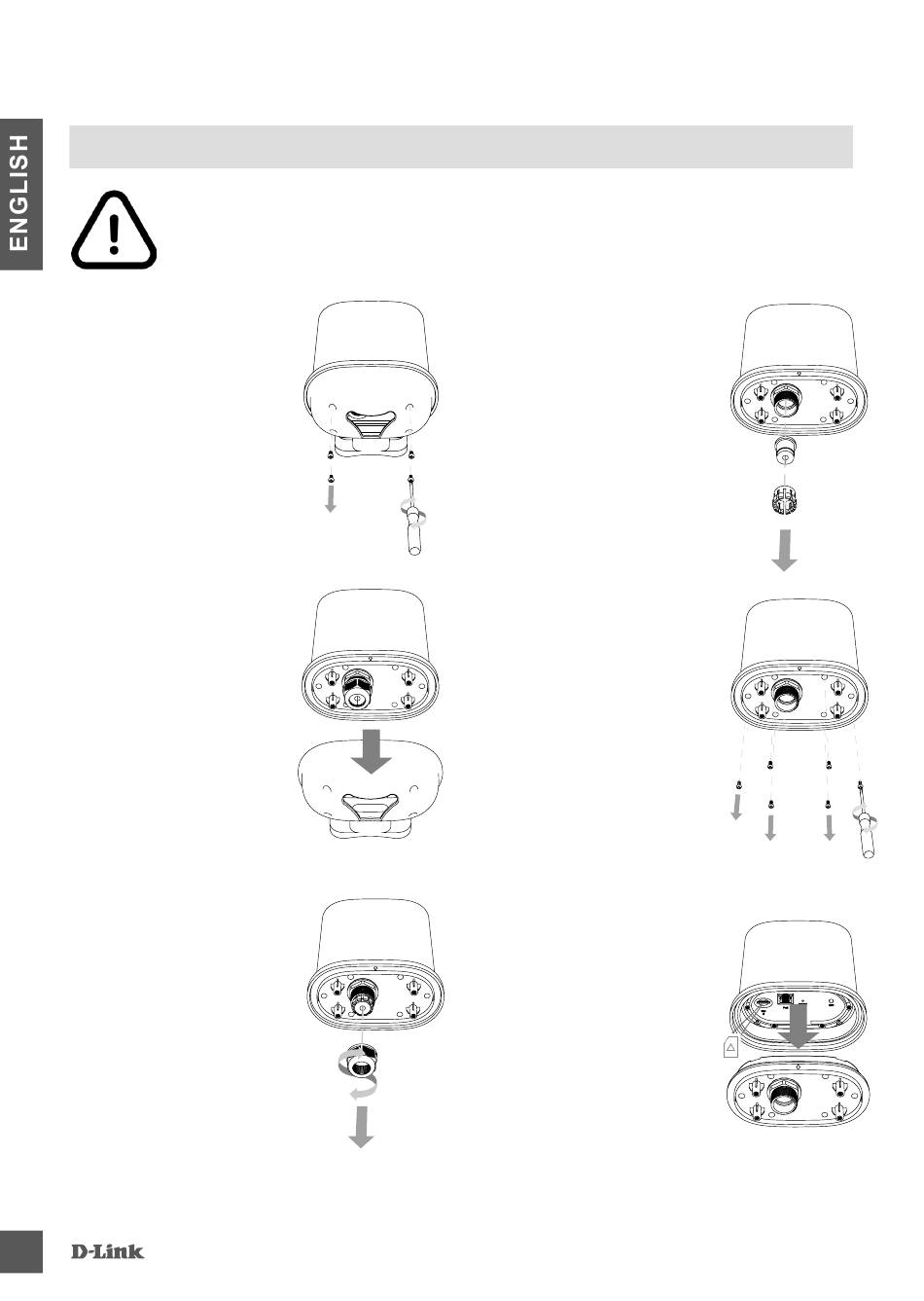

1. Unscrew 4 screws
at the bottom of the
DWP-1010/KT to
remove the protective
cover.
2. Remove the protective
cover.
3. Remove the protective
cover.Unscrew the
black nut on the
housing.
4
4. Before connecting the
RJ-45 cable, remove
the gasket along with
the plastic clip.
5. Unscrew 6 screws
located at the bottom
of the housing.
6. Remove the cover.
Then insert the
microSIM card* in the
correct orientation.
Remove the cover.
Then insert the
microSIM card*
in the correct
orientation.
