Duct connection for worktop depth > 600 mm

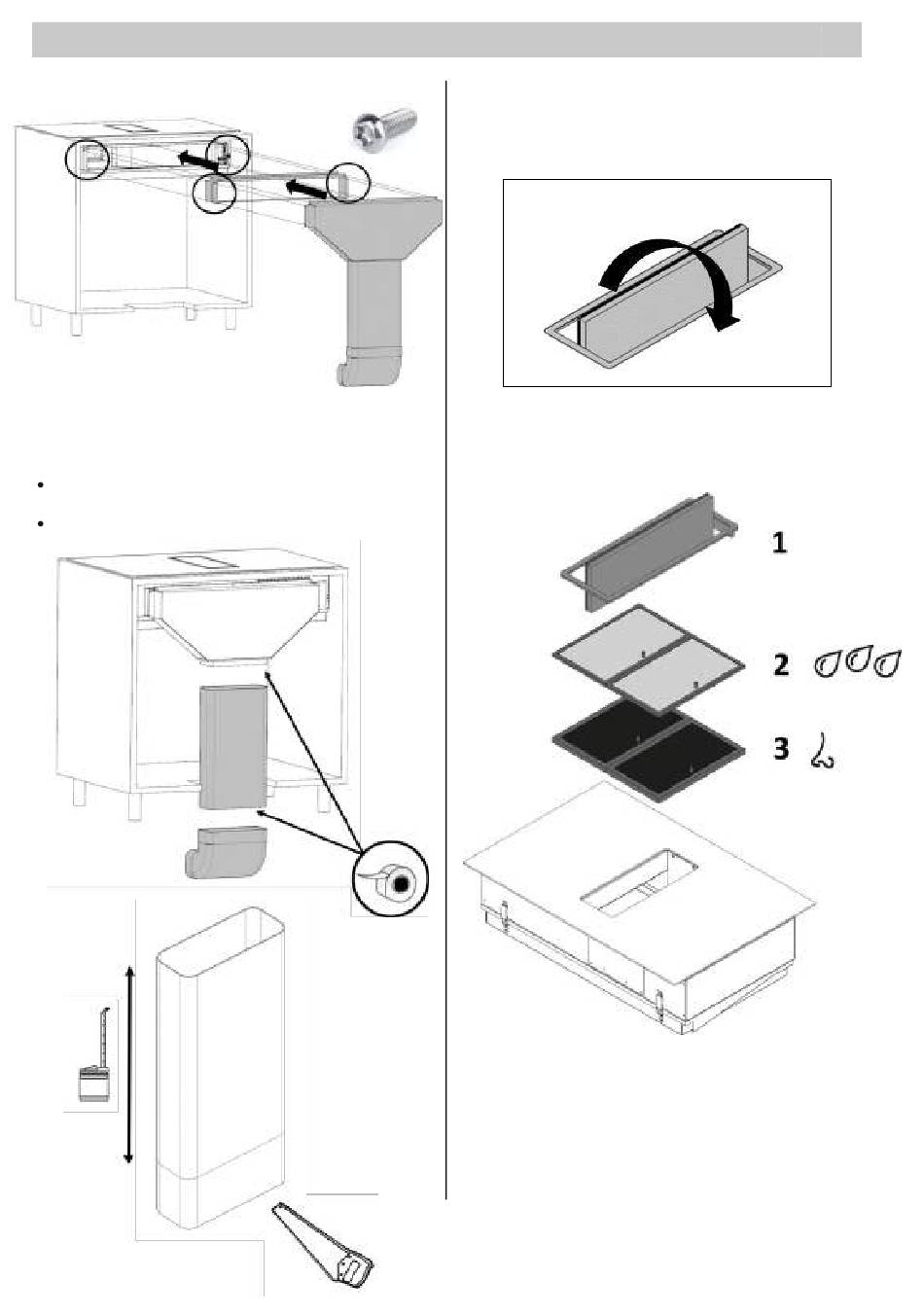

4.7.3 Connecting the duct pipes
Cut the vertical air duct according to the floor unit
height
Use the duct tape in order to seal the pipes
Installation
4.8 Inserting the filters
Remove the air inlet flap, by rotating the turnable part of
8 X
90 degrees.
Air inlet flap [1], grease filters [2] and carbon filters [3]
can be easily inserted/removed by hands.
See picture below.
