AKIMIX Wood Stove
3 Technical information

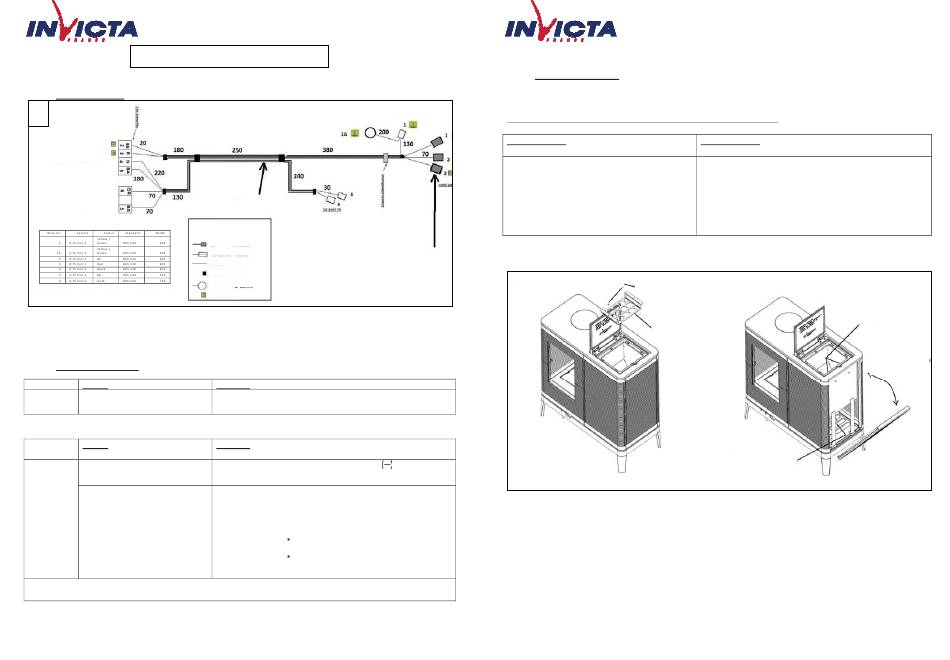

4. Wiring diagram:
1 indicator 4-way
green
Insulated pipe
1 indicator 3-way green
Screw Akz960
Pas 7.62 vert. 3 Pol.
LEGEND
5. Technical problems:
Cause:
Red and green There was a power cut and the supply was
LED flashing shut down automatically for security
alternately reasons.
Cause:
The granule The LED remains off after turning the dial.
feed screw is
blocked
Granules may have built up and blocked the
feed screw in the distribution tube. Possible
causes:
•
Recommended maintenance may not
have been carried out (cf. page 12)
•
The crucible may be incorrectly
positioned in its holder
•
The crucible seal may be damaged.
•
The hearth door seal might be
damaged
Info: the size and type of granules may affect the feed supply. But in general this has no significant effect on operation of the stove. Nevertheless, it is possible for a
qualified service professional to adjust for the size and type of granules.
SP, le 15/05/2018 Français – English - Deutsch
Reference 6190 34
Frame
Clip + PROTECTOR
Clip for switch / fuse
Clip 6.35 x 0.8 + THERMO
BARED AT 6 MM
WHITE-COLLAR 100 X 2.5
Round 6.5 int
POSITION ON APPARATUS
Solution:
Restart the appliance and set the dial to " granules " .
Solution:
•
Check that the main switch is on
•
and that the appliance is connected to the electrical supply
•
Contact the installer
•
Keep the stove turned off, do not make a log fire and contact a
qualified professional to unblock the feed screw:
o Turn off the main power switch and disconnect the power
cable
Carry out maintenance operations N°1 and N°2 (page 17)
o
Combine
o
the rotation of the screw with manual action on the
gear motor
free granules blocked in the screw by accessing them
from the combustion chamber
Page 37 sur 60
6. Technical operations
Intervention on the hopper and the gear motor (to be carried out only by a qualified service professional)
Feed screw
The electrical supply cable should be disconnected during maintenance.
Operation N°1
Remove a foreign object from the hopper:
• Remove the two screws which hold down
the grid
• Remove the protection grid
• Remove the foreign object
• Replace the protection grid
3 - Remove a foreign object from the hopper or intervention on the gear motor
Remove the two screws which hold
Operation N°1
SP, le 15/05/2018 Français – English - Deutsch
AKIMIX Wood Stove
Operation N°2
Intervention on the gear motor
• Carry out operation N°1
• Remove the two screws inside the hopper and hold
the side panel
• Remove the side panel
• Carry out these steps in reverse to reassemble.
Remove the
protection grid
Operation N°2
Access to the
gearing
Page 38 sur 60
Reference 6190 34
Remove the two side fixing
screws (accessible from
Remove the side
panel
