NOTE!
While the control elements are being tested, the hosepack should be flexed and
twisted along its entire length so that any breaks in the control line can be de-
tected.
Current load All the required inspection equipment and components for measuring the volta-
test/voltage ge drop of the power/water cable can be found in the "PP-SER-2002" test sche-
drop measure- dule.
ment
NOTE!
This type of test must only be carried out on water-cooled systems.
(1)
(3)
English

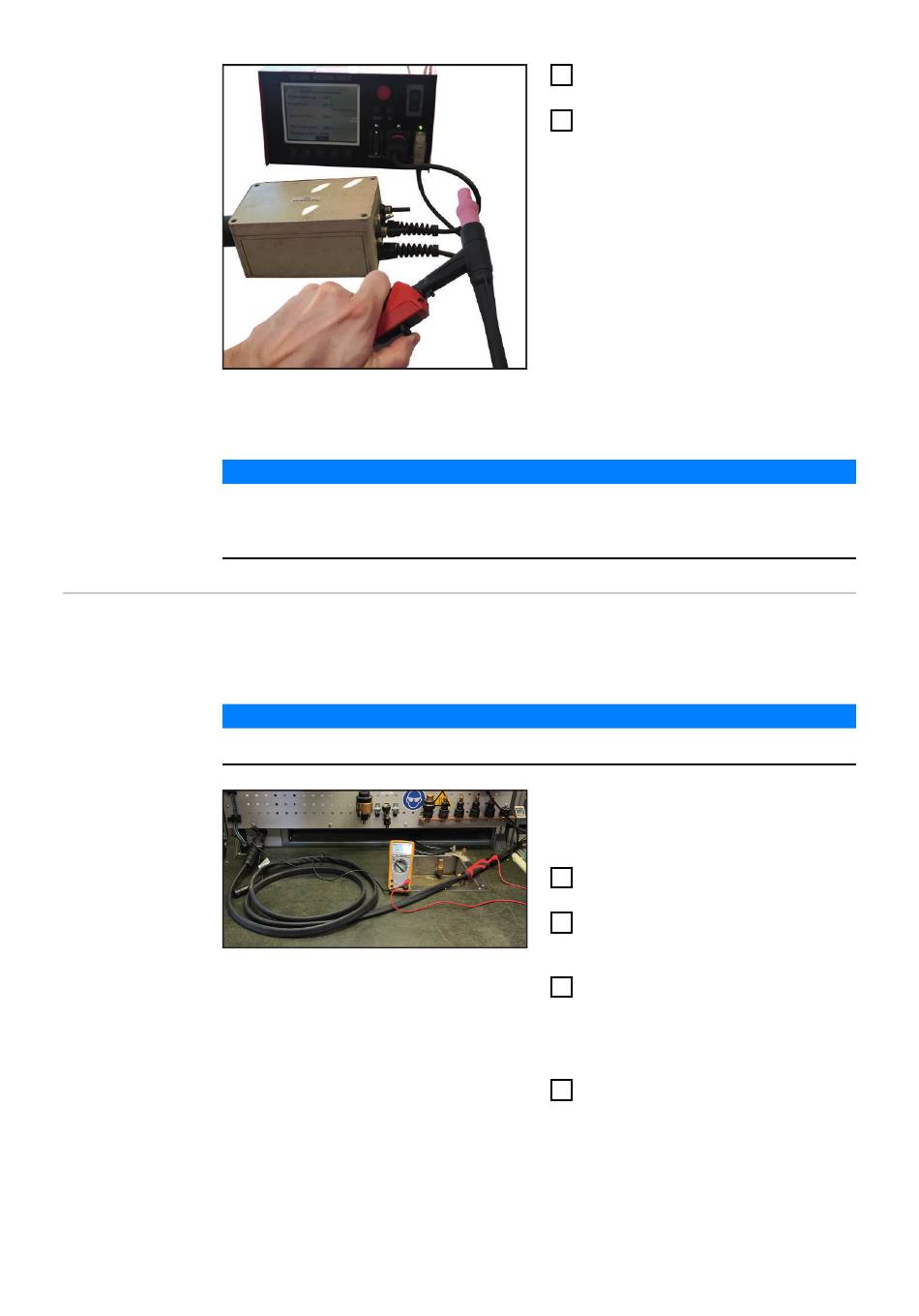

Connect control line with adapter
1
cable and connect to testbox
Press the buttons on the welding
2
torch and check the function via
the test box
Electrical test
Press left rocker switch forward
a)
for a long time = LED end crater
current
b) Press left rocker switch backward
for a long time = LED main current
c) Press right rocker switch forward
for a short time = LED Down
d) Press right rocker switch backward
for a short time = LED Up
e) Press LED button = welding torch
LED lights up during actuation of
the button
The limit values can be found in
the "PP-SER-2002" test schedule.
(2)
Connect the manual torch to the
1
power source (1)
Short circuit (ground) the torch
2
body via current load test adapter
(2)
Operate the power source in "elec-
3
trode mode" according to the test
schedule. Switch off the anti-stick
function and carry out a voltage
drop measurement
Read off the DC voltage drop via
4
multimeter (3) and compare with
the test schedule values
