MTB 700i W+ML:
A description of how to replace the gas nozzle holder is provided in the "Techni-
replacing the gas cal News 1501-001" newsletter.
nozzle holder The newsletter can be downloaded from the DownloadCenter.
Quantity Item number
2 42,0402,0285
English
Designation
O-ring Ø12x3mm FKM70

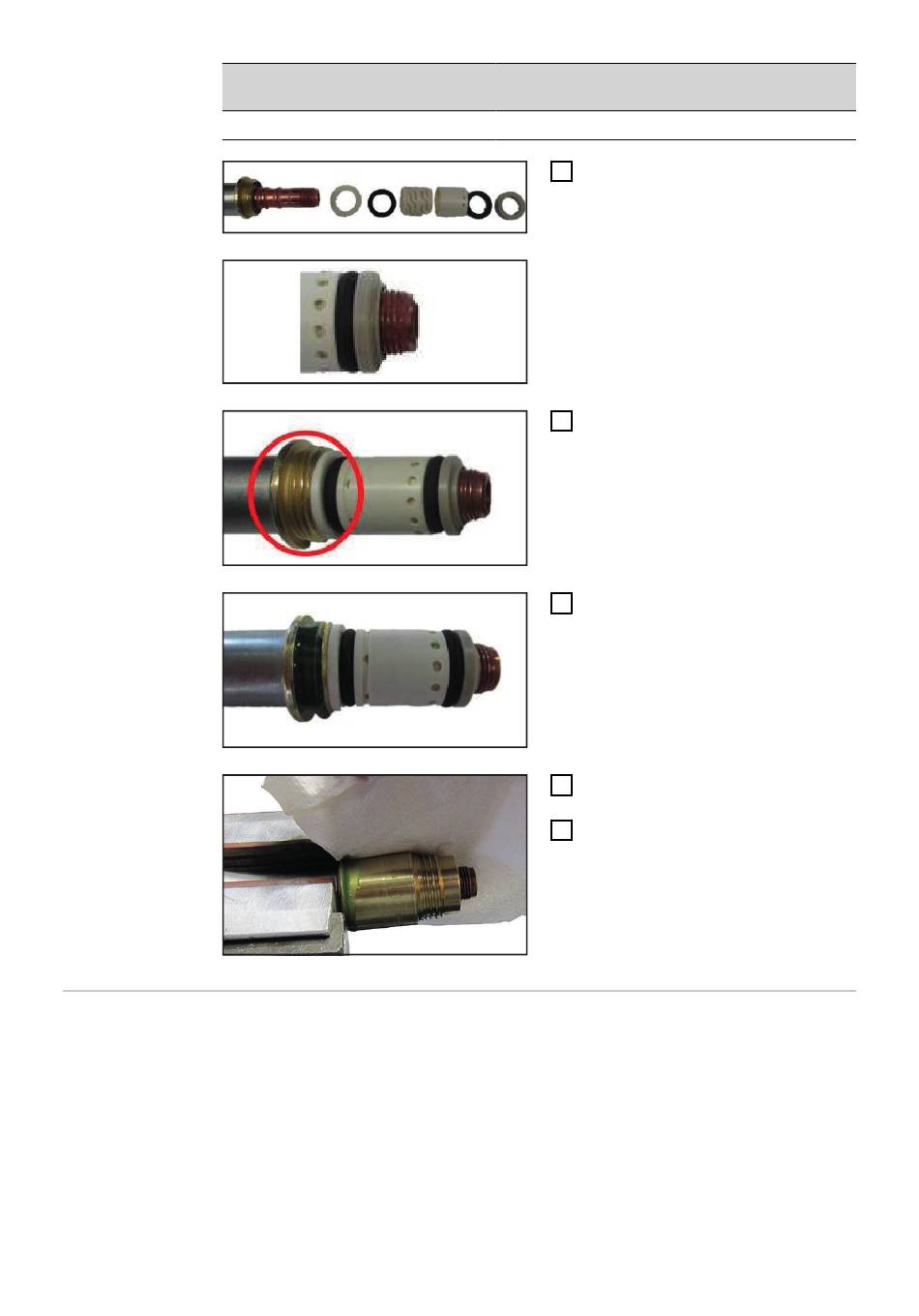

Fit the wearing parts in sequence
5
IMPORTANT! Using the ceramic tool,
the last insulation ring must be fitted
on the arc end.
Before fitting, attach the gas nozz-
6
le holder activator to the thread of
the outer tube
Apply Loctite 620 around the
7
thread as shown and quickly tigh-
ten the gas nozzle holder using the
gas nozzle holder tool kit and the
Holex torque wrench
Tightening torque = 16 Nm
Remove excess adhesive with a
8
cloth
Now fit all wearing parts to the
9
torch body
