3 Overview

NOTICE
■ This notice refers to risks which can result in
damage to property.
► Damage to property can be avoided by tak‐
ing the precautions mentioned.
2.3 Symbols in Text
This symbol refers to a chapter in this
instruction manual.
3 Overview

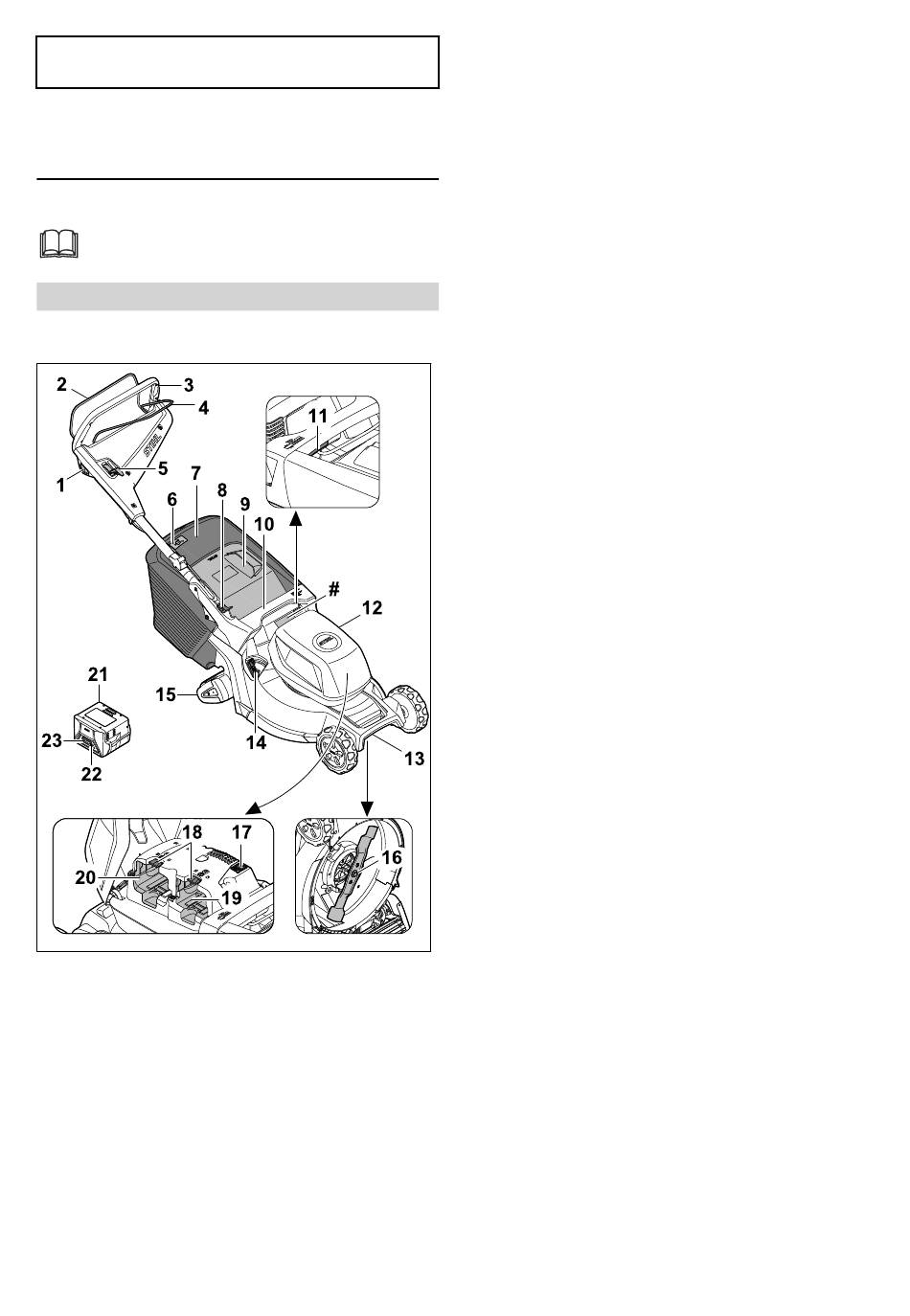

3.1 Lawn Mower and Battery
1 Locking button
The locking button switches the blade on and
off together with the control bar for mowing.
2 Control bar for mowing
The control bar for mowing switches the
blade on and off together with the locking but‐
ton.
3 Handlebar
The handlebar is used to hold, guide and
transport the lawn mower.
4 Control bar for self-propulsion
The control bar for self-propulsion engages
and disengages self-propulsion.
0478-131-9662-B
5 Lever
The lever is used to set the self-propulsion
speed.
6 Level indicator
The level indicator shows how full the grass
catcher box is.
7 Grass catcher box
The grass catcher box collects the mown
grass.
8 Lever
The lever is used to adjust and fold down the
handlebar.
9 Discharge flap
The discharge flap closes off the discharge
chute.
10 Handle
The handle is used to hold the lawn mower
when adjusting the cutting height and to
transport the lawn mower.
11 Lever
The lever is used to set the cutting height.
12 Flap
The flap covers the battery.
13 Transport handle
The transport handle is used to transport the
lawn mower.
14 Lever
The lever is used to open and close the inte‐
grated mulch flap.
15 Lawn roller
The lawn roller smooths the grass.
16 Blade
The blade mows and mulches the grass.
17 ECO switch
The ECO switch activates and deactivates
ECO mode.
18 Locking lever
The locking lever keeps the battery in the bat‐
tery compartment.
19 Battery compartment 1
Battery compartment 1 holds the battery.
20 Battery compartment 2
Battery compartment 2 holds a replacement
battery.
21 Battery
The battery supplies the lawn mower with
power.
English
33
