User manual / Bedienungsanleitung

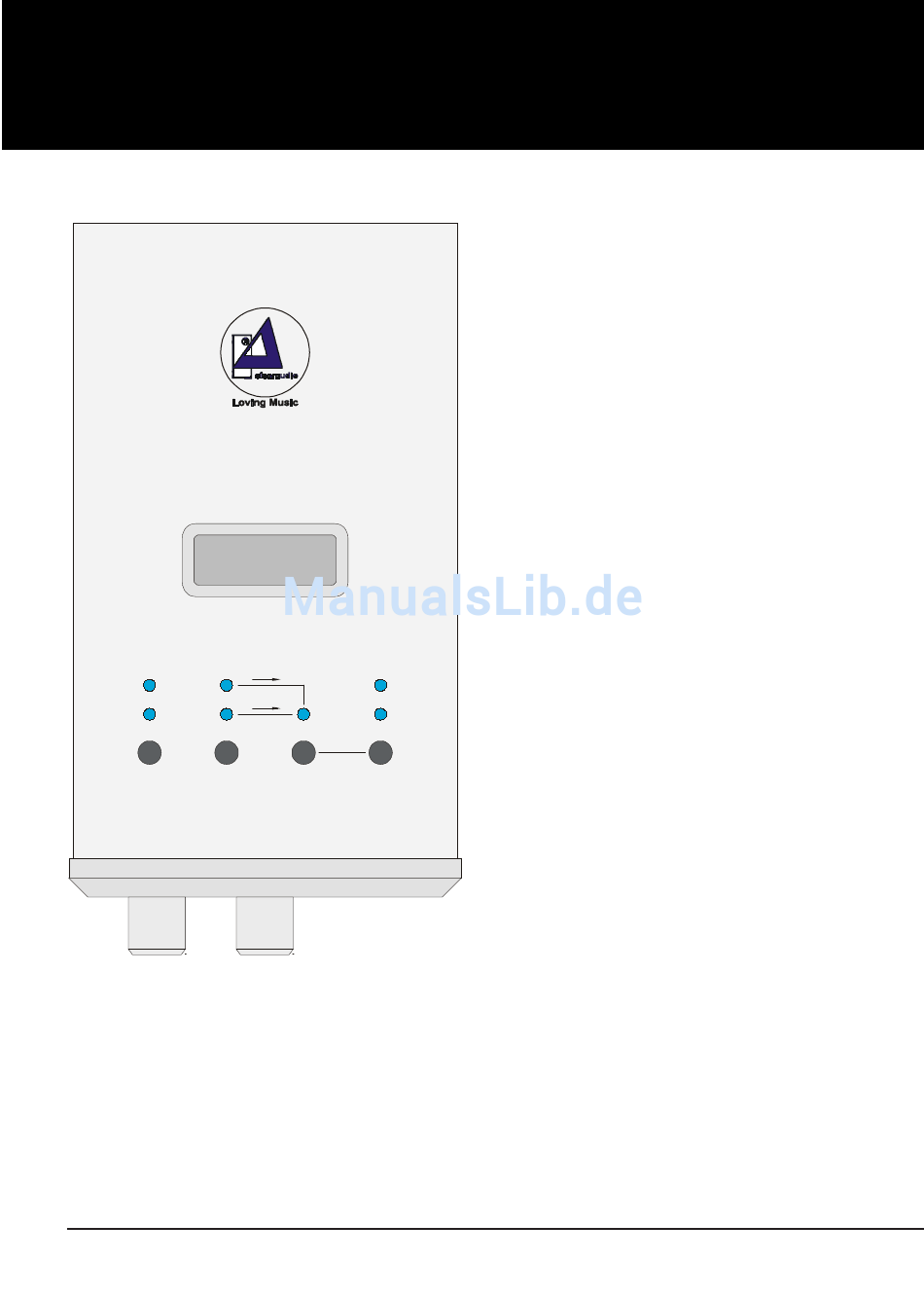

3. Operating elements

azimuth optimizer
MC R
MM L
MM / MC L / R
0dB-adjustment
headphone-volume control
6
R L
AZIMUTH
L R
CT PHONO
AZIMUTH
CROSSTALK / dB LEVEL / mV
Button MM/MC:
Switches the input sensitivity / amplification.
Position MM = 40dB,
Position MC = 60dB
Input impedance/Capacity:
MM = 47kOhm/220pF
MC = 400Ohm/220pF,
(the input impedance is adjusted automati-
cally).
Button L/R:
Switches to the signal-carrying channel of
the test-record
Button Crosstalk:
Activates the operation mode „Crosstalk"
Button „Level":
Pushing the button 'Level' will in combinati-
on with the test-record show the output vol-
tage of your cartridge in the display in mV.
Pushing both buttons 'Level' and 'Cros-
stalk' simultaneously, the main opera-
tion mode switches between "Phono"
and "Measurement".
In the measurement-operation mode the
LED "Azimuth" glows blue
