User manual / Bedienungsanleitung

2. Functional description

The Azimuth (the vertical position of the cartridge's diamond) is the main influence on channel ba-
lance, the frequency response and the cross talk between both channels of your cartridge. Optical
control of the azimuth adjustment is not sufficient nor precise enough to ensure accurate adjust-
ment of the cartridge's azimuth. The exact azimuth can only be determined when using an adequate
measuring instrument like Clearaudio`s azimuth optimizer. The azimuth optimizer measures the
cross-talk from the left to the right channel and vice versa. The ideal cartridge position is when the
azimuth has been adjusted accurately so that both measurement results are identical.
Additionally, you can measure the output voltage of your cartridge by using the operation mode «
Level » To use this operation mode it is necessary to set the input sensitivity to the MM-mode !
Further more there is a High-End phono-pre-amplifier built in as well, so that you are able to check
the sonical result of the correct adjustment in your music reproduction system.
An integrated head-phone amplifier makes mobile use of the azimuth optimizer possible!
All headphones with an impedance between 100 ohms and 600 ohms can be used.
azimuth optimizer
The Clearaudio
form the measurements and is included with your Optimizer.
For measurement, the following tracks of the azimuth optimizer test record are required:
Track 1 = Signal left channel 1kHz 0dB = 10cm/s (Peak)
Track 2 = Signal right channel 1kHz 0dB = 10cm/s (Peak)
...
Track 19 = Signal left channel 1kHz 0dB = 10cm/s (Peak)
Track 20 = Signal right channel 1kHz 0dB = 10cm/s (Peak)

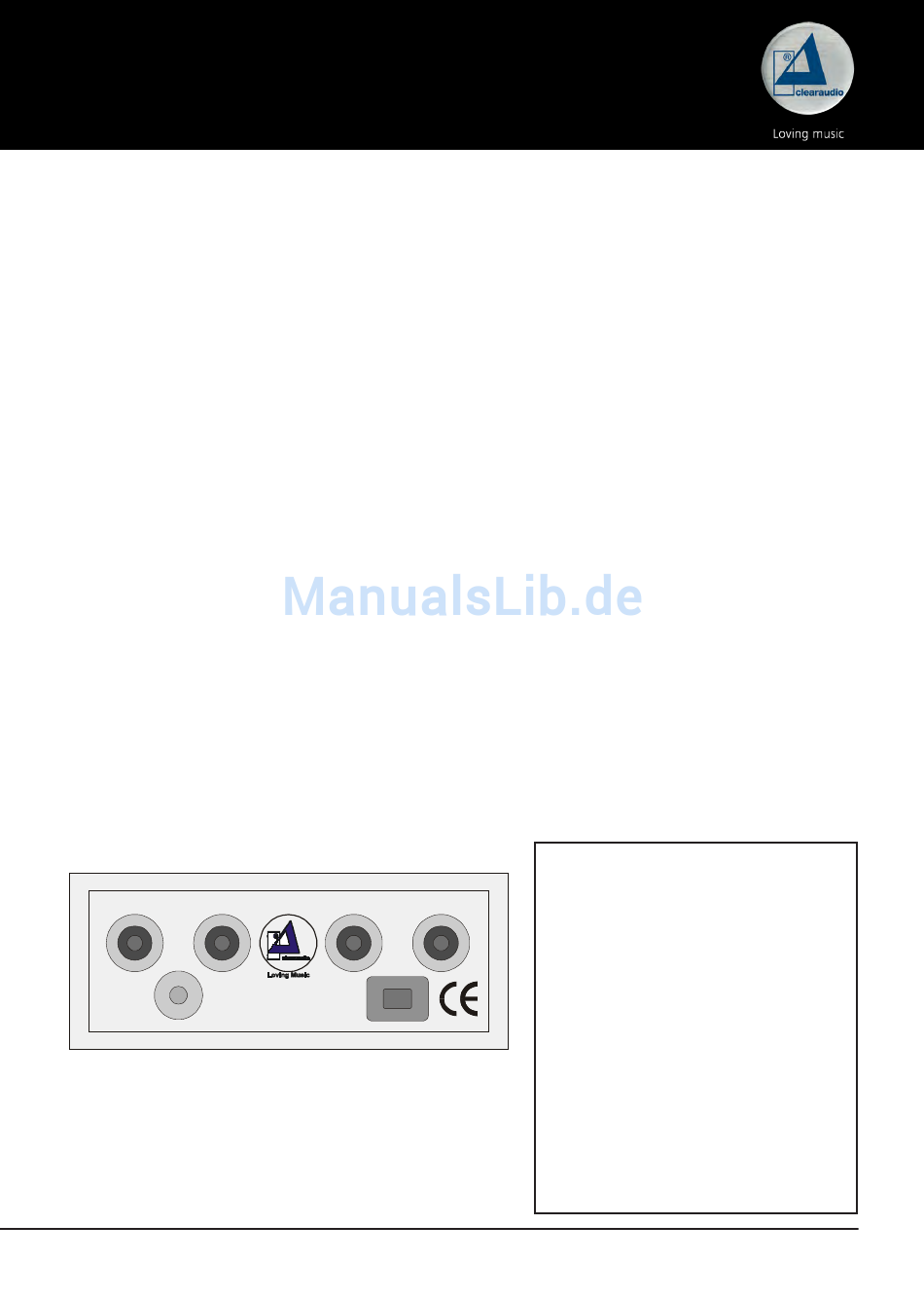

Connections at the back panel:
INPUT LEFT INPUT RIGHT
GROUND
Made in Germany
test record (Art. No.: LPT Azimuth 080108) is necessary to per-
OUTPUT LEFT OUTPUT RIGHT
POWER SUPPLY
DC 24 VOLT
INPUT LEFT; INPUT RIGHT:
Connect with the tonearm of the
record player
OUTPUT LEFT; OUTPUT RIGHT:
Connect with the preamplifier
GROUND:
Connect the grounding cable of
the tonearm
POWER SUPPLY:
Connect the power supply (24V
type:FW75550/24)
