Elpro 43
GB
Accessory
Input for pedestrian
opening
(M1 motor only)
Electric lock output
12 Vdc
Motor power supply
Engine slowdown
24 Vdc max 50 mA
relay output or
courtesy light
PC Board
power supply
INSTALLATION ON A SINGLE GATE
Motor power supply
ELECTRONIC CONTROLLER FOR DARDO 430 AND FOX 730
GATE OPERATOR ON DOUBLE SWINGING GATES

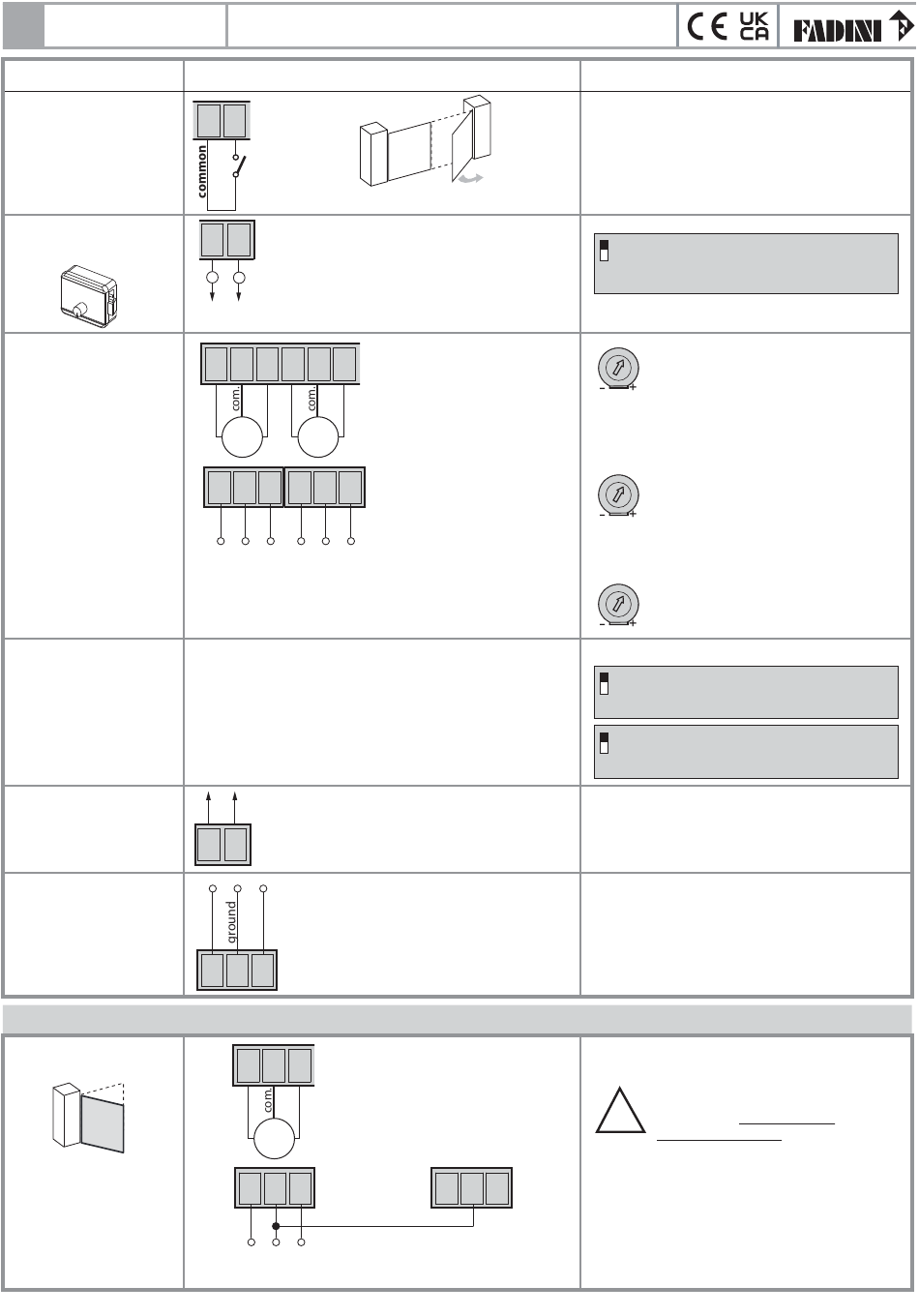

Electrical connections
15 16
Input for
pedestrian
opening
17 18
12 Vdc output
-
+
for the electric lock
A1 C1 B1 A2 C2 B2
M1 M2
D1 E1 F1 D2 E2 F2
ENCODER ENCODER
M1 M2
st
M1 = Dardo/Fox on the 1 gate leaf to open and being also the
pedestrian one, if required
M2 = Dardo/Fox on the gate leaf delayed on opening
During programming, the slowdown start point is automatically
defined.
It is possible to eliminate the opening and closing slowdown
using dip-switches 11 and 12.
Output voltage during operation and for a further 2
32 33
minutes at the end of the operating cycle
Control board power supply
230 V - 50 Hz
N F
A1 C1 B1
M1
D1 E1 F1
ENCODER
M1
M1
M1 = this output is to be used for
Dardo/Fox on a single mount
D2 E2 F2
14
Dip-switches and LED indication
of the various functions
DIP-SWITCH N° 7:
ON: stroke reversing pulse enabled for 2 s
in opening
7
OFF: stroke reversing pulse disabled
Trimmer Force during travel:
it controls the maximum force that
Dardo/Fox applies to the gate during travel
F.T. and in proportion the resistance on obstacle
contact.
The new setting of force will be performed
on the next open/close/radio command
Trimmer Force during slowdown:
it controls the maximum force that
Dardo/Fox applies to the gate during
slwdown phase and in proportion the
F.S.
resistance on obstacle contact. The new
setting of force will be performed on the
next open/close/radio command
Dwell trimmer:
from 1 s to 120 s
DIP-SWITCH N° 11 and 12:
ON: delete slowdown during opening
11
ON: delete slowdown during closing
12
Bridge B1 with B2 and carry on
!
programming excluding delay
mode on gate leaves
