DF30 and DF30T
No. Code
1 Table 1
2 Table 2
3 Table 3
4 Table 4
5 Table 5
6 Kit (558301)
7 755117
8 940380
9 Table 9
11 855420
12 940319
13 Table 13
14 Table 14
15 855414
16 940319
17 855646
NOTE: To identify proper repair kit for your pump, search for piece pump code in the nameplate of the pump. If that code corresponds to
55xxxx go to page 11, if that code corresponds to DFXXXXXXXXX go to page 12.
SAMOA Industrial, S.A. · Pol. Ind. Porceyo, I-14 · Camino del Fontán, 831 · 33392 - Gijón - Spain · Tel.: +34 985 381 488 · www.samoaindustrial.com

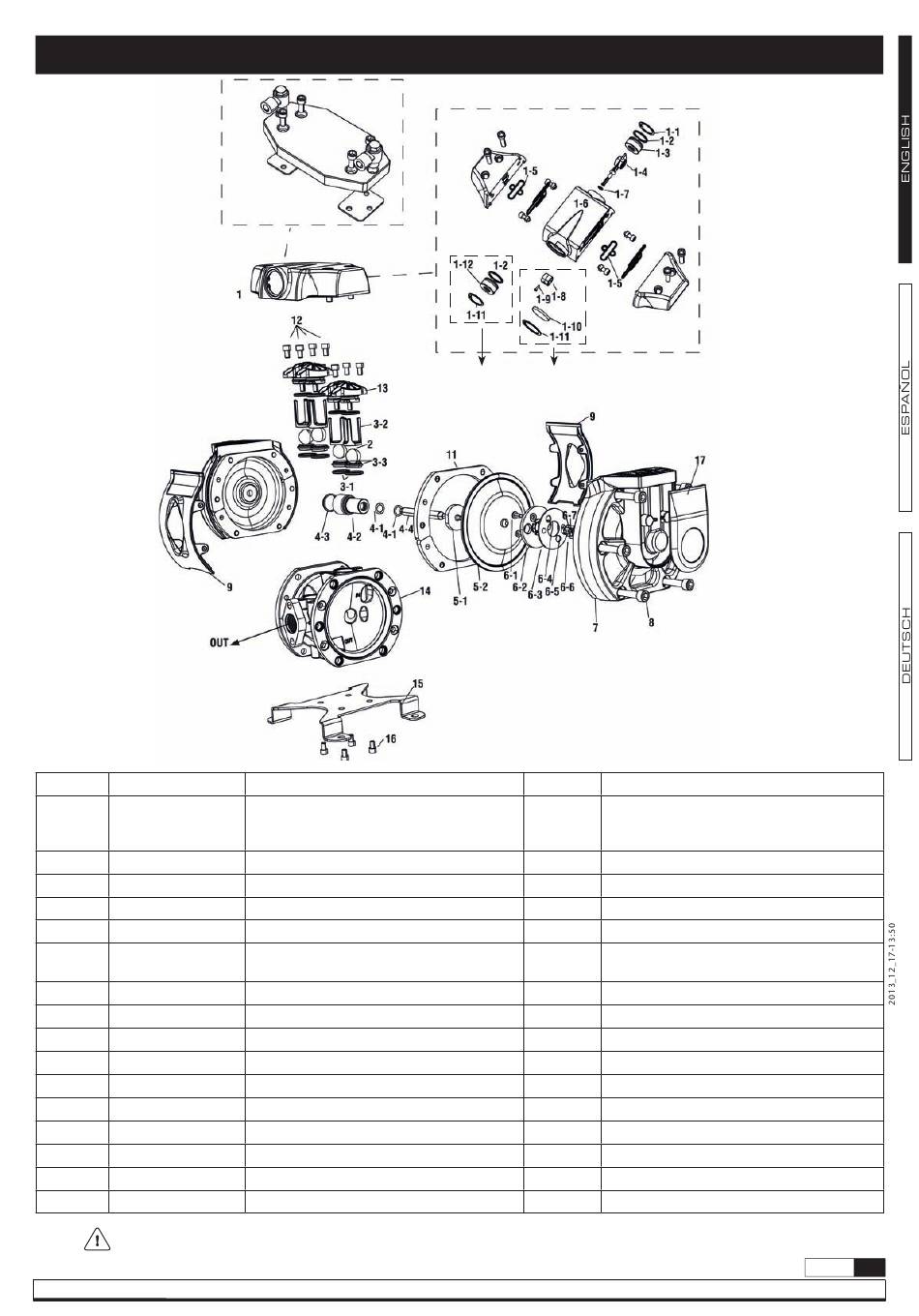

Composite body pump parts
Externally controlled
Description
Directional Valve
Balls
Ball check seats / O-rings / Ball guides
Bushing / Seal / Push rod
Diaphragms
Air sensors
Diaphragm cover
Diaphragm cover bolts
Pump shields
Diaphragm cover washers
Valves cap bolts
Valves caps
Body
Pump support
Support bolts
Cover
Driven Normal
exhaust exhaust
Qty.
1 Options:
-
-
-
-
- Not available in externally controlled models
2
12
2
4
8
2
1
1
4
2
Directional valve is sold as
kit. Assembled and verified in
Samoa facilities.
Notes
Normal exhaust
Driven exhaust
Externally controlled
(Not sold as a kit)
(Not sold as a kit)
(Not sold as a kit)
(Not sold as a kit)
(Not sold as a kit)
(Not sold as a kit)
(Not sold as a kit)
(Not sold as a kit)
(Not sold as a kit)
(Not sold as a kit)
R. 12/13 855 821
7
