Samoa DF30 Bedienungsanleitung Und Teileliste Seite 10

DF100
No. Code
1 Table 1
2 Table 2
3 Table 3
4 Table 4
5 Table 5
6 Kit (558301)
7 755111
8 940334
10 940914
12 940319
13 Table 13
14 Table 14
17 855604
21 Table 9
22 Table 9
23 855416
NOTE: To identify proper repair kit for your pump, search for piece pump code in the nameplate of the pump. If that code corresponds to
55xxxx go to page 11, if that code corresponds to DFXXXXXXXXX go to page 12.
10
855 821 R. 12/13
SAMOA Industrial, S.A. · Pol. Ind. Porceyo, I-14 · Camino del Fontán, 831 · 33392 - Gijón - Spain · Tel.: +34 985 381 488 · www.samoaindustrial.com

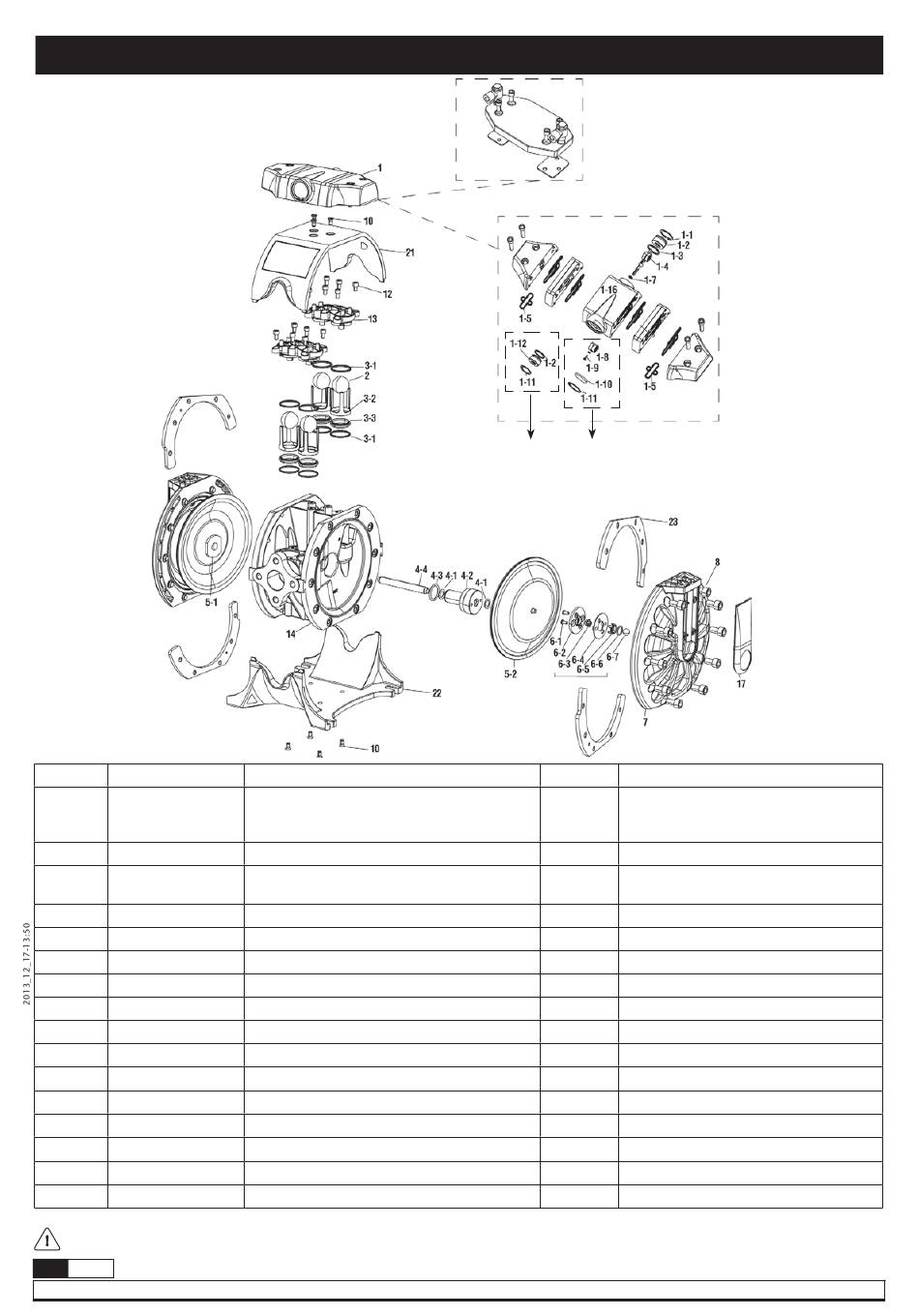

Composite body pump parts
Externally
controlled
Description
Directional valve
Balls
Ball check seats / O-rings /
Ball guides
Bushing / Seal / Push rod
Diaphragms
Air sensor
Diaphragm cover
Diaphragm cover bolts
Diaphragm cover nuts
Diaphragm cover washers
Valves caps
Body
Cover
Upper shield
Lower shield
Shield attachment
Normal
Driven
exhaust
exhaust
Qty.
Normal exhaust
1 Options: Driven exhaust
Externally controlled
-
-
-
-
- Not available with externally controlled models
2
20
7
12
2
1
2
1
1
4
Directional valve is sold as
kit. Assembled and verified in
Samoa facilities.
Notes
(Not sold as a kit)
(Not sold as a kit)
(Not sold as a kit)
(Not sold as a kit)
(Not sold as a kit)
(Not sold as a kit)
(Not sold as a kit)
(Not sold as a kit)
(Not sold as a kit)
*Only for composite
